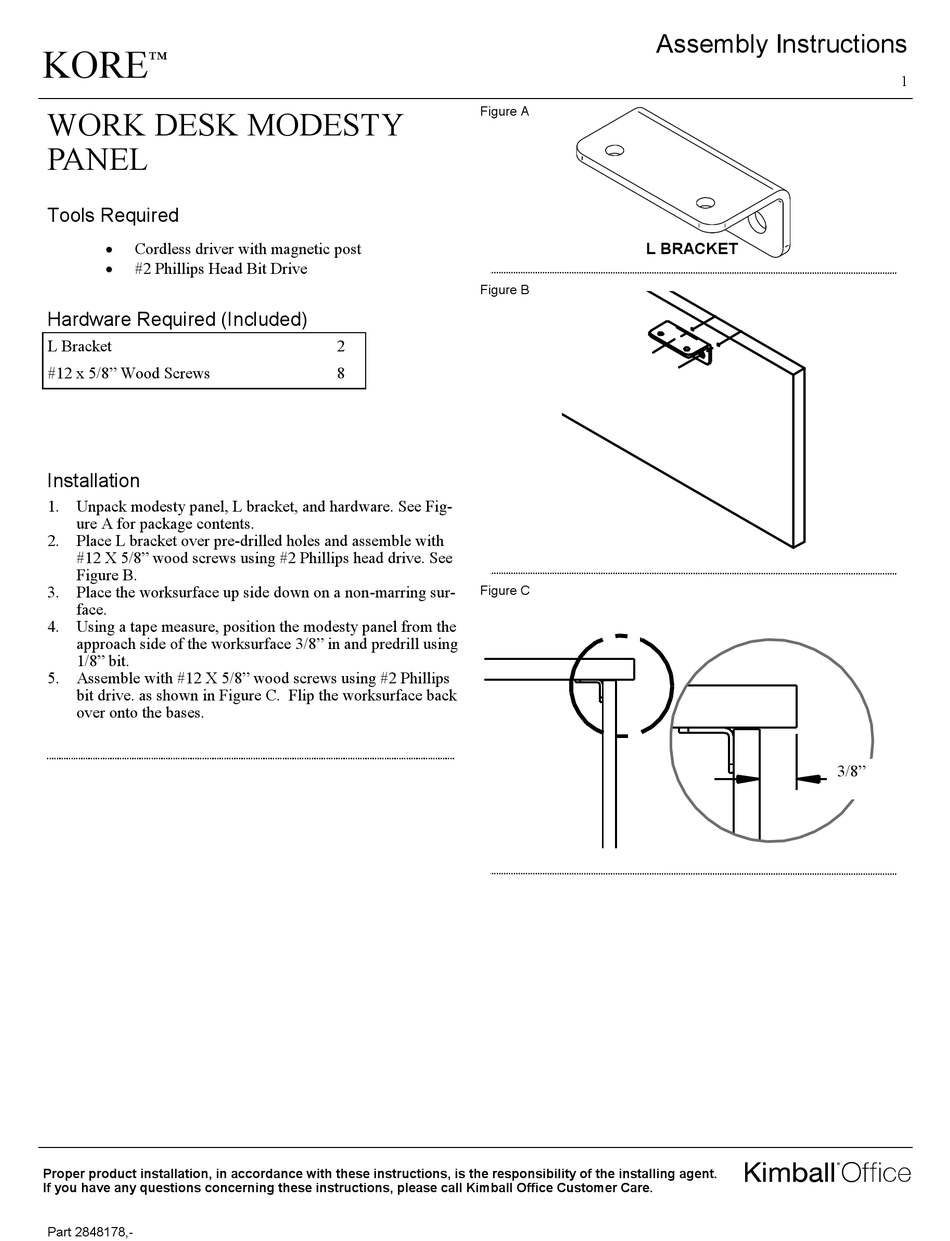

KORE
™
WORK DESK MODESTY
PANEL
Cordless driver with magnetic post
#2 Phillips Head Bit Drive
L Bracket
#12 x 5/8" Wood Screws
1.
Unpack modesty panel, L bracket, and hardware. See Fig-
ure A for package contents.
2.
Place L bracket over pre-drilled holes and assemble with
#12 X 5/8" wood screws using #2 Phillips head drive. See
Figure B.
3.
Place the worksurface up side down on a non-marring sur-
face.
4.
Using a tape measure, position the modesty panel from the
approach side of the worksurface 3/8" in and predrill using
1/8" bit.
5.
Assemble with #12 X 5/8" wood screws using #2 Phillips
bit drive. as shown in Figure C. Flip the worksurface back
over onto the bases.
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part 2848178,-
Figure A
Figure B
2
8
Figure C
Assembly Instructions
L BRACKET
1
1"
3/8"
