Kimball Office Interworks EQ Assembly Instructions

Interworks

Stackable Panel

Tools Required

Level, Screwgun with #2 Magnetic Phillips Bit (2

Installation

For stackable panels two people are recommended. Base panel top cap will be moved on top of assembled stackable panel. In track
of base panel, insert set of mounting brackets, (note proper orientation of brackets). Connection bolts join base panel and stackable
panel securely.
Step 1
Prep Support Panel
• Remove top cap from base panel.
• Remove panel hinges from stackable panel. (Detail A)
• Use screwdriver to spread apart top channel and insert mounting brackets into channel. Center tab on bracket against inside edge of cable slot on
channel frame. Fasten brackets to channel frame with screwgun and self tapping screws.(Detail B)
Connecting
Bolts
Self Tapping
Screws
Lower Mounting
Bracket w/Threaded
Insert
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 2041383 Revision C-10
® EQ
1 ⁄ " minimum long),
2
3 ⁄ " Socket or Wrench
8

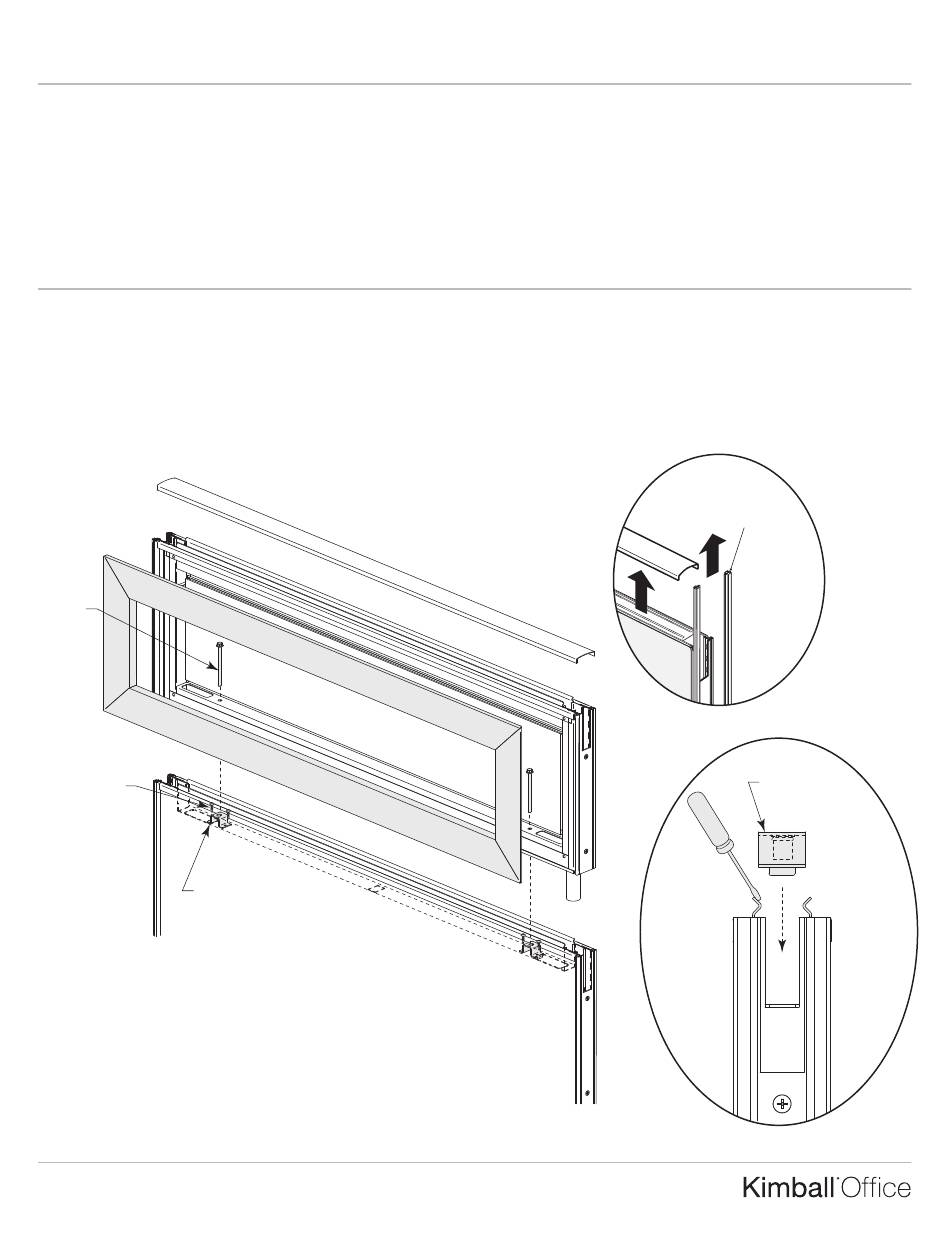

Detail A
Detail B
Assembly Instructions
Page 1 of 3
Stackable
Panel Hinges
Lower Mounting
Bracket w/Threaded
Insert
