Kimball Office Villa Assembly Instructions

Villa

™

Ganging Bracket

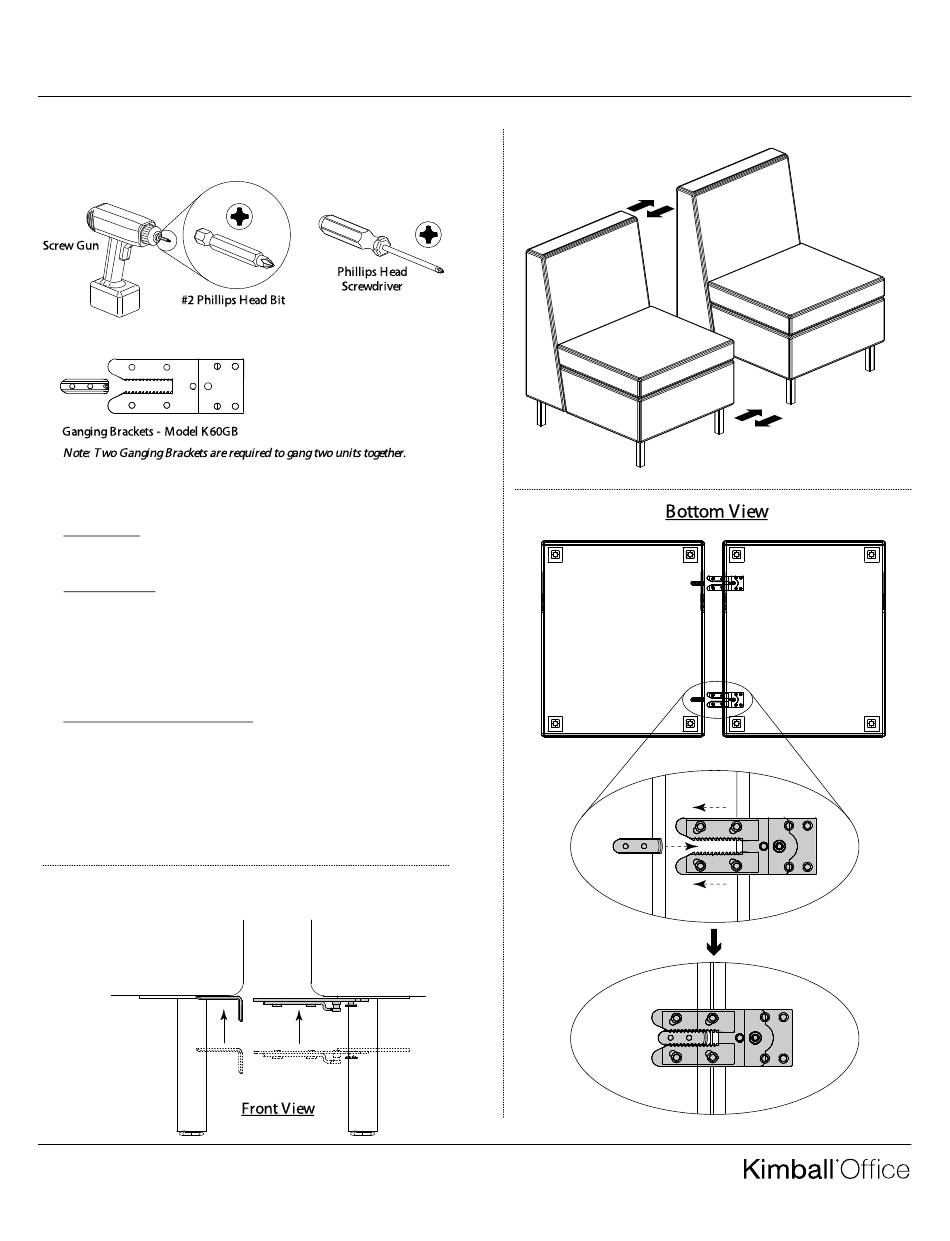

1. Each side of every Villa unit must use two ganging brackets.

2. Villa Youth: Whenever possible, each one or two seat Villa

Youth unit should have at least one side with the larger 'teeth'

ganging bracket installed on that unit.

3. Ganging Villa: Place one ganging bracket set each at the front

most and rear most predrilled holes found on the underside of

each Villa unit. For the large ganging bracket, remove all four

screws and reuse them to attach the bracket. The smaller brack-

et is to be placed on the connecting Villa unit by removing two

screws from the corresponding set of predrilled holes and plac-

ing the bracket in the center two holes. See Bottom View.

4. Ganging Villa to Villa Youth: Attach the ganging brackets to the

Villa Youth unit per step two and three. For adult Villa units,

use the predrilled middle set of holes. These holes align with

Villa Youth and attach the other part of the ganging bracket. If

your adult Villa unit doesn't have the middle predrilled holes,

then attach the bracket by aligning it with Villa Youth holes and

driving the screws found in the front set of holes.(see page two)

Figure A

Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.

If you have any questions concerning these instructions, please call Kimball Office Customer Care.
