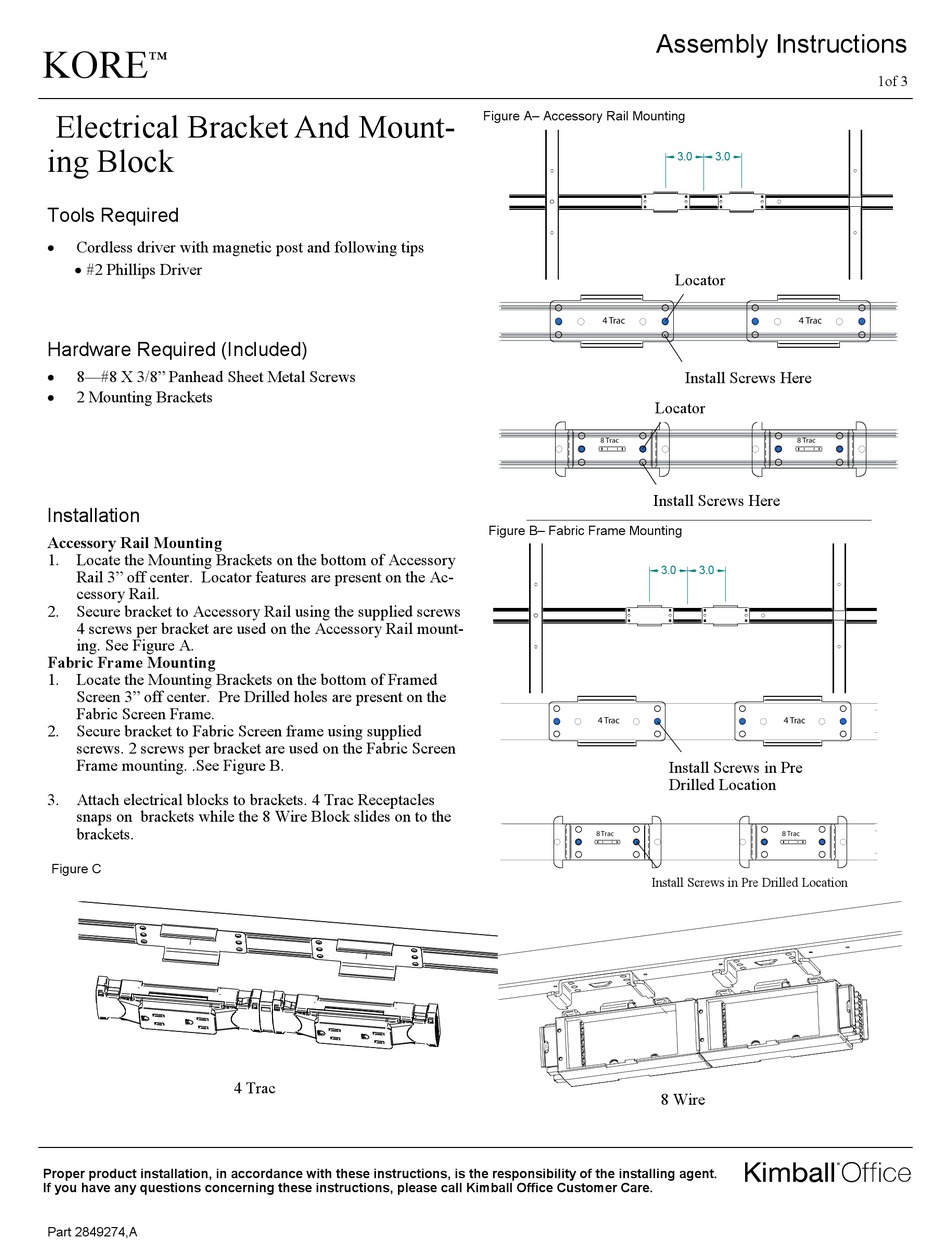

Kimball Office KORE Assembly Instructions

KORE
™
Electrical Bracket And Mount-
ing Block

Tools Required


Cordless driver with magnetic post and following tips
 #2 Phillips Driver

Hardware Required (Included)


8—#8 X 3/8" Panhead Sheet Metal Screws

2 Mounting Brackets
Installation
Accessory Rail Mounting
1. Locate the Mounting Brackets on the bottom of Accessory
Rail 3" off center. Locator features are present on the Ac-
cessory Rail.
2. Secure bracket to Accessory Rail using the supplied screws
4 screws per bracket are used on the Accessory Rail mount-
ing. See Figure A.
Fabric Frame Mounting
1. Locate the Mounting Brackets on the bottom of Framed
Screen 3" off center. Pre Drilled holes are present on the
Fabric Screen Frame.
2. Secure bracket to Fabric Screen frame using supplied
screws. 2 screws per bracket are used on the Fabric Screen
Frame mounting. .See Figure B.
3. Attach electrical blocks to brackets. 4 Trac Receptacles
snaps on brackets while the 8 Wire Block slides on to the
brackets.
Figure C
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part 2849274,A
4 Trac
Assembly Instructions
Figure A– Accessory Rail Mounting
Locator
Install Screws Here
Figure B– Fabric Frame Mounting
3.0
Install Screws in Pre Drilled Location
8 Wire
3.0 3.0
Locator
Install Screws Here
3.0
Install Screws in Pre
Drilled Location
1of 3
