Kimball Office Casegoods Priority Assembly Instructions

Advertisement

Priority
Support Panel for Desks
and Credenzas

Tools Required

Screwgun
#2 Phillips Head Bit

Package Contents

#8 x
3
" Panhead Screws
4
EURO Screws

Installation

1. The single pedestal end support is used to support a top
when a return or bridge top will gang perpendicular to the
primary worksurface. (Figure A).
2. The support panels have pilot holes to be used to locate
the L brackets. Attach the L brackets to the panels using
the EURO screws provided. (Figures B and C).
3. Locate, mark and attach the L brackets to the back panel
using the #8 x
3
" panhead screws provided flush to top
4
edge and to dimension as shown. (Figure D).

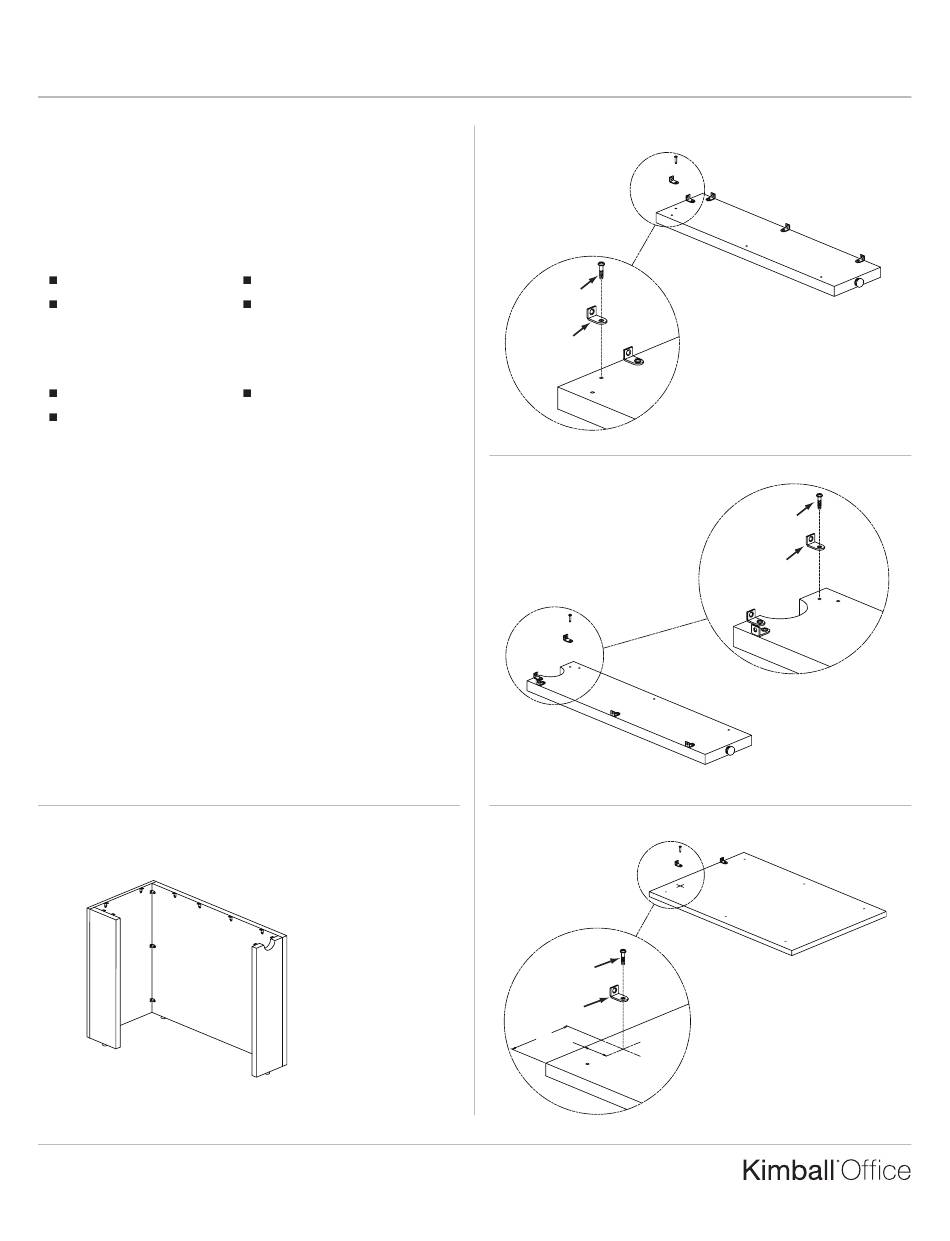

Figure A
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 2008518 Revision A-06
Tape Measure
Pencil
L Brackets
Casegoods Assembly Instructions
Figure B
EURO Screw
L Bracket
Figure C
Figure D
#8 x
3
"
4
L Bracket
4
1
"
4
23
"
32
Page 1 of 2
EURO Screw
L Bracket
