Deltech Fitness DF9800 Assembly Manual

Flat incline decline bench
Hide thumbs Also See for DF9800:
Table of Contents

Advertisement

Quick Links

Download this manual

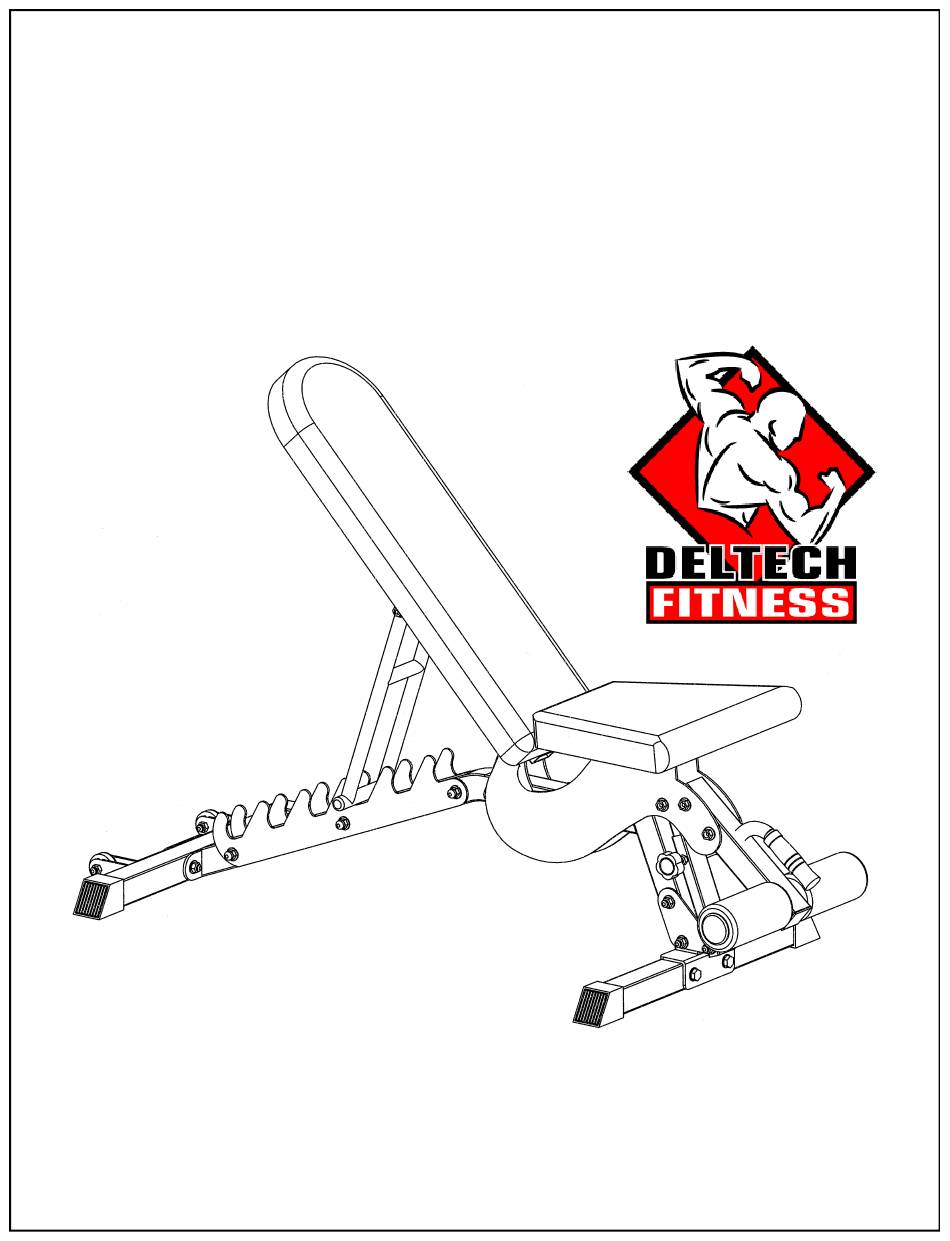

DF9800
FLAT INCLINE DECLINE
BENCH
Assembly Manual
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF9800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deltech Fitness DF9800

Summary of Contents for Deltech Fitness DF9800

  • Page 1 DF9800 FLAT INCLINE DECLINE BENCH Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 2: Box Contents

    BOX CONTENTS REAR FOOT FRONT FOOT FRAME QTY 1 QTY 1 QTY 1 BACKREST MOUNT LEG HOLDER TUBE QTY 1 QTY 1 SEAT ADJUSTMENT TELESCOPING BASE BASE QTY 1 QTY 1...
  • Page 3 BOX CONTENTS ROLLER TUBE RH SEAT FLANGE LH SEAT FLANGE QTY 1 QTY 1 QTY 1 CLAMP PLATE ADJUSTMENT FLANGE QTY 2 SEAT PAD QTY 2 QTY 1 BACKREST PAD ROLLER PADS QTY 1 QTY 2...
  • Page 4 M12 X 50MM BOLT MUSHROOM CAP TIGHTEN DOWN WHEEL QTY 2 QTY 2 KNOB QTY 2 QTY 1 HANDLE GRIP QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 5: Safety Notice

    SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE RISK OF INJURY CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.

  • Page 6: Frame Assembly

    FRAME ASSEMBLY TOOLS REQUIRED: (NOTE: THE NUTS USED ON THIS BENCH ARE METRIC WRENCHES OR SOCKET SET LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC Some components may be pre-installed INSERT.) PLEASE SEE BACK PAGE FOR MORE INFORMATION from the factory START BY SLIDING RUBBER SHOES “HH”...

  • Page 7: Pivot Assembly

    PIVOT ASSEMBLY INSERT M12 X 70 BOLT “AA” THROUGH M12 WASHER “BB” AND RH SEAT FLANGE “J” AND LINE UP THE BOTTOM TUBE OF “F” BETWEEN THE FLANGES OF FRAME “C”. INSERT THE BOLT ALL THE WAY THROUGH AND HANG LH SEAT FLANGE “I”...

  • Page 8: Seat Pad Assembly

    SEAT PAD ASSEMBLY ATTACH THE SEAT PAD “O” TO THE SEAT FLANGES WITH THE M8 x 25MM BOLTS “EE” AND M8 WASHERS “FF”.
  • Page 9 TELESCOPING TUBE ASSEMBLY SLIDE TELESCOPING TUBE “H” INTO THE SEAT ADJUSTMENT BASE “G”. THE SIDE WITH MULTIPLE HOLES SHOULD FACE THE PULL PIN BARREL. SCREW IN THE PULL PIN “GG” INTO THE PULL PIN BARREL LOCATED ON “G”. SCREW TIGHTEN DOWN KNOB “II” INTO THE BUNG ON THE BOTTOM TUBE “G”.
  • Page 10 TELESCOPING TUBE INSTALLATION ATTACH THE TELESCOPING TUBE ASSEMBLY TO THE FLANGES ON THE BOTTOM OF THE FRAME WITH M12 x 70MM BOLT “AA”, M12 WASHER “BB”, AND M12 LOCKNUT “CC”. SWING THE TELESCOPING TUBE ASSEMBLY UP INTO THE SEAT FLANGES AND LINE IT UP WITH THE HOLE AS SHOWN.

  • Page 11: Back Rest Assembly

    BACK REST ASSEMBLY ATTACH BACKREST “P” TO THE BACKREST SUPPORT WITH THE M8 x 25MM BOLTS “EE” AND M8 WASHERS “FF” . SLIDE ROLLER TUBE “K” INTO LEG HOLDER TUBE “E”. SLIDE FOAM ROLLERS “Q” ONTO ROLLER TUBE “K” AND INSERT MUSHROOM CAPS “OO” ONTO THE ROLLER TUBE TO LOCK THE ROLLERS IN PLACE.
  • Page 12 THE LOCKNUT GUIDE IF YOUR WEIGHT EQUIPMENT FEELS WOBBLEY AND UNSAFE ALL DELTECH FITNESS IT COULD BE BECAUSE YOU DO PRODUCTS COME WITH NOT HAVE YOUR LOCKNUTS LOCKNUTS. LOCKNUTS ARE TIGHT ENOUGH. LOCKNUTS CAN NUTS WITH A SPECIAL PLASTIC NOT BE TIGHTENED ALL THE PIECE PRESSED INTO THE TOP WAY BY HAND.
