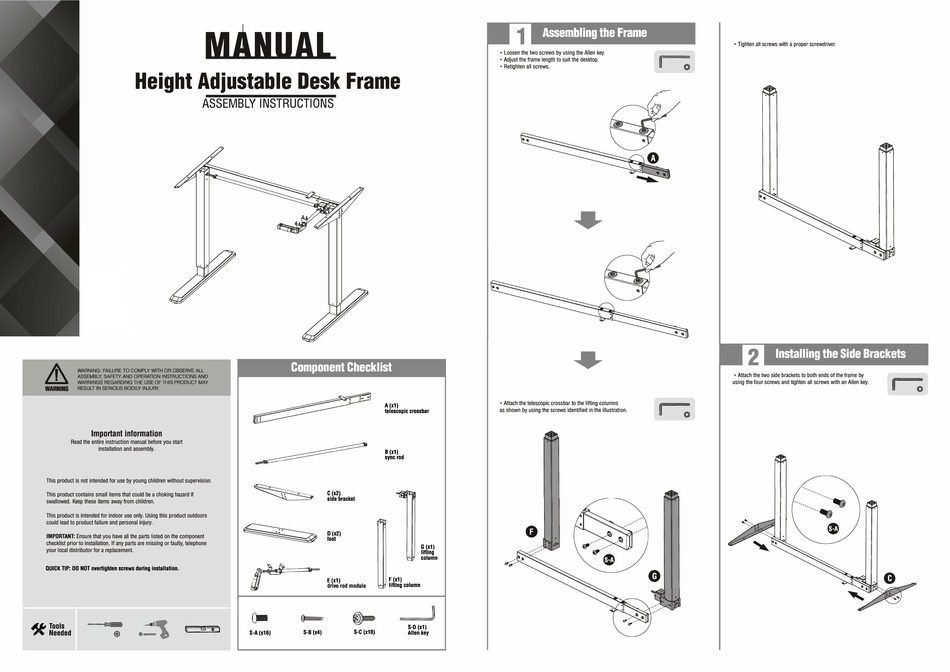

MANUAL

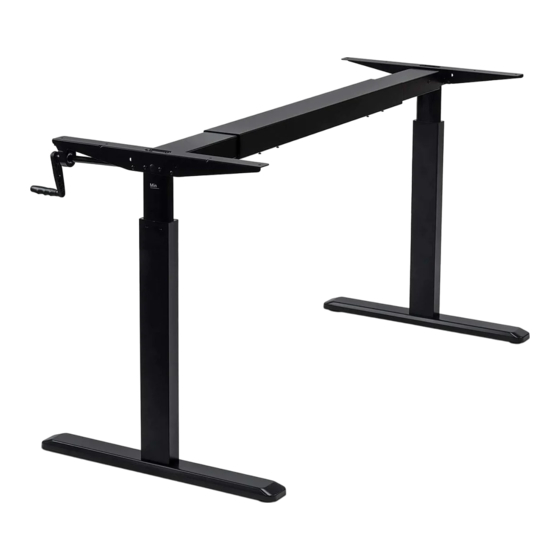

Height Adjustable Desk Frame
ASSEMBLY INSTRUCTIONS
WARNING: FAILURE TO COMPLY WITI-1 OR OBSERVE ALL
ASSEMBLY, SAFETY AND OPERATION INSTRUCTIONS AND
�
WARNINGS REGARDING THE USE OF THIS PRODUCT MAY
WAIIIINII
RESULT IN SERIOUS BODILY INJURY.

Important information

Read the entire instruction manual before you start
installation and assembly.
This product is not intended for use by young children without supervision.
This product contains small items that could be a choking hazard if
swallowed. Keep these items away from children.
This product is intended for indoor use only. Using this product outdoors
could lead to product failure and personal injury.
IMPORTANT: Ensure that you have all the parts listed on the component
checklist prior to installation. If any parts are missing or faulty, telephone
your local distributor for a replacement.
QUICK TIP: DD NOT overtighten screws during installation.
�,.61 Tools
6 #)
,� Needed

Component Checklist

A(x1)
telescopic crossbar
B (x1)
sync rod
.
-
C (x2)
�
side bracket
.
D (x2)
� foot
G (x1)
lilting
column
�==-
F (x1)
E (x1)
lifting column
drive rod module
0-
►
O)mmmm;,
S-D (x1)
S-B (x4) S-C (x10)
S-A (x16) Allen key
u
• Loosen the two screws by using the Allen key.
• Adjust the frame length to suit the desktop.
• Retighten all screws.
u
• Attach the telescopic crossbar to the lifting columns
as shown by using the screws identified in the illustration.
0
e
• Tighten all screws with a proper screwdriver.
• Attach the two side brackets to both ends of the frame by
using the four screws and tighten all screws with an Allen key.
