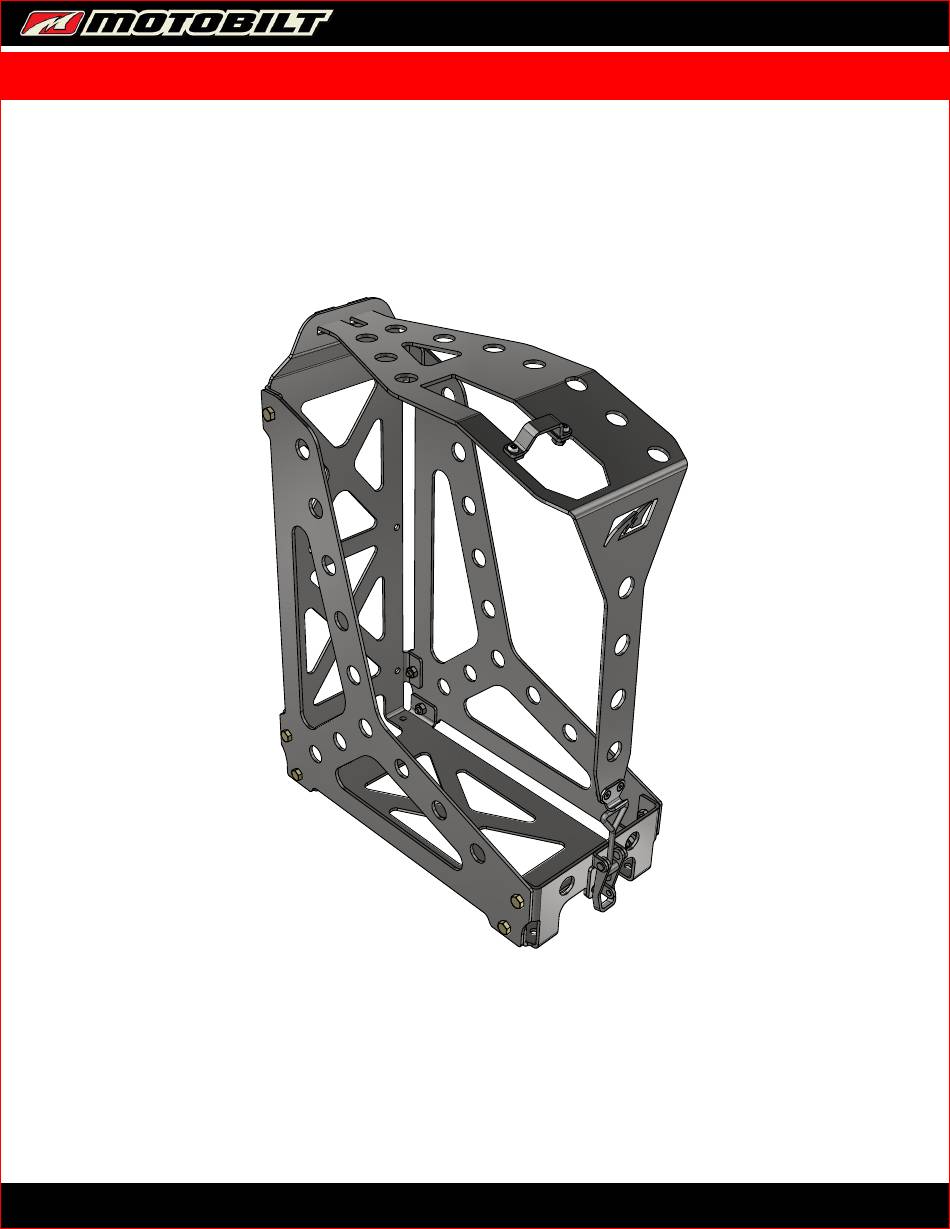

- Page 1 REV: 0 MB5525 - Assembly Instructions Jerry Can 5 Gal Mount JERRY CAN 5 GALLON MOUNT ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 REV: 0 MB5525 - Assembly Instructions Jerry Can 5 Gal Mount KIT COMPONENTS MB5525-03 Qty: 1 TOGGLE CLAMP Qty: 1 MB5525-02_MIR MB5525-02 TOGGLE CLAMP Qty: 1 Qty: 1 KEEPER MB5525-01 Qty: 1 Qty: 1 MB5525-04 MB5525-05 MB5525-06 Qty: 1 Qty: 1...
-
Page 3: Assembly - Base
REV: 0 MB5525 - Assembly Instructions Jerry Can 5 Gal Mount ASSEMBLY - BASE HEX BOLT NYLOCK THIN NUT 1/4"-20 x 5/8" MB5525-02 1/4"-20 MB5525-01 MB5525-02_MIR HEX BOLT 1/4"-20 x 5/8" HEX BOLT 1/4"-20 x 5/8" HEX BOLT NYLOCK THIN NUT HEX BOLT 1/4"-20 x 5/8"... - Page 4 REV: 0 MB5525 - Assembly Instructions Jerry Can 5 Gal Mount ASSEMBLY - LATCH MACHINE NUT #8-32 x 3/8" MB5525-03 MACHINE NUT #8-32 TOGGLE CLAMP KEEPER COUNTER SUNK MACHINE SCREW #8-32 x 3/8" COUNTER SUNK MB5525-01 MACHINE SCREW TOGGLE CLAMP #8-32 x 3/8"...
- Page 5 REV: 0 MB5525 - Assembly Instructions Jerry Can 5 Gal Mount ASSEMBLY - SCREW TYPE CAP BUTTON HEAD MACHINE SCREW #10-24 x 3/4" MB5525-05 MB5525-03 MB5526-06 NYLOCK NUT #10-24 motobilt.com | 334-219-2333...
- Page 6 REV: 0 MB5525 - Assembly Instructions Jerry Can 5 Gal Mount ASSEMBLY - LATCH TYPE CAP BUTTON HEAD MACHINE SCREW #10-24 x 1/2 MB5525-05 USE WITHOUT OPTIONAL SPOUT MB5525-03 NYLOCK NUT #10-24 motobilt.com | 334-219-2333...
- Page 7 REV: 0 MB5525 - Assembly Instructions Jerry Can 5 Gal Mount ASSEMBLY - LATCH TYPE CAP WITH OPTIONAL SPOUT BUTTON HEAD MACHINE SCREW #10-24 x 1/2" MB5525-04 MB5525-03 NYLOCK NUT #10-24 motobilt.com | 334-219-2333...
- Page 8 REV: 0 MB5525 - Assembly Instructions Jerry Can 5 Gal Mount ASSEMBLY SLOT SLIDE TABS INTO SLOT MB5525-03 MOUNT TOP MOUNT BASE motobilt.com | 334-219-2333...
- Page 9 REV: 0 MB5525 - Assembly Instructions Jerry Can 5 Gal Mount LINKING MULTIPLE ASSEMBLIES WHEN LINKING MULTIPLE MOUNTS TOGETHER USE ONE SIDE PLATE (MB5525-02 / MB5525-02_MIR) TO SHARE BETWEEN THE TWO ASSEMBLIES. BOLT MB5525-02 / MB5525-02_MIR IN BETWEEN THE TWO MB5525-01 PLATES AND FASTEN USING THE 1/4" HARDWARE FROM ONE OF THE ASSEMBLIES.
- Page 10 REV: 0 MB5525 - Assembly Instructions Jerry Can 5 Gal Mount MOUNTING 5 1/2 BACK 5 1/8 MOUNTING HOLES BOTTOM motobilt.com | 334-219-2333...
-
Page 11: Internal Dimensions
REV: 0 MB5525 - Assembly Instructions Jerry Can 5 Gal Mount INTERNAL DIMENSIONS 13 7/8 13 7/8 motobilt.com | 334-219-2333...
