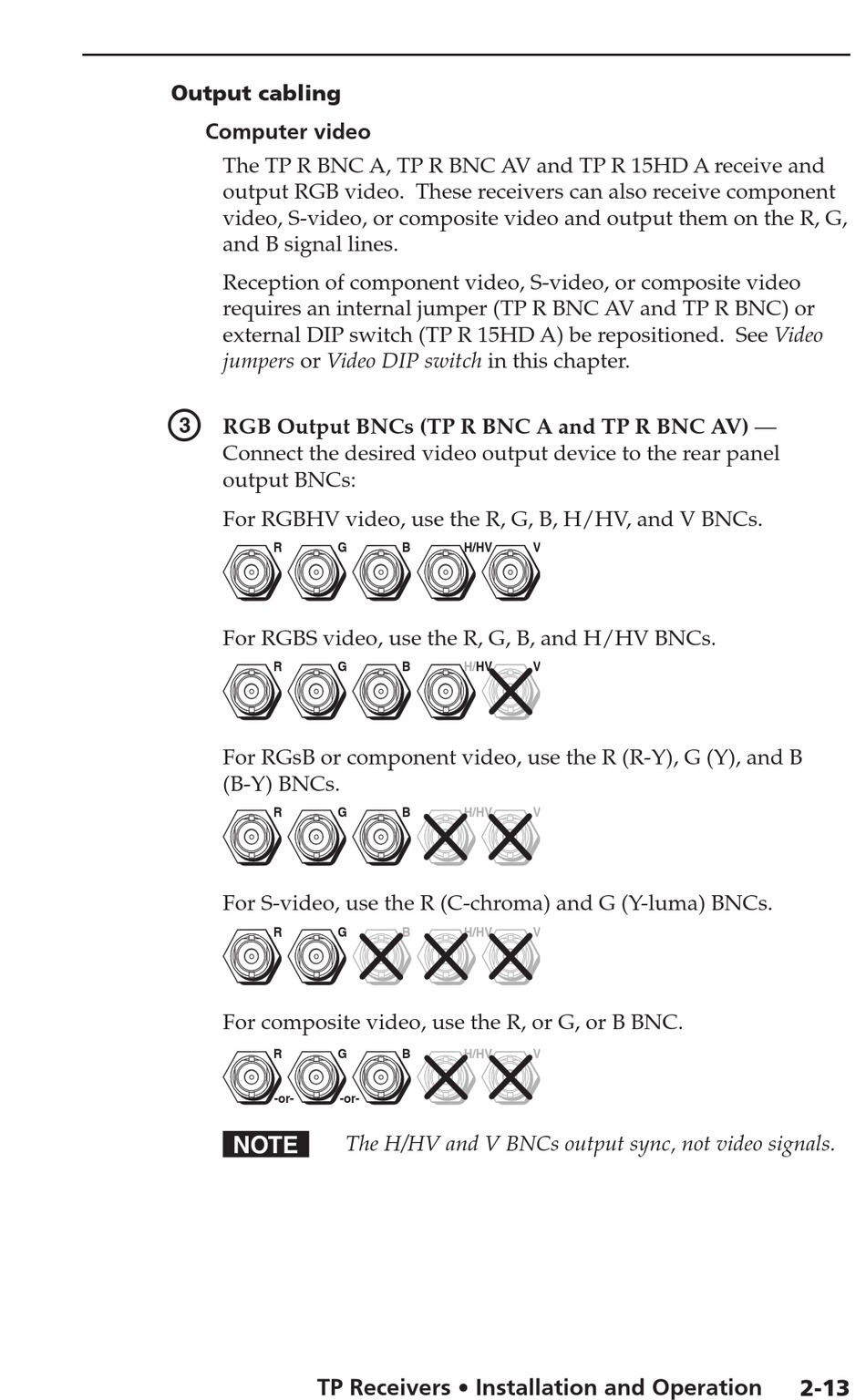

Output cabling

Computer video

The TP R BNC A, TP R BNC AV and TP R 15HD A receive and
output RGB video. These receivers can also receive component
video, S-video, or composite video and output them on the R, G,
and B signal lines.
Reception of component video, S-video, or composite video
requires an internal jumper (TP R BNC AV and TP R BNC) or
external DIP switch (TP R 15HD A) be repositioned. See Video
jumpers or Video DIP switch in this chapter.
c
RGB Output BNCs (TP R BNC A and TP R BNC AV) —
Connect the desired video output device to the rear panel
output BNCs:
For RGBHV video, use the R, G, B, H/HV, and V BNCs.
R
For RGBS video, use the R, G, B, and H/HV BNCs.
R
For RGsB or component video, use the R (R-Y), G (Y), and B
(B-Y) BNCs.
R
For S-video, use the R (C-chroma) and G (Y-luma) BNCs.
R
For composite video, use the R, or G, or B BNC.
R
-or-
N
TP Receivers • Installation and Operation
G B H/HV
G B H/HV
G B H/HV
G B H/HV
G B H/HV
-or-
The H/HV and V BNCs output sync, not video signals.
V
V
V
V
V
