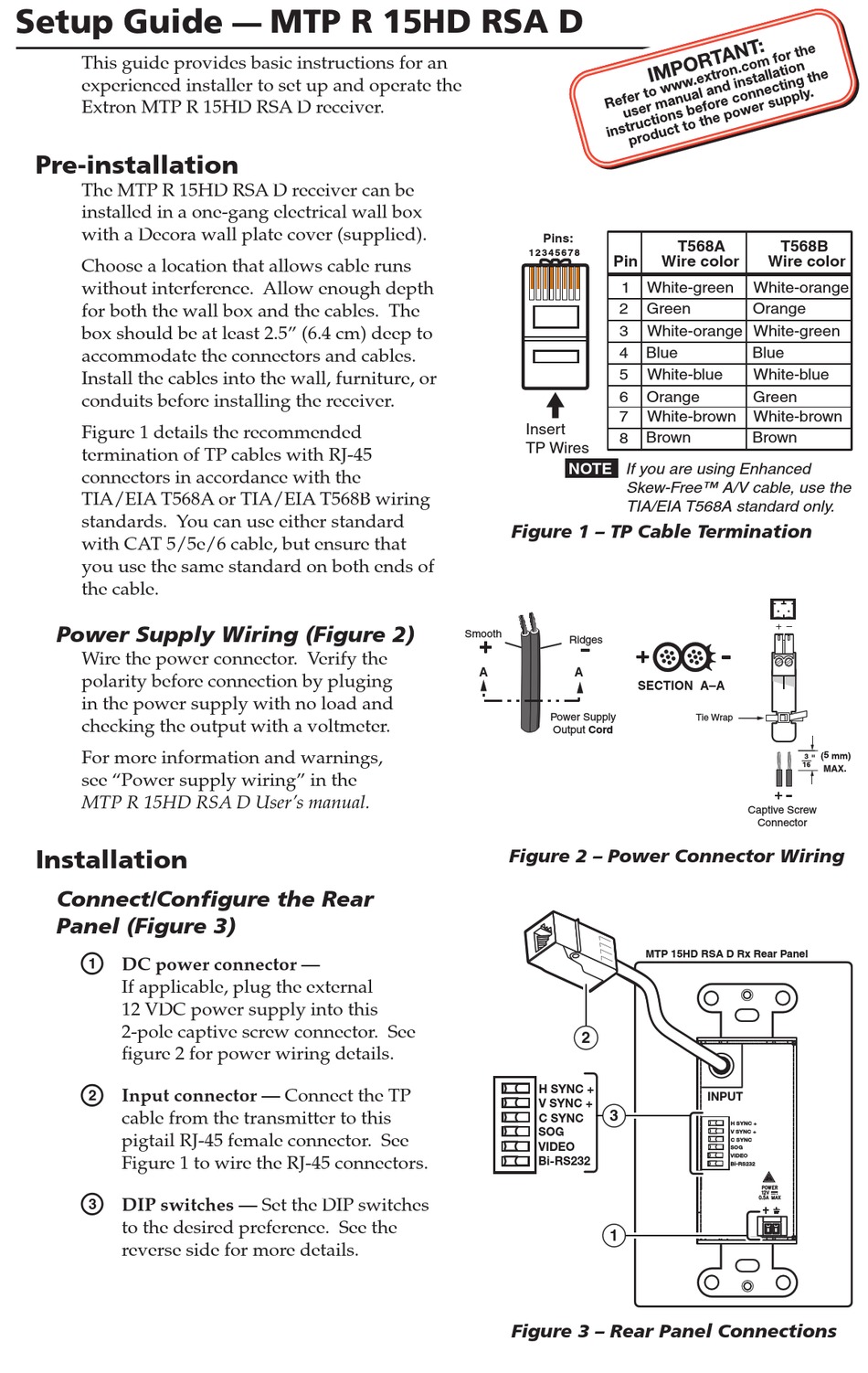

Setup Guide
This guide provides basic instructions for an
experienced installer to set up and operate the

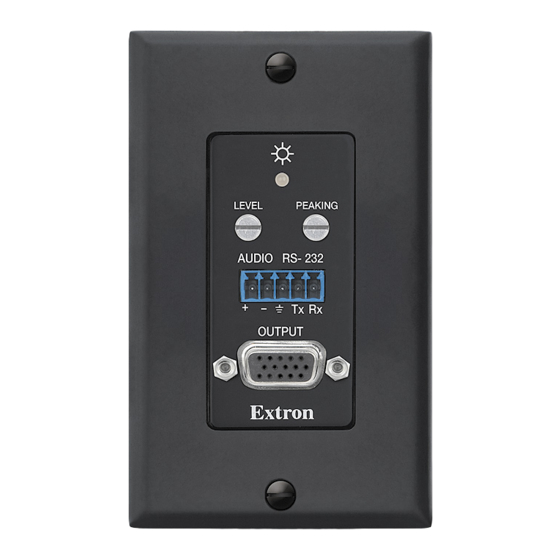

Extron MTP R 15HD RSA D receiver.
Pre-installation
The MTP R 15HD RSA D receiver can be
installed in a one-gang electrical wall box
with a Decora wall plate cover (supplied).
Choose a location that allows cable runs
without interference. Allow enough depth
for both the wall box and the cables. The
box should be at least 2.5" (6.4 cm) deep to
accommodate the connectors and cables.
Install the cables into the wall, furniture, or
conduits before installing the receiver.
Figure 1 details the recommended
termination of TP cables with RJ-45
connectors in accordance with the
TIA/EIA T568A or TIA/EIA T568B wiring
standards. You can use either standard
with CAT 5/5e/6 cable, but ensure that
you use the same standard on both ends of
the cable.
Power Supply Wiring (Figure 2)
Wire the power connector. Verify the
polarity before connection by pluging
in the power supply with no load and
checking the output with a voltmeter.
For more information and warnings,
see "Power supply wiring" in the
MTP R 15HD RSA D User's manual.
Installation
Connect/Configure the Rear
Panel (Figure 3)
a
DC power connector —
If applicable, plug the external
12 VDC power supply into this
2-pole captive screw connector. See
figure 2 for power wiring details.
b
Input connector — Connect the TP
cable from the transmitter to this
pigtail RJ-45 female connector. See
Figure 1 to wire the RJ-45 connectors.
c
DIP switches — Set the DIP switches
to the desired preference. See the
reverse side for more details.
MTP R 15HD RSA D
—
Pins:
1 2 3 4 5 6 7 8
Pin
1
2
3
4
5
6
7
Insert
8
TP Wires
NOTE If you are using Enhanced
Skew-Free™ A/V cable, use the
TIA/EIA T568A standard only.
Figure 1 – TP Cable Termination
Smooth
Ridges
A A
Power Supply
Output Cord
Figure 2 – Power Connector Wiring
2
H SYNC +
V SYNC +
3
C SYNC
SOG
VIDEO
Bi-RS232
1
Figure 3 – Rear Panel Connections
T568A T568B
Wire color Wire color
White-green White-orange
Green Orange
White-orange White-green
Blue Blue
White-blue White-blue
Orange Green
White-brown White-brown
Brown Brown
SECTION A–A
Tie Wrap
Captive Screw
Connector
MTP 15HD RSA D Rx Rear Panel
INPUT
H SYNC +
V SYNC +
C SYNC
SOG
VIDEO
Bi-RS232
5
3
