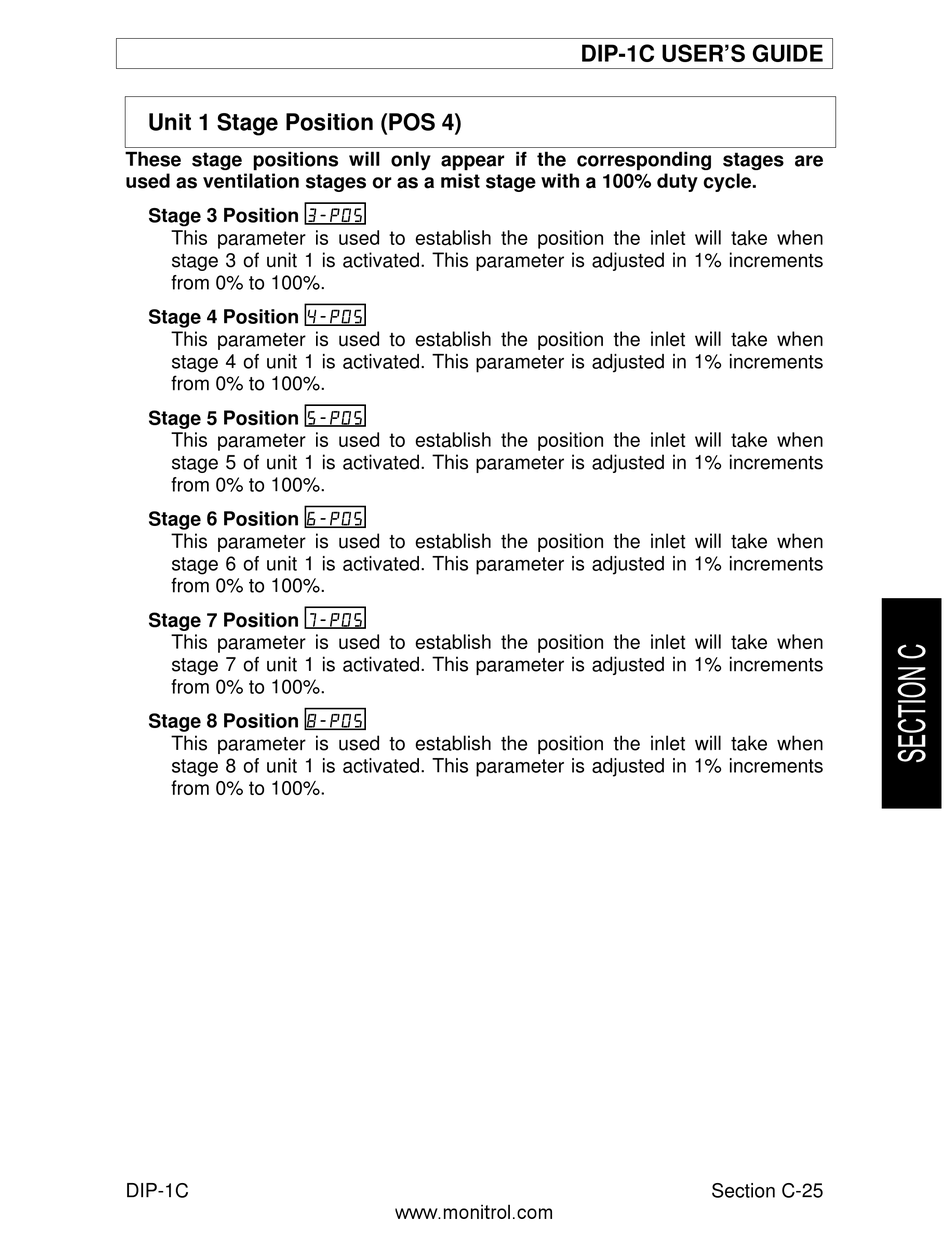

Unit 1 Stage Position (POS 4)

These stage positions will only appear if the corresponding stages are
used as ventilation stages or as a mist stage with a 100% duty cycle.
Stage 3 Position 3-POS
This parameter is used to establish the position the inlet will take when
stage 3 of unit 1 is activated. This parameter is adjusted in 1% increments
from 0% to 100%.
Stage 4 Position 4-POS
This parameter is used to establish the position the inlet will take when
stage 4 of unit 1 is activated. This parameter is adjusted in 1% increments
from 0% to 100%.
Stage 5 Position 5-POS
This parameter is used to establish the position the inlet will take when
stage 5 of unit 1 is activated. This parameter is adjusted in 1% increments
from 0% to 100%.
Stage 6 Position 6-POS
This parameter is used to establish the position the inlet will take when
stage 6 of unit 1 is activated. This parameter is adjusted in 1% increments
from 0% to 100%.
Stage 7 Position 7-POS
This parameter is used to establish the position the inlet will take when
stage 7 of unit 1 is activated. This parameter is adjusted in 1% increments
from 0% to 100%.
Stage 8 Position 8-POS
This parameter is used to establish the position the inlet will take when
stage 8 of unit 1 is activated. This parameter is adjusted in 1% increments
from 0% to 100%.
