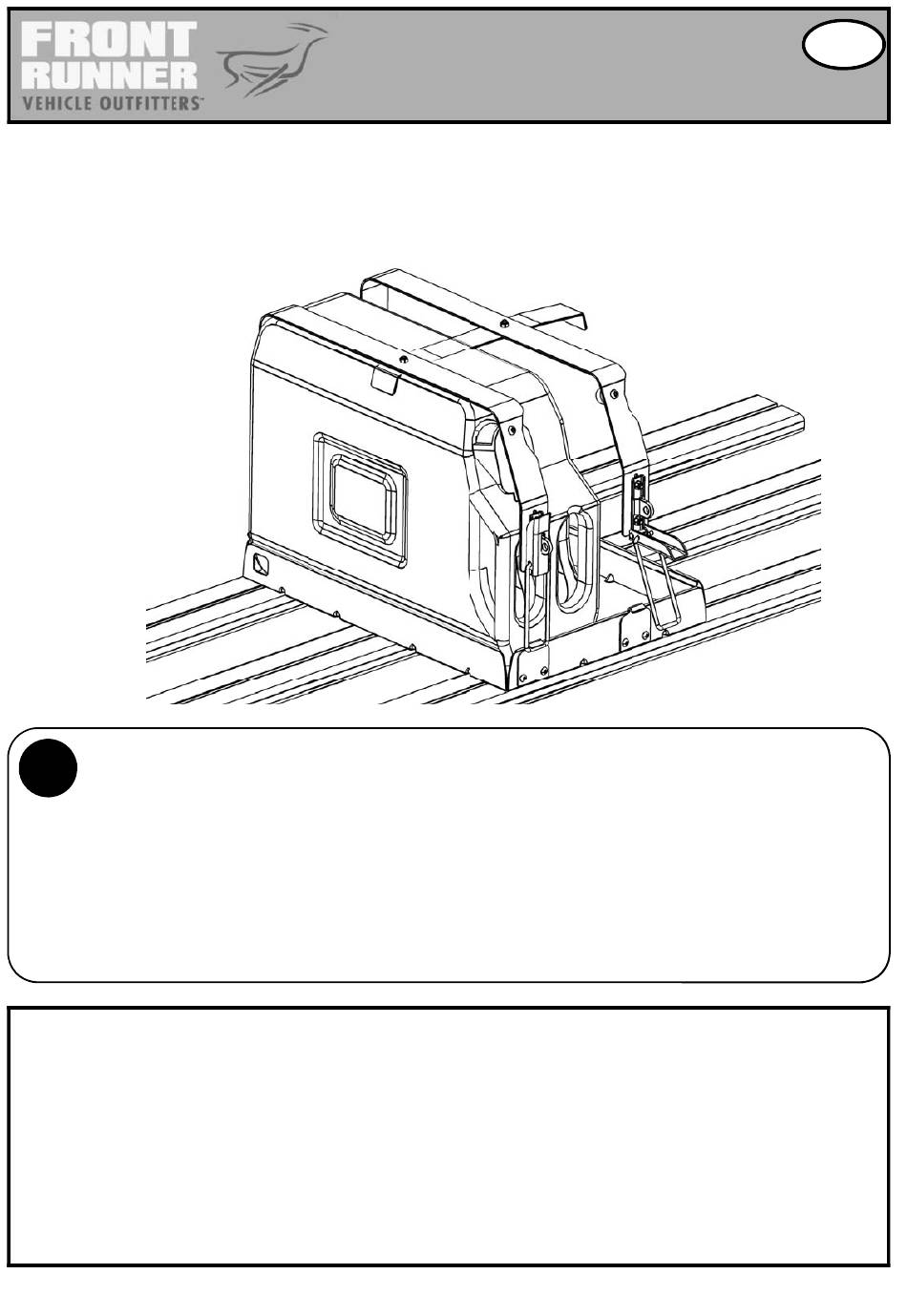

Front Runner JCH004 Quick Start Manual

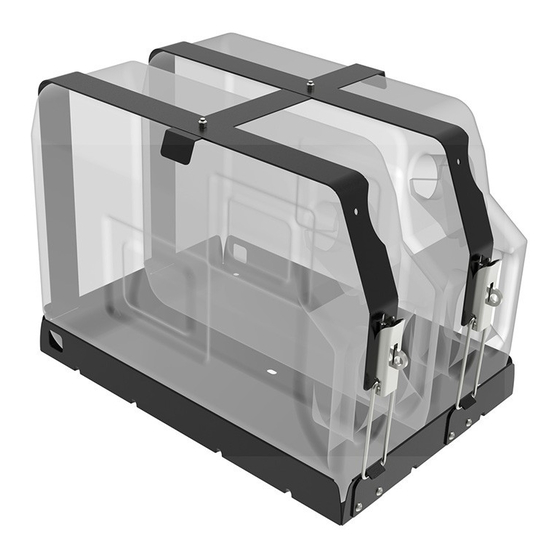

Double jerry can holder

GET ORGANIZED

you will need:

a vehicle with a rack

two 8 mm wrenches

a 3 mm Allen wrench

a 4 mm Allen wrench

a 5 mm Allen wrench

IT IS CRITICAL THAT ALL FRONT RUNNER RACKS AND ACCESSORIES BE PROPERLY AND SECURELY

ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT,

AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR TO OTHERS. YOU ARE

RESPONSIBLE FOR SECURING THE RACKS AND ACCESSORIES TO YOUR CAR, CHECKING THE

ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT,

WEAR, AND DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND

CAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU

DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL

EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU

SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER SUCH AS A QUALIFIED

GARAGE OR AUTO BODY SHOP.

DOUBLE JERRY CAN HOLDER

IMPORTANT WARNING!

INSTALL TIME: 0.5 hours

...CONT'D

ENG

JCH004

Table of Contents

Do you have a question about the JCH004 and is the answer not in the manual?

Page 1 ...CONT'D IMPORTANT WARNING! IT IS CRITICAL THAT ALL FRONT RUNNER RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR TO OTHERS. YOU ARE...
Page 2 GET ORGANISED ...CONT'D Here is what you are looking at: Item # Quantity DESCRIPTION JERRY HOLDER BASE STRAP 1 STRAP 2 HEX NUT, NYLOC; M5 BUTTON HD SOCKET SCREW; M8x12 SCHNORR WASHER HALF HEX NUT; M8 LATCH KEEPER CATCH TOP BUTTON HD SOCKET SCREW; M5x10 HEX HEAD BOLT; M5x12 FLAT WASHER;...
Page 3 ASSEMBLE STRAPS Attach the straps together and the catches to the straps using the 8mm wrenches. Item # Quantity DESCRIPTION STRAP 1 STRAP 2 HEX NUT, NYLOC; M5 CATCH TOP HEX HEAD BOLT; M5x12 FLAT WASHER; M5 NOTE the 2 bolts on strap 2 (Item 2) are offset to one side.
Page 4 JERRY HOLDER BASE BUTTON HD SOCKET SCREW; Slide the M8 flat nuts(Item 4) into the T-slot M8x12 of the Front Runner rack and slide to the SCHNORR WASHER desired position. Orient the base so that the HALF HEX NUT; M8 catches face towards the outside of the vehicle for easy access.
Page 5 For the safety of your rack system and your vehicle, please obey all traffic laws and adjust speed accordingly to the load being carried and the conditions of the road. Cargo will effect the vehicles handling. Modifying your vehicle involves some risks and may void certain aspects of your vehicle's warranty. 2011 Front Runner Outfitters, Inc.
