ENG
front runner

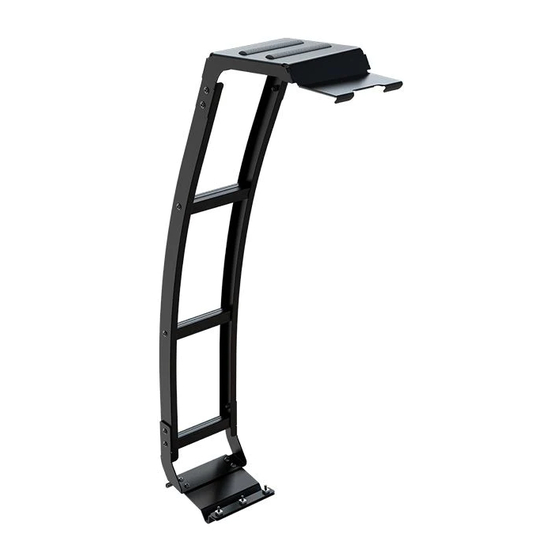

TOYOTA 4RUNNER LADDER
LATF002
READ ME !
Thank you for purchasing a Front Runner Toyota 4Runner Ladder.
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the included components.
Refer to Page 2 for a list of all the components, quantities and tools required.
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please call us if you have any questions about the installation of this product.
LATF002_REV_A00
1
© 2022 FRONT RUNNER VEHICLE OUTFITTERS

Advertisement

loading
Need help?

Need help?

Do you have a question about the LATF002 and is the answer not in the manual?

Questions and answers

Related Manuals for Front Runner LATF002

Summary of Contents for Front Runner LATF002

  • Page 1 FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL. NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

  • Page 2: Tools Needed

    M6 x 25 Button Head Bolt M8 x 20 Button Head Bolt M8 x 16 x 1.6 Flat Washer 10mm Masking M6 Cage Nut Marker 13mm Tape M8 Nyoc Nut Denatured Alcohol FIGURE 1.1 LATF002_REV_A00 © 2022 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 3 Place M6 Nut Caps (Item 18) over all Nyloc Nuts. Measuree 100mm from the inside edge of the spoiler trim, along the hatch edge and mark with masking tape (A) as shown. LATF002_REV_A00 © 2022 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 4 Making sure it is level, mark the Bottom position of the ladder with masking tape as shown (A). Remove the Ladder assembly. Open the Rear hatch and remove the left hand side handle as shown. LATF002_REV_A00 © 2022 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 5 4mm Pilot hole and open up to 7mm. Anti- Rust Assemble the M6 Cage Nuts (Item 14) to the Bottom Inner Plate (Item 7) as shown. Slide the Bottom Inner Plate into the Door hatch as shown. LATF002_REV_A00 © 2022 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 6 2.12 Hook The Ladder assembly from 2.1 and 2.2 over the Top Mount Bracket (Item 5) as shown and loosly assemble using M8 Nyloc Nuts (Item 15). Do not Fully tighten yet. 13mm LATF002_REV_A00 © 2022 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 7 Congratulations! You did it. Take a step back and admire your work! INSTALL OTHER VEHICLE AND RACK ACCESSORIES Now's the time to visit your favorite Front Runner Dealer in person or online. Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam...
