Front Runner FAJK009 Fitting Instructions Manual

Front Runner FAJK009 Fitting Instructions Manual

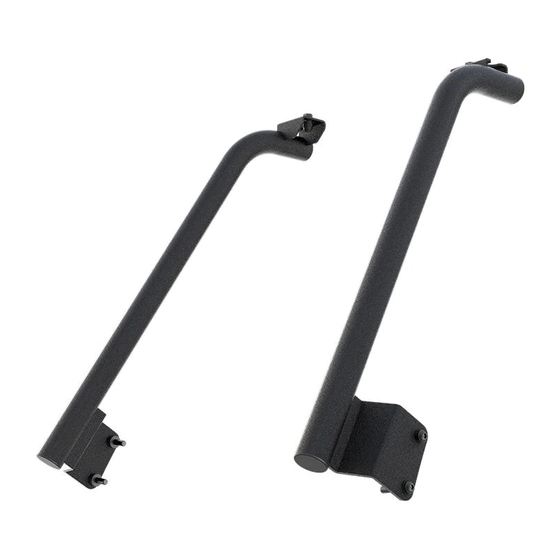

Jeep wrangler jk 2 door & 4 door (2007 - 2018) front pillar brackets

Advertisement

Quick Links

front runner
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
FAJK009_REV_A00
Jeep Wrangler JK 2 Door
& 4 Door (2007 - 2018)
Front Pillar Brackets
READ ME !
Thank you for purchasing Front Runner Jeep Wrangler JK Front Pillar Brackets.
Refer to Page 2 for a list of all the components, quantities and tools required.
IMPORTANT WARNING!
Please call us if you have any questions about the installation of this product.
1
FAJK009
© 2020 FRONT RUNNER VEHICLE OUTFITTERS
ENG
