IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

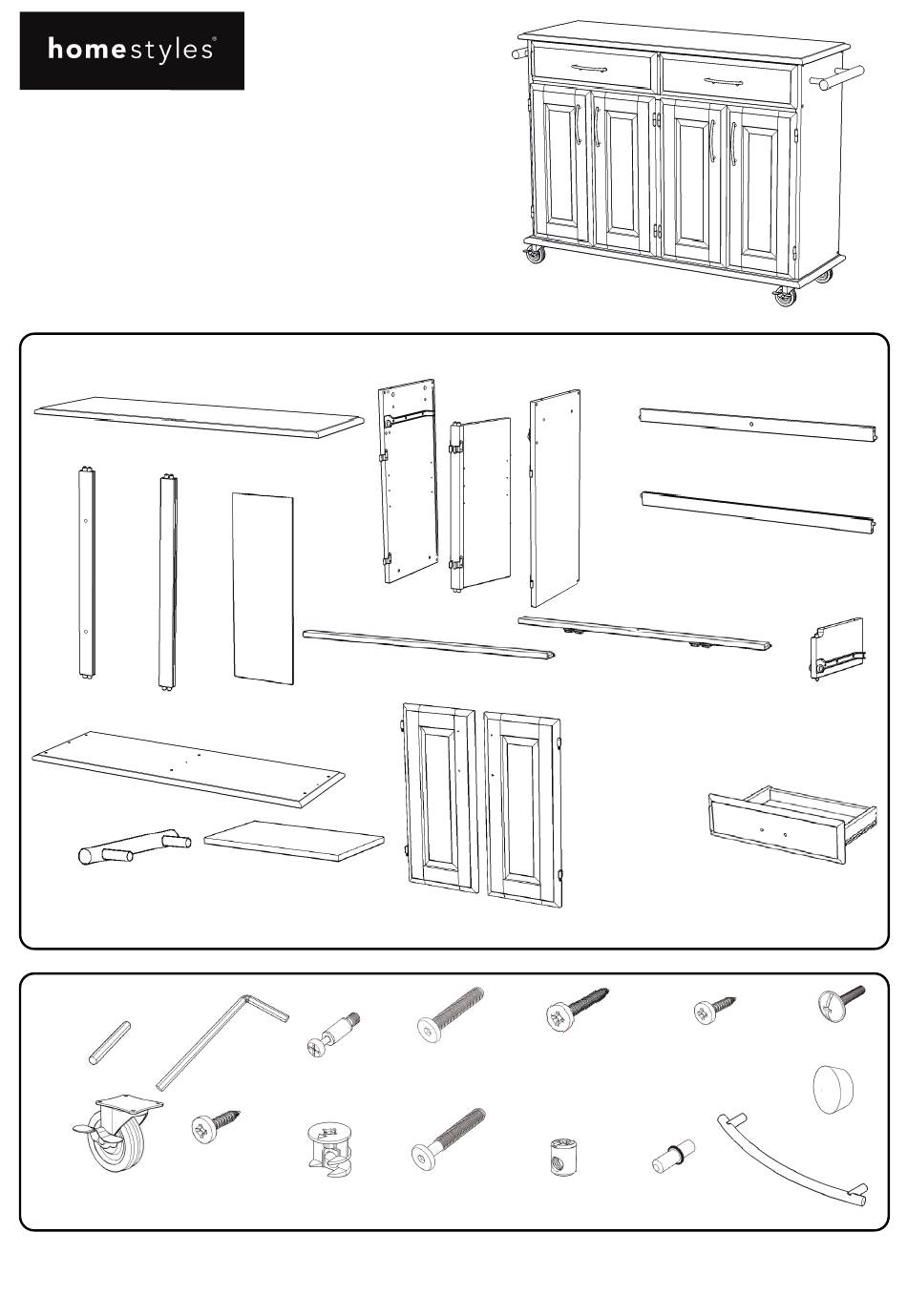

Part List
A.
Top
1 pc.
F.
G.
Back Piece
Back Piece
1 pc.
2 pcs.
L.
Base
1 pc.
M.
Side Bar
2 pcs.
Hardware List
Hex Wrench
Small Hex Wrench
1 pc.
1 pc.
Caster
M4x16
2 Locking
Wood Screw
2 Non-Locking
for Caster
4 pcs.
16 pcs. (+1 extra)
Tool(s) required for assembly:
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 4528 95
Kitchen Cart
B.
Side Panel
1 pc.
I.
Front Piece
H.
1 pc.
Back Panel
4 pcs.
O.
Door
2 pcs.
N.
Shelf
2 pcs.
M6x35
Head Cap Bolt (short)
Cam Lock Screw
12 pcs. (+1 extra)
6 pcs. (+1 extra)
M6x50
Cam Lock
Head Cap Bolt (long)
6 pcs. (+2 extra)
7 pcs. (+1 extra)
Phillips screwdriver
D.
Side Panel
1 pc.
C.
Middle Panel
1 pc.
P.
Door
2 pcs.
M3.5x25
Wood Screw (long)
16 pcs. (+1 extra)
Cross Dowel
7 pcs. (+1 extra)
888-680-7460, 877-831-0319
E1.
Back Stretcher
1 pc.
E2.
Back Stretcher
1 pc.
J.
Front Piece
K.
1 pc.
Divider
1 pc.
Q.
Drawer
2 pcs.
Refer to later page(s) of these
instructions for drawer assembly.
M4x25
Machine Screw
12 pcs.
M3.5x16
Wood Screw (short)
12 pcs. (+1 extra)
Wood Plug
9 pcs. (+1 extra)
Adjustable Pin
Pull Handle
8 pcs. (+1 extra)
6 pcs.
