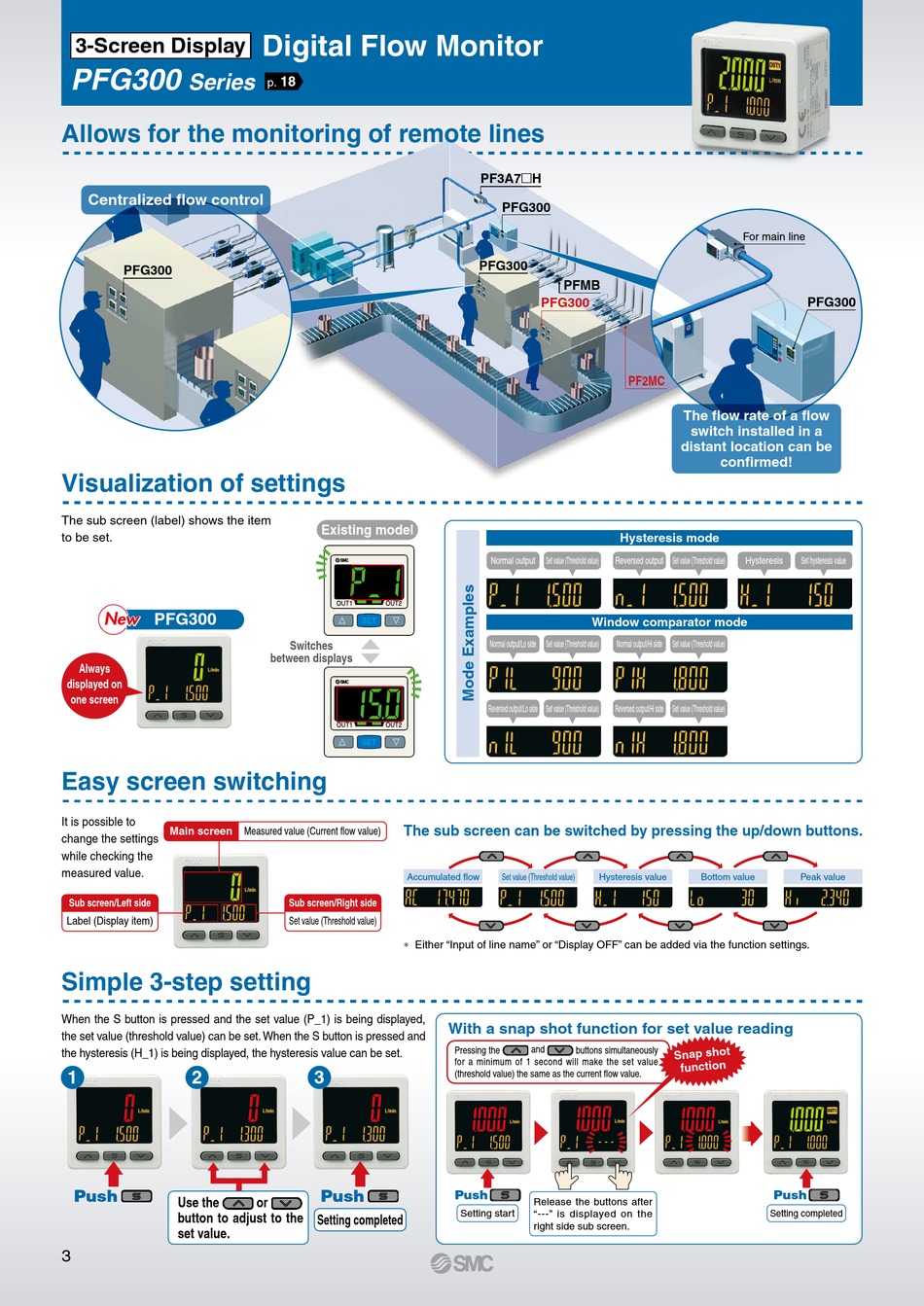

3-Screen Display
PFG300
Series
Allows for the monitoring of remote lines
Centralized flow control
PFG300
Visualization of settings
The sub screen (label) shows the item
to be set.
New New
PFG300
Always
displayed on
one screen
Easy screen switching
It is possible to
Main screen
change the settings
while checking the
measured value.
Sub screen/Left side
Label (Display item)
Simple 3-step setting
When the S button is pressed and the set value (P_1) is being displayed,
the set value (threshold value) can be set. When the S button is pressed and
the hysteresis (H_1) is being displayed, the hysteresis value can be set.
1 2
Push
Use the
button to adjust to the
set value.
3
Digital Flow Monitor
18
p.
Existing model
Switches
between displays
The sub screen can be switched by pressing the up/down buttons.
Measured value (Current flow value)
Accumulated flow
Sub screen/Right side
Set value (Threshold value)
* Either "Input of line name" or "Display OFF" can be added via the function settings.
3
Push
or
Setting completed
PF3A7H
PFG300
PFG300
PFMB
PFG300
Hysteresis mode
Normal output Set val u e (Threshol d val u e) Reversed output Set val u e (Threshol d val u e)
Window comparator mode
Normal output/Lo side Set val u e (Threshol d val u e) Normal output/Hi side Set val u e (Threshol d val u e)
Reversed output/Lo si d e Set val u e (Threshol d val u e) Reversed output/Hi si d e Set val u e (Threshol d val u e)
Set value (Threshold value) Hysteresis value
With a snap shot function for set value reading
and
Pressing the buttons simultaneously
for a minimum of 1 second will make the set value
(threshold value) the same as the current flow value.
Push
Release the buttons after
Setting start "---" is displayed on the
right side sub screen.
For main line
PF2MC
The flow rate of a flow
switch installed in a
distant location can be
confirmed!
Hysteresis Set hysteresis value
Bottom value Peak value
Push
Setting completed
PFG300
