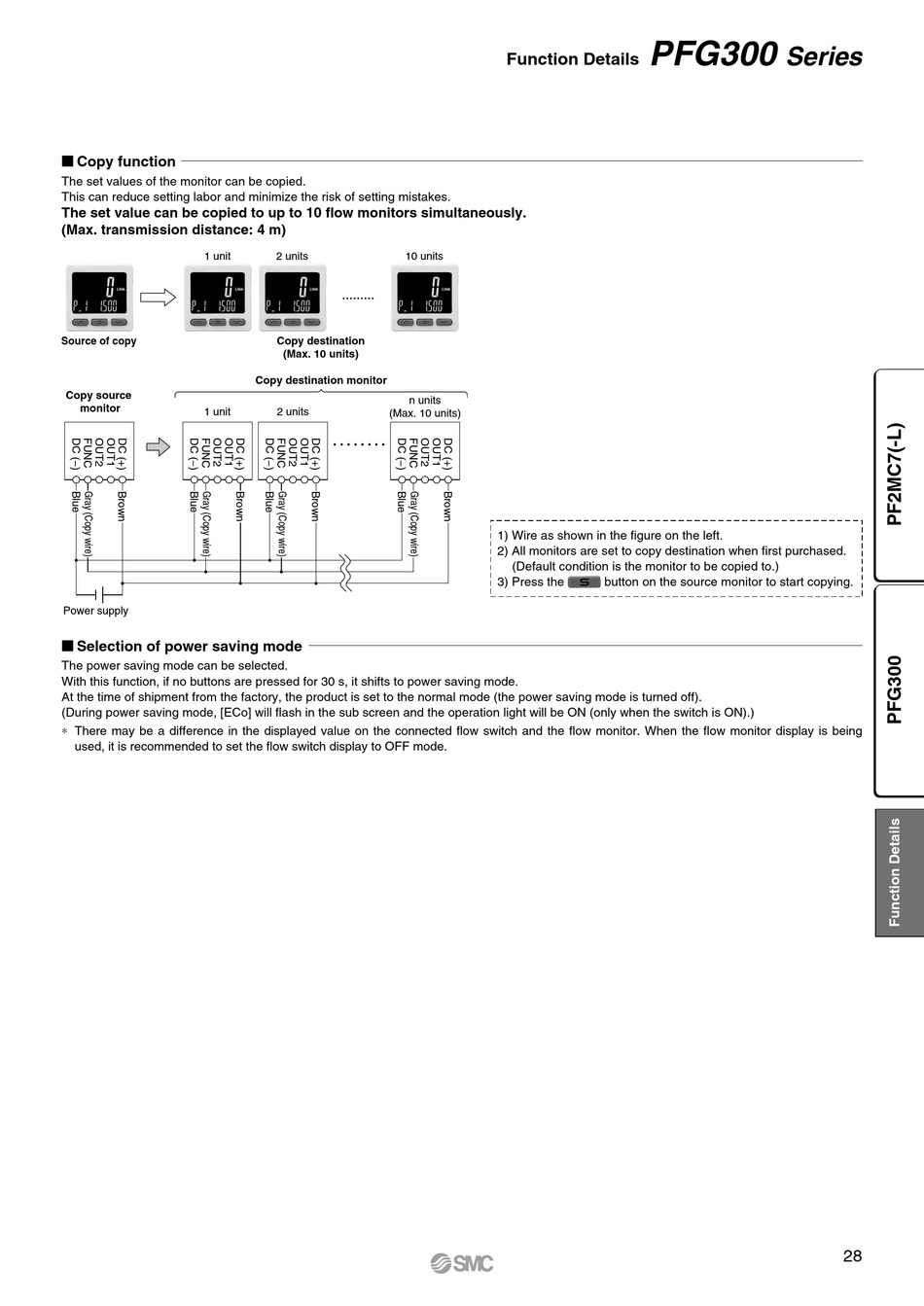

 Copy function
The set values of the monitor can be copied.
This can reduce setting labor and minimize the risk of setting mistakes.
The set value can be copied to up to 10 flow monitors simultaneously.
(Max. transmission distance: 4 m)
1 unit
Source of copy
Copy source
monitor
1 unit
Power supply
 Selection of power saving mode
The power saving mode can be selected.
With this function, if no buttons are pressed for 30 s, it shifts to power saving mode.
At the time of shipment from the factory, the product is set to the normal mode (the power saving mode is turned off).
(During power saving mode, [ECo] will flash in the sub screen and the operation light will be ON (only when the switch is ON).)
* There may be a difference in the displayed value on the connected flow switch and the flow monitor. When the flow monitor display is being
used, it is recommended to set the flow switch display to OFF mode.
2 units 10 units
·········
Copy destination
(Max. 10 units)
Copy destination monitor
n units
2 units
(Max. 10 units)
PFG300
Function Details
1) Wire as shown in the figure on the left.
2) All monitors are set to copy destination when first purchased.
(Default condition is the monitor to be copied to.)
3) Press the button on the source monitor to start copying.
