PF2MC7(-L)

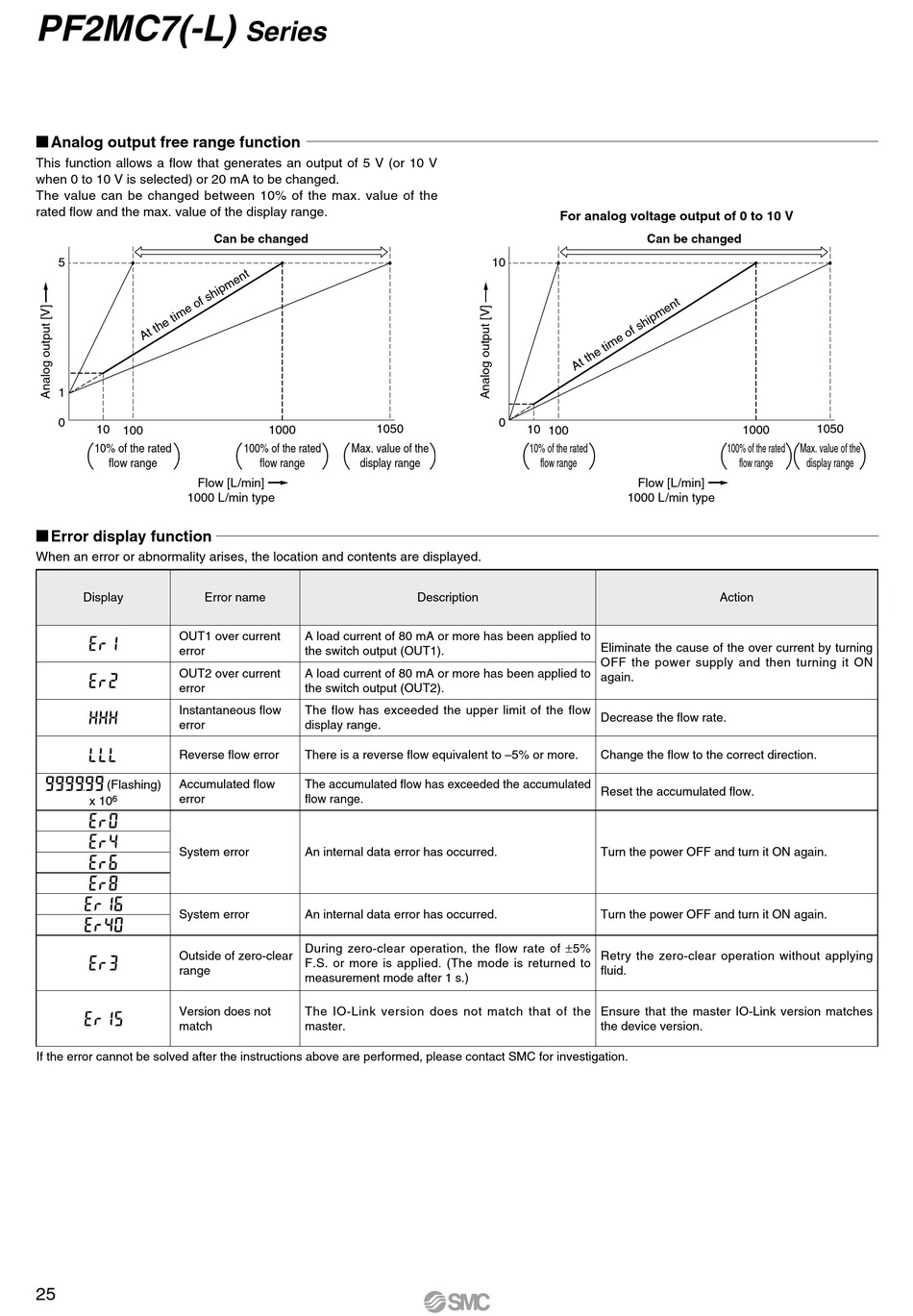

 Analog output free range function
This function allows a flow that generates an output of 5 V (or 10 V
when 0 to 10 V is selected) or 20 mA to be changed.
The value can be changed between 10% of the max. value of the
rated flow and the max. value of the display range.
5
1
0
10
100
10% of the rated
flow range
Flow [L/min]
1000 L/min type
 Error display function
When an error or abnormality arises, the location and contents are displayed.
Display Error name
OUT1 over current
error
OUT2 over current
error
Instantaneous flow
error
Reverse flow error
(Flashing) Accumulated flow
error
x 10 6
System error
System error
Outside of zero-clear
range
Version does not
match
If the error cannot be solved after the instructions above are performed, please contact SMC for investigation.
25
Series
Can be changed
1050
1000
100% of the rated Max. value of the
flow range display range
A load current of 80 mA or more has been applied to
the switch output (OUT1).
A load current of 80 mA or more has been applied to
the switch output (OUT2).
The flow has exceeded the upper limit of the flow
display range.
There is a reverse flow equivalent to –5% or more.
The accumulated flow has exceeded the accumulated
flow range.
An internal data error has occurred.
An internal data error has occurred.
During zero-clear operation, the flow rate of ±5%
F.S. or more is applied. (The mode is returned to
measurement mode after 1 s.)
The IO-Link version does not match that of the
master.
For analog voltage output of 0 to 10 V
10
0
10
100
10% of the rated
flow range
Description
Can be changed
1000
100% of the rated
flow range
Flow [L/min]
1000 L/min type
Action
Eliminate the cause of the over current by turning
OFF the power supply and then turning it ON
again.
Decrease the flow rate.
Change the flow to the correct direction.
Reset the accumulated flow.
Turn the power OFF and turn it ON again.
Turn the power OFF and turn it ON again.
Retry the zero-clear operation without applying
fluid.
Ensure that the master IO-Link version matches
the device version.
1050
Max. value of the
display range
