PF2MC7(-L)

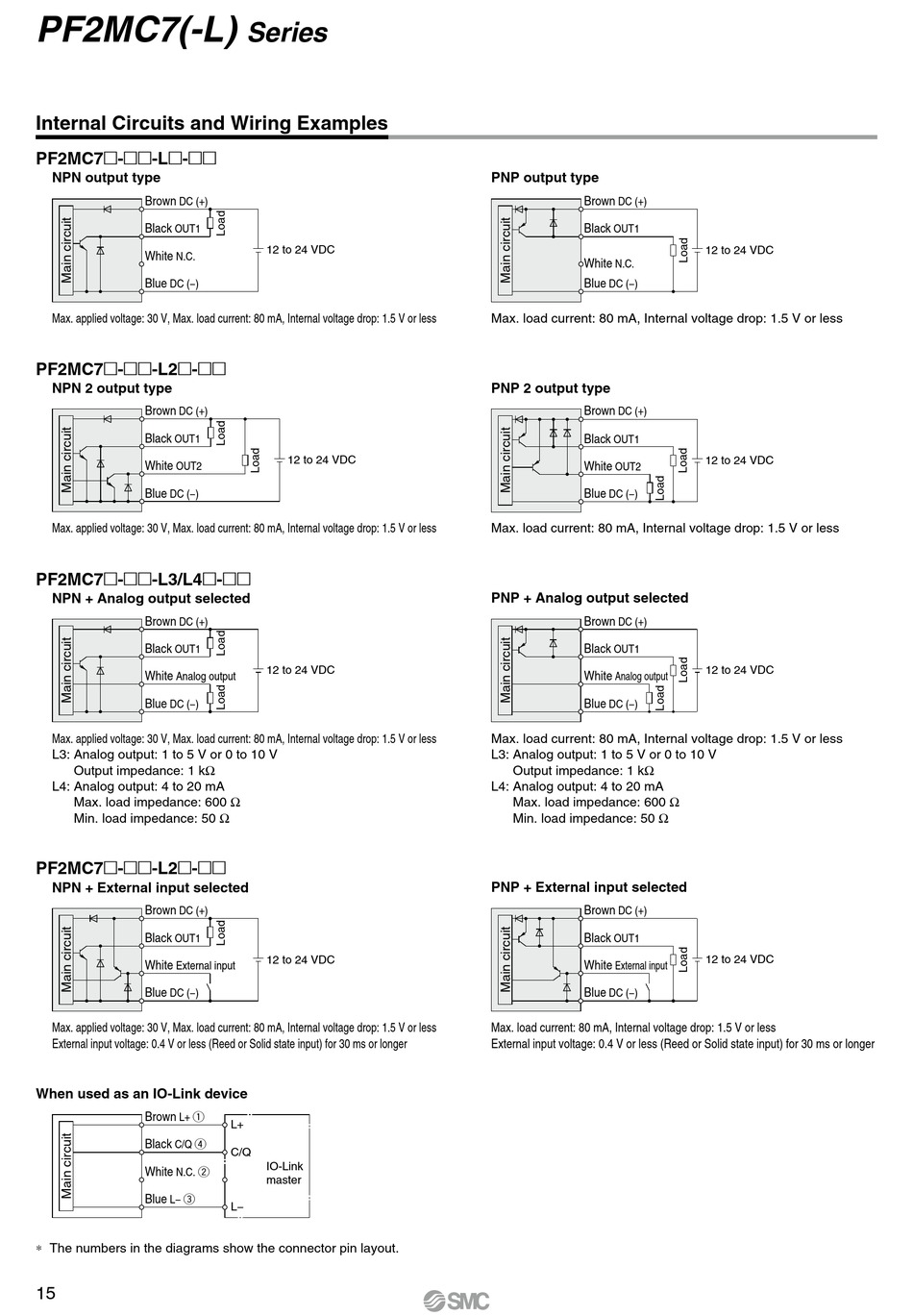

Internal Circuits and Wiring Examples
PF2MC7m-mm-Lm-mm
NPN output type
Brown
DC (+)
Black
OUT1
White
N.C.
Blue
DC (−)
Max. applied voltage: 30 V, Max. load current: 80 mA, Internal voltage drop: 1.5 V or less
PF2MC7m-mm-L2m-mm
NPN 2 output type
Brown
DC (+)
Black
OUT1
White
OUT2
Blue
DC (−)
Max. applied voltage: 30 V, Max. load current: 80 mA, Internal voltage drop: 1.5 V or less
PF2MC7m-mm-L3/L4m-mm
NPN + Analog output selected
Brown
DC (+)
Black
OUT1
White
Analog output
Blue
DC (−)
Max. applied voltage: 30 V, Max. load current: 80 mA, Internal voltage drop: 1.5 V or less
L3: Analog output: 1 to 5 V or 0 to 10 V
Output impedance: 1 kΩ
L4: Analog output: 4 to 20 mA
Max. load impedance: 600 Ω
Min. load impedance: 50 Ω
PF2MC7m-mm-L2m-mm
NPN + External input selected
Brown
DC (+)
Black
OUT1
White
External input
Blue
DC (−)
Max. applied voltage: 30 V, Max. load current: 80 mA, Internal voltage drop: 1.5 V or less
External input voltage: 0.4 V or less (Reed or Solid state input) for 30 ms or longer
When used as an IO-Link device
Brown
L+ q
Black
C/Q r
White
N.C. w
Blue
L− e
* The numbers in the diagrams show the connector pin layout.
15
Series
12 to 24 VDC
12 to 24 VDC
12 to 24 VDC
12 to 24 VDC
L+
C/Q
IO-Link
master
L−
PNP output type
Brown
DC (+)
Black
OUT1
White
N.C.
Blue
DC (−)
Max. load current: 80 mA, Internal voltage drop: 1.5 V or less
PNP 2 output type
Brown
DC (+)
Black
OUT1
White
OUT2
Blue
DC (−)
Max. load current: 80 mA, Internal voltage drop: 1.5 V or less
PNP + Analog output selected
Brown
DC (+)
Black
OUT1
White
Analog output
Blue
DC (−)
Max. load current: 80 mA, Internal voltage drop: 1.5 V or less
L3: Analog output: 1 to 5 V or 0 to 10 V
Output impedance: 1 kΩ
L4: Analog output: 4 to 20 mA
Max. load impedance: 600 Ω
Min. load impedance: 50 Ω
PNP + External input selected
Brown
DC (+)
Black
OUT1
White
External input
Blue
DC (−)
Max. load current: 80 mA, Internal voltage drop: 1.5 V or less
External input voltage: 0.4 V or less (Reed or Solid state input) for 30 ms or longer
12 to 24 VDC
12 to 24 VDC
12 to 24 VDC
12 to 24 VDC
