Installing the NX-535N-V3 voice module

The NX-535N-V3 voice module must be installed in the upper left corner from the
main panel. If a NX-7002N-V3 GSM module is used then the voice module must
be installed on top of the GSM module by using the short spacers and the tie rip.
Make sure that the tie rip hole and the small holes are used (see Figure 1).
If only a voice module is used and no NX-7002N-V3 GSM then the big spacers
are needed. Make sure that the big spacer holes are used (see Figure 1).

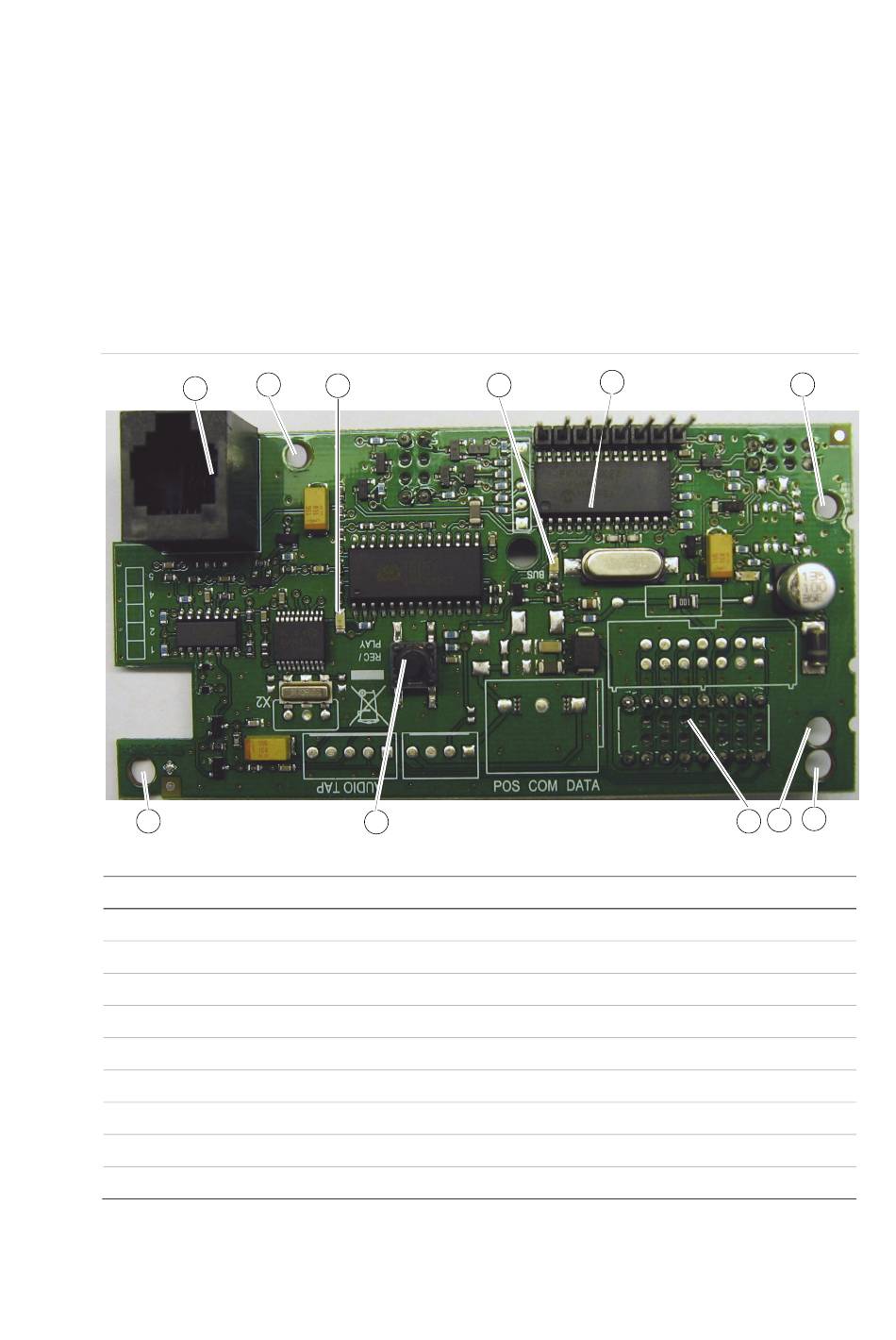

Figure 1. NX-535N-V3 voice module
8
7
9
Description
1 NetworX bus terminals
2 Tie rip hole
3 Record / Playback button
4 Processor
5 LED ON during Record / Playback
6 Bus activity LED
7 Connection for telephone handset
8 Small spacer holes
9 Big spacer holes
NX-535N-V3 Voice Module Installation Manual
6
5
3
4
2
1
8
9
3
