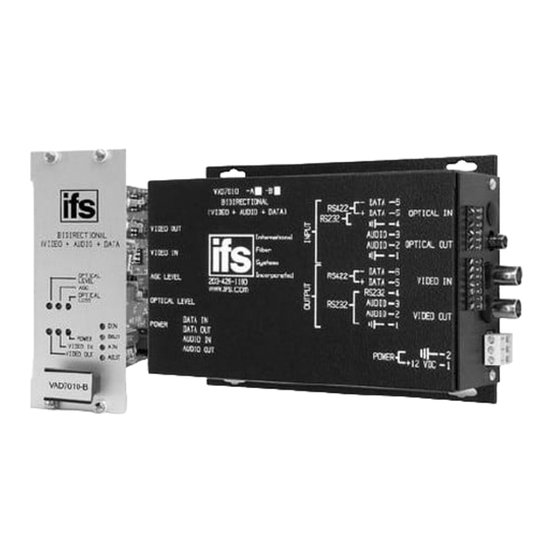

- Page 1 VAD7010A VAD7010WDMB VAD7010A-R3 VAD7010WDMB-R3 VAD7010B VAD7030WDMA VAD7010B-R3 VAD7030WDMA-R3 VAD7010WDMA VAD7030WDMB VAD7010WDMA-R3 VAD7030WDMB-R3 IFS Fiber Module Installation & Operation Instructions P/N 1062832 • REV B • ISS 01JUL11...
- Page 2 RS - 232 DATA INPUT DATA INPUT (UPPER GROUND CONNECTOR) - DATA INPUT RS - 422 DATA INPUT + DATA INPUT (UPPER CONNECTOR) RS - 232 DATA OUTPUT (LOWER DATA OUTPUT CONNECTOR) GROUND - DATA OUTPUT RS - 422 DATA + DATA OUTPUT OUTPUT (LOWER CONNECTOR)
- Page 3 AUDIO OUTPUT (LOWER AUDIO OUTPUT CONNECTOR) AUDIO OUTPUT NOTE: FOR AN UNBALANCED CONNECTION, TIE PIN1 TO PIN 2 (UPPER CONNECTOR) AND UTILIZE PINS 2 AND 3 (UPER CONNECTOR) FOR THE AUDIO INPUT TO THE VAD7000 SERIES MODULE. UTILIZE PINS 2 AND 3 (LOWER CONNECTOR) FOR THE AUDIO OUTPUT FROM THE VAD7000 SERIES MODULE.
- Page 4 NOTE: VAD7000-A MUST ALWAYS be connected to VAD7000-B module. Coax cable Video Source VAD7010WDM -A 2 WAY (VIDEO + AUDIO + DATA) - DATA - 6 RS422 OPTICAL IN/OUT + DATA - 5 RS232 OPTICAL LEVEL International AUDIO - 3 Fiber AUDIO - 2 VIDEO OUT...
- Page 5 Audio Output Audio Input Data Output Data Input Optical Level Video Out Video In Power INDICATOR FUNCTION Data Input This LED illuminates when an electrical data signal is connected. Data Output This LED illuminates when a data signal is optically received. Audio Input This LED illuminates when an electrical audio signal is received.
-
Page 6: Fcc Compliance
FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation. Changes or modifications not expressly approved by International Fiber Systems, Inc. - Page 7 Contacting us For help installing, operating, maintaining, and troubleshooting this product, refer to this document and any other documentation provided. If you still have questions, contact us during business hours (Monday through Friday, excluding holidays, between 5 a.m. and 5 p.m. Pacific Time). Sales and support contact information North Toll-free: 855.286.8889 in the US, including Alaska and Hawaii;...
- Page 8 Product Disassembly Instructions for WEEE Per European Directive 2002/95/EC Waste Electrical and Electronic Equipment Required Tools: One number 2 Phillips (crosstip) screwdriver. One number 2 flat screwdriver. For the enclosed box version: 1. Locate and remove box cover securement screws. Usually, but not limited to, at least 4 screws.
- Page 9 Copyright © 2011 UTC Fire & Security. All rights reserved. Trademarks and Interlogix and IFS names and logos are trademarks of patents UTC Fire & Security. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
