- Page 1 VR1520WDM VT1520WDM VR1520WDM-R3 VT1520WDM-R3 VR1530WDM VT1530WDM VR1530WDM-R3 VT1530WDM-R3 IFS Fiber Module Installation & Operation Instructions P/N 1062801 • REV B • ISS 01JUL11...
- Page 2 VTVR1520/1530WDM SERIES VT1520WDM/VT1530WDM RS232 MODE Data Out DATA OUTPUT Ground RS422 MODE - Data Out DATA OUTPUT + Data Out VR1520WDM/VR1530WDM RS232 MODE Data In DATA INPUT Ground - Data In RS422 MODE + Data In DATA INPUT...

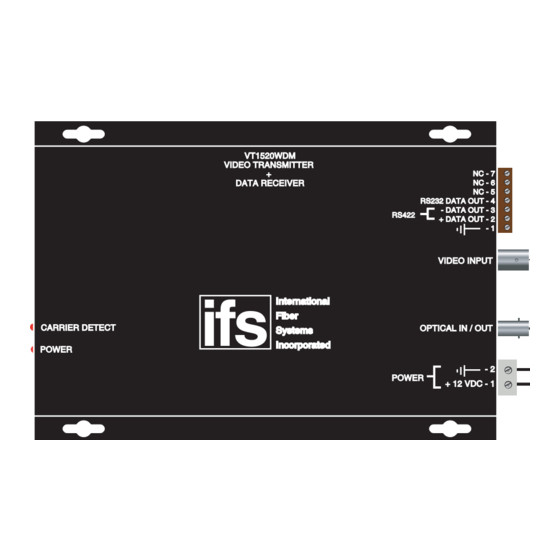

- Page 3 VT1520WDM VT1520WDM VIDEO TRANSMITTER VIDEO TRANSMITTER NC - 7 NC - 7 DATA RECEIVER DATA RECEIVER NC - 6 Video source NC - 5 RS232 DATA OUT RS232 DATA OUT - 4 - DATA OUT - DATA OUT - 3 RS422 RS422 + DATA OUT...
- Page 4 VT1520WDM A Carrier Detect LED illuminates Power VR1520WDM A Carrier Detect LED illuminates Power NOTE: WITHOUT PROPER FIBER CONNECTION, LED's DO NOT INDICATE CORRECT OPERATIONAL STATUS OF THE UNIT.
-
Page 5: Fcc Compliance
FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation. Changes or modifications not expressly approved by International Fiber Systems, Inc. - Page 6 Contacting us For help installing, operating, maintaining, and troubleshooting this product, refer to this document and any other documentation provided. If you still have questions, contact us during business hours (Monday through Friday, excluding holidays, between 5 a.m. and 5 p.m. Pacific Time). Sales and support contact information North Toll-free: 855.286.8889 in the US, including Alaska and Hawaii;...
- Page 7 Product Disassembly Instructions for WEEE Per European Directive 2002/95/EC Waste Electrical and Electronic Equipment Required Tools: One number 2 Phillips (crosstip) screwdriver. One number 2 flat screwdriver. For the enclosed box version: 1. Locate and remove box cover securement screws. Usually, but not limited to, at least 4 screws.
- Page 8 Copyright © 2011 UTC Fire & Security. All rights reserved. Trademarks and Interlogix and IFS names and logos are trademarks of patents UTC Fire & Security. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
