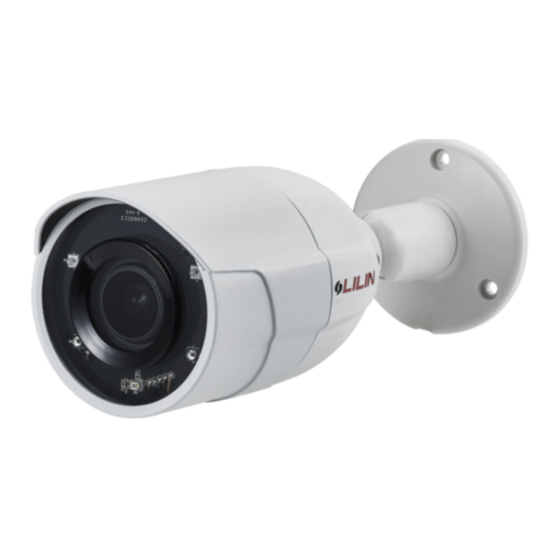

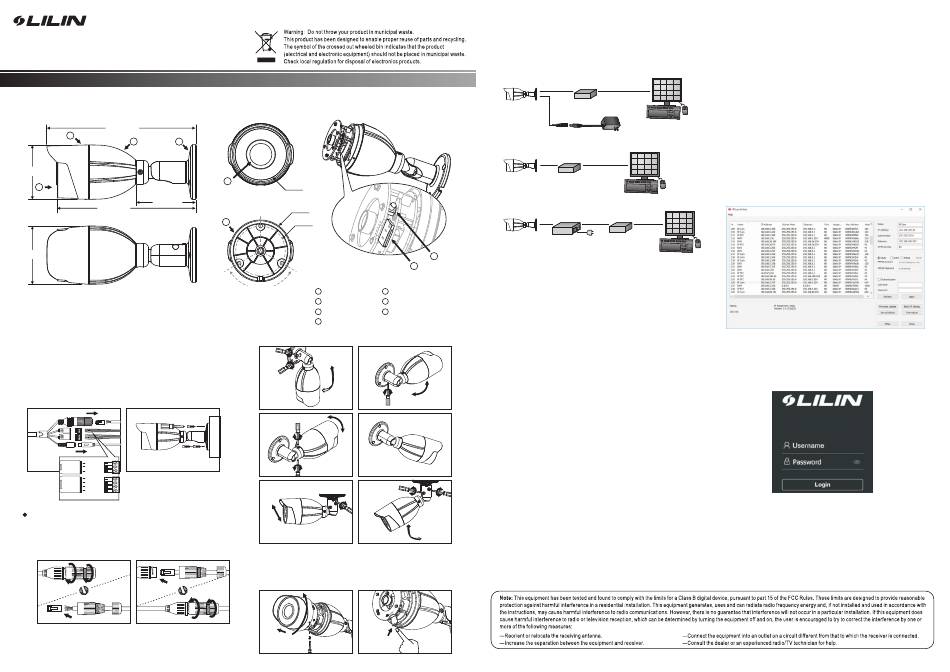

D/N HD IR IP CAMERA
Installation Guide
P
art Description & Dimensions
189mm
1
2
3
69mm
4
76mm
176mm
74mm
I
nstallation
1. Retrieve the camera from the box first. Connect the Ethernet cable and power
cable to the camera's RJ-45 network connector and DC power-in connector
(FIG.1). Secure the camera (FIG.2).
Note: For outdoor installation, it is recommended to install a waterproof
junction box.
Network Cable
DC Power Input
Audio OUT
FIG.1
FIG.2
GND
AUDIO
Audio IN
GND
Alarm IN
ALARM
COM
Alarm OUT
[AF IR IP Camera Only]
Connect the RJ-45 Ethernet cable with a waterproof connector
First, remove the waterproof connector and unscrew the waterproof nut.
Insert the Ethernet cable and connect to the RJ-45 connector with proper
tools (FIG.3). Then, tighten the waterproof connector and nut before the
RJ-45 connector is connected to the camera (FIG.4).
FIG.3
FIG.4
2. Adjust the five adjustment screws to move the camera to the desired angle,
and then tighten the adjustment screws (FIG.5~10).
5
φ58
φ70
φ58
3
3-120°
1
Front Cover
5
Lens
2
Main Body
6
Micro SD card slot
3
Bracket Base
7
Factory default button
4
Window
FIG.5
FIG.6
FIG.7
FIG.8
FIG.9
FIG.10
I
nserting a Micro SD Card
First remove the screw under the front cover, then rotate the front cover
counterclockwise to remove it and insert a Micro SD card (FIG.11 & 12).
FIG.9
FIG.10
S
ystem Architectures
For connecting IP Camera series to the network, please follow one of the
system architectures:
(1). Use DC12V power adaptor and network switch connected to a network.
66-8822CSB-1B
LAN
Non-PoE Switch
IP CAMERA
DC12V Adaptor
(2). Use with PoE of the network switch connected to the network.
LAN
IP CAMERA
PoE Switch
(3). Use PoE power injector and the network switch connected to the network.
LAN
IP CAMERA
PoE Power Injector
7
6
B
efore Accessing IP Cameras
Before accessing the IP camera, make sure that the camera's RJ-45
network, audio, and power cables are properly connected. To set the IP
address, consult your network administrator for an available IP address.
The default IP address for each IP camera is 192.168.0.200. Users can use
the default IP address for verifying the camera's network connection.
E
mergency Factory Default
To restore the hardware to factory default settings, please follow these steps:
1.Press and hold "RESET Key" for 10 seconds and release.
2.Wait for about 40 seconds, and the network LED light should turn off, and
go back on again.
3.The camera is now restored to factory default settings, and will reboot
automatically.
4.Search for the IP device using the IPScan software.
5.Start the IP device via an Internet browser.
6.Enter the username and password to operate.
NOTE1:
The factory default username and password are empty, and the
user can set an account for login.
NOTE2:
The IP address will revert to the default setting of 192.168.0.200.
C
onfiguring IP Addresses via Web Interface
To change an IP address via web interface, type the default IP address
(192.168.0.200) in the Internet browser and follow the steps below:
1. Login to the Full HD IP camera with the set username and password.
2. Click Basic Mode configuration hyperlink.
3. Click Network->General hyperlink.
4. Change the IP address, subnet mask, gateway, or HTTP port for the IP
camera.
5. Click Submit to verify the settings.
S
oftware Requirements
Universal ActiveX software components are required for web interface
display of JPEG or Full HD video. When you login to the IP camera by
Internet Explorer, the security warning dialog box will prompt the
installation of the Universal ActiveX. Click Install to download it.
LAN / Internet
C
onfiguring IP Addresses with IPScan Software
To change the settings of the IP address, subnet mask, gateway, or HTTP
PC
port, you can follow the steps below:
1. Run the IPScan software.
2. Click Refresh. All available devices should be listed in the device list.
3. Select your device from the list provided.
LAN / Internet
4. Change the IP address, subnet mask, gateway, or HTTP port for the IP
camera.
5. Click Apply to submit the settings.
PC
6. Click Refresh to verify the settings.
LAN
LAN / Internet
AC
Non-PoE Switch
PC
L
ogin
The factory default username and password are empty. To login to the Full
HD IP camera, please set the username and password on the login page.
Press [Login] to complete the setting and login simultaneously.
Password have to meet the following criteria:
1. More than or equal to 8 characters.
2. Allow uppercase letter, lowercase letter, number digit, and special
character.
3. Must have at least three types of character sets.
IPCAM
