The drive unit
5. Call and park positions
The following data can be stored on and or restored from a micro SDcard:
1. Rail data: in total 99 different entries per stairlift
2. Error data
3. Maintenance counters
4. Parameter data
5. Firmware
6. Call and park position
Settings are changes in working memory. The working memory is a temporary memory. When settings are changed
without confirming them, they will be lost.

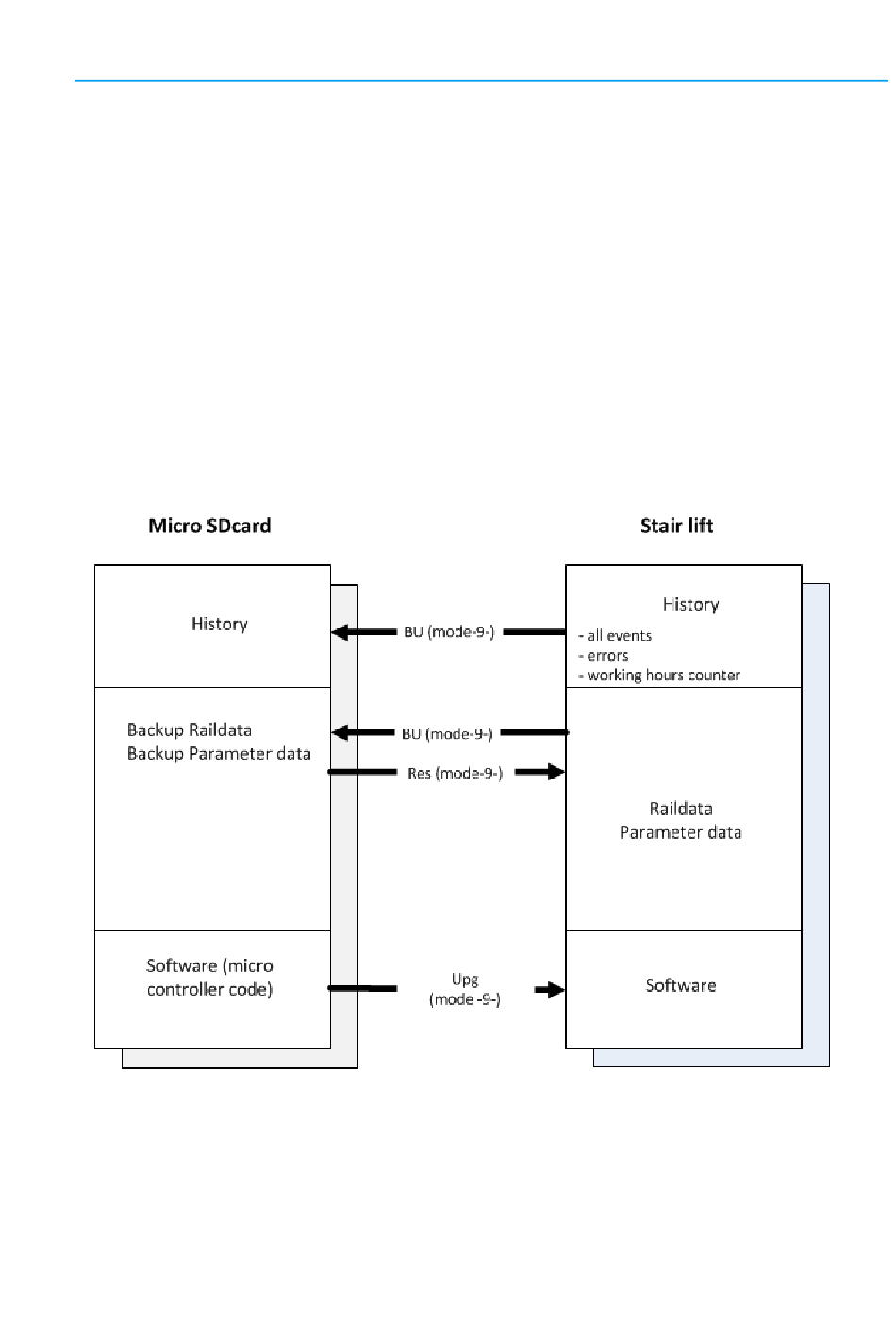

Figure 4-6: Micro SDcard memory setup
4.1.2

The drive motor system

The stairlift is driven by a drive motor. This is connected via three planetary transmission stages to the drive wheel
that engages in de rail rack. The motor must deliver the required force to transport the chair in a comfortable way by
regulating the speed and acceleration of the chair along the transport rail. A brushless DC motor is used for this job.
