IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

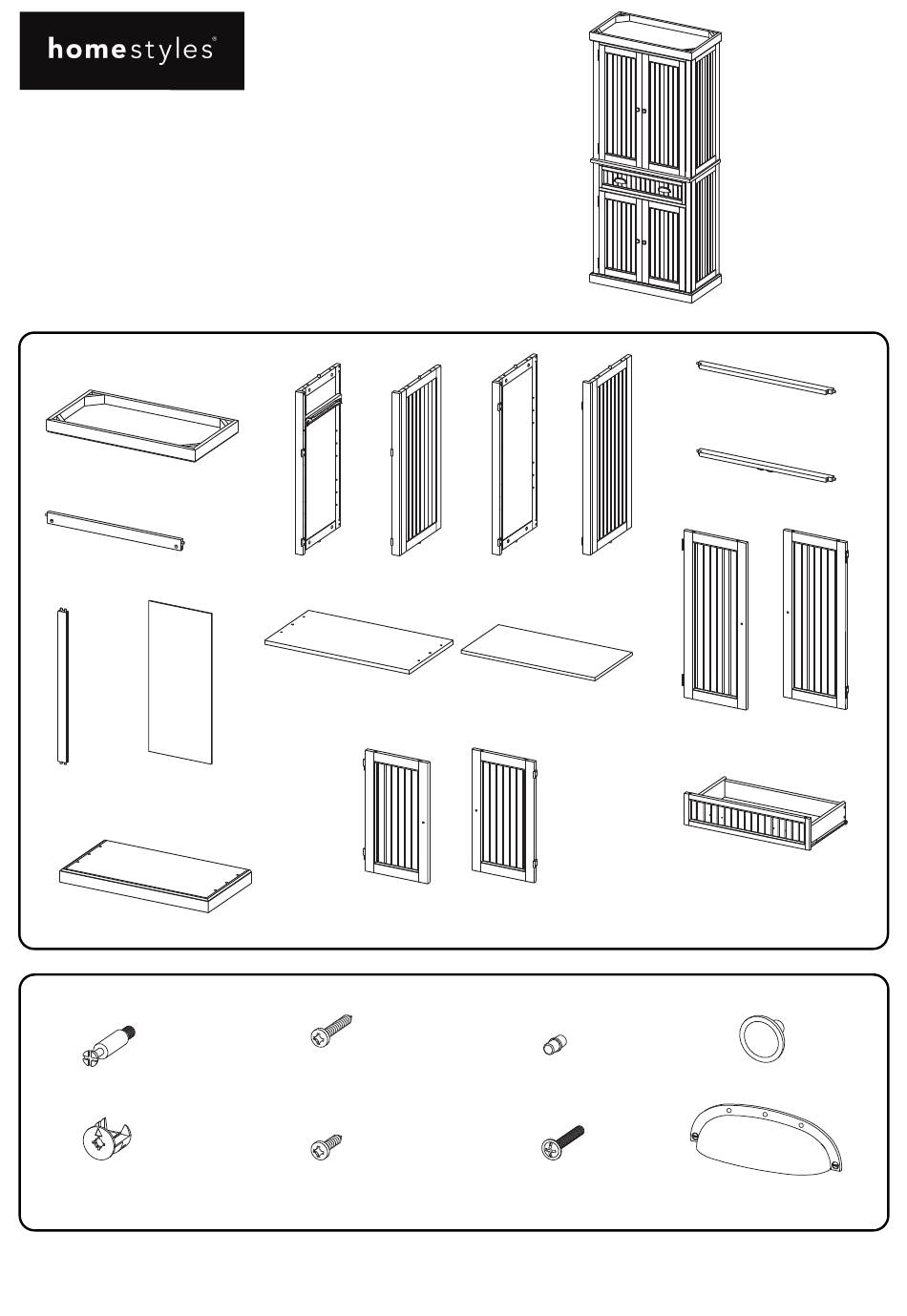

Part List
A.
Top
1 pc.
H.
Back Rail
4 pcs.
I.
J.
Back Upright
Back Panel
2 pcs.
4 pcs.
L.
Base
1 pc.
Hardware List
Cam Lock Screw
30 pcs. (+1 extra)
Cam Lock
30 pcs. (+4 extra)
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
home
50
22
-69
Pantry
B.
C.
Side Panel
Side Panel
1 pc.
1 pc.
K.
Middle Panel
1 pc.
P.
Door
1 pc.
M3.5x25
Wood Screw (long)
8 pcs. (+1 extra)
M3.5x16
Wood Screw (short)
22 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
D.
E.
Side Panel
Side Panel
1 pc.
1 pc.
M.
Shelf
4 pcs.
Q.
Door
1 pc.
Adjustable Pin
16 pcs. (+1 extra)
M4x25
Machine Screw
8 pcs.
888-680-7460
F.
Front Rail
1 pc.
G.
Front Rail
2 pcs.
N.
O.
Door
Door
1 pc.
1 pc.
R.
Drawer
1 pc.
Refer to later page(s) of these
instructions for drawer assembly.
Knob
4 pcs.
Handle
2 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pantry 5022-69 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Home Styles Pantry 5022-69

Summary of Contents for Home Styles Pantry 5022-69

  • Page 1 Pantry IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble. Part List Front Rail 1 pc.
  • Page 2 Assembly Instructions 2/8 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ The unit must be level to work properly. Use the included adjustable levelers to level. STEP 1 Cam Lock Screw Insert Cam Lock Screws into pre-drilled holes in...
  • Page 3 Assembly Instructions 3/8 STEP 2 Cam Lock Attach Back Rail (H) to Side Panel (C) with Cam Lock. (See Figure 2) Slide Back Panel (J) into position. Attach Back Upright (I) to Stretcher (H). Slide Back Panel (J) into position. Attach Back Rail (H) to unit with Cam Lock.
  • Page 4 Assembly Instructions 4/8 Cam Lock STEP 4 Attach Base (L) to unit with Cam Locks. Cam Lock STEP 5 Turn unit over to its upright position. Attach Doors (P) and (Q) by sliding door hinges into side panel hinges. (See Figure 3) Attach Knobs to Doors (P) and (Q) with Machine Screws.
  • Page 5 Assembly Instructions 5/8 STEP 6 Attach Back Stretcher (H) to Cam Lock Side Panel ( ) with Cam Lock. Slide Back Panel (J) into position. Attach Back Upright (I) to Stretcher (H). Slide Back Panel (J) into position. Attach Back Stretcher (H) to unit with Cam Lock.

  • Page 6: Part List

    Assembly Instructions 6/8 Drawer (R) Wood Screw (long) Bottom STEP 8 Attach Drawer Front (R1) and Drawer Back (R2) to Drawer Side (R3) with Wood Screws (long). Attach Drawer Side (R4) to unit with Wood Screws (long). Roller at back Wood Screw (short) STEP 9 Slide Drawer Bottom (R5) into groove.
  • Page 7 Assembly Instructions 7/8 STEP 11 Cam Lock Insert Adjustable Pins into side panels at Machine Screw Knob desired level. Place Shelves (M) into position. Slide Drawer (R) into position. Attach Doors (N) and (O) to unit by sliding door hinges into side panel hinges. Attach Knobs to Doors (N) and (O) with Machine Screws.

  • Page 8: Hardware List

    Assembly Instructions / 8 8 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly. STEP 13 Wall Screw Pre-drilled hole Anchor in wall Bracket at top of unit on wall Wood Screw 3/8”...
  • Page 9 Digital images of the defective parts may be required. If the product was not purchased from an authorized retailer, home styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged parts may be requested via contact info below.
