IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Seat
1 pc.
E.
Side Stretcher
1 pc.
F.
Side Stretcher
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
5020-89

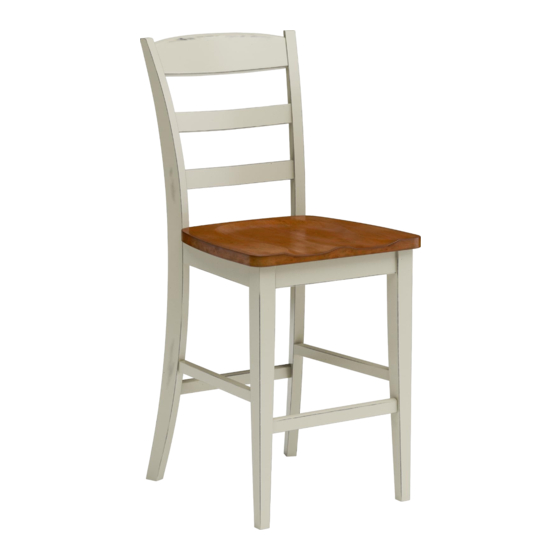

Bar Stool
B.
Leg
1 pc.
G.
Front Stretcher
1 pc.
Flat Washer
11 pcs. (+1 extra)
M6x40
Head Cap Bolt (short)
3 pcs. (+1 extra)
C.
Leg
1 pc.
Spring Washer
11 pcs. (+1 extra)
M6x50
Head Cap Bolt
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
D.
Back Frame
1 pc.
M3.5x40
Wood Screw
6 pcs. (+1 extra)
M6x70
Head Cap Bolt (long)
4 pcs. (+1 extra)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 5020-89
Summary of Contents for Home Styles 5020-89
- Page 1 Small Hex Wrench Head Cap Bolt (short) Head Cap Bolt Head Cap Bolt (long) 1 pc. 3 pcs. (+1 extra) 4 pcs. (+1 extra) 4 pcs. (+1 extra) Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestylesfurniture.com, servicedesk@homestylesfurniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future. Wood Screw Flat Washer Spring Washer...
- Page 3 Assembly Instructions 3/3 Head Cap Bolt (long) Spring Washer Flat Washer Wood Screw Head Cap Bolt (short) Spring Washer Flat Washer STEP 2 Attach Back Frame (D) to unit with Flat Washers, Spring Washers, Head Cap Bolts (short) and Head Cap Bolts (long), tightening bolts only halfway. (See Figures 3 and 4) Tighten all bolts used in Steps 1 and 2.
- Page 4 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
