Pro Camera Vibration Isolator, 5-15kg

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

PASSIVE Plate

PAN Barrel Polymer

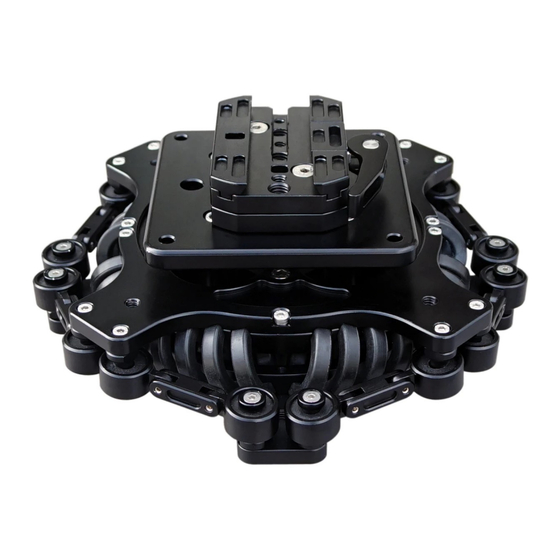

Proaim Pro Vibration Isolator

with Ronin Mounting Plate

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

A s s e m b l y M a n u a l

DJI-QR Ronin

TOP plate of Isolator

SQUARE O-RINGS

statutes or in writing by the Publisher.

(VI-PP-01)

2.5mm, 3mm, 5/16'' Allen keys

Table of Contents

Need help?

Do you have a question about the Pro CINEMA Series and is the answer not in the manual?

Page 1 SQUARE O-RINGS PAN Barrel Polymer 2.5mm, 3mm, 5/16'' Allen keys Proaim Pro Vibration Isolator with Ronin Mounting Plate All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
Page 2  Attach DJI-QR Ronin plate with top plate of Vibration Isolator with the provided screws & allen key. NOTE: Attach Isolator with Proaim Airwave Vibration Isolator Arm then secure with provided screws  Loosen the side lock lever & insert your gimbal then again lock the lever to secure it.
Page 3  Loosen all allen bolts with help of provided allen key as shown in images.  Remove the Passive Plate from the Frame as shown in the image.  Turn the Isolator upside-down & loosen the bolts to remove Square-O-Rings from the Isolator.
Page 4 YOUR PROAIM PRO CAMERA VIBRATION ISOLATOR FOR GIMBALS, ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.

Pro cinema vi-pp-01
