Boxer HD-2X Motorized Pan/Tilt Head
P-BXR-HD-2X
A s s e m b l y M a n u a l

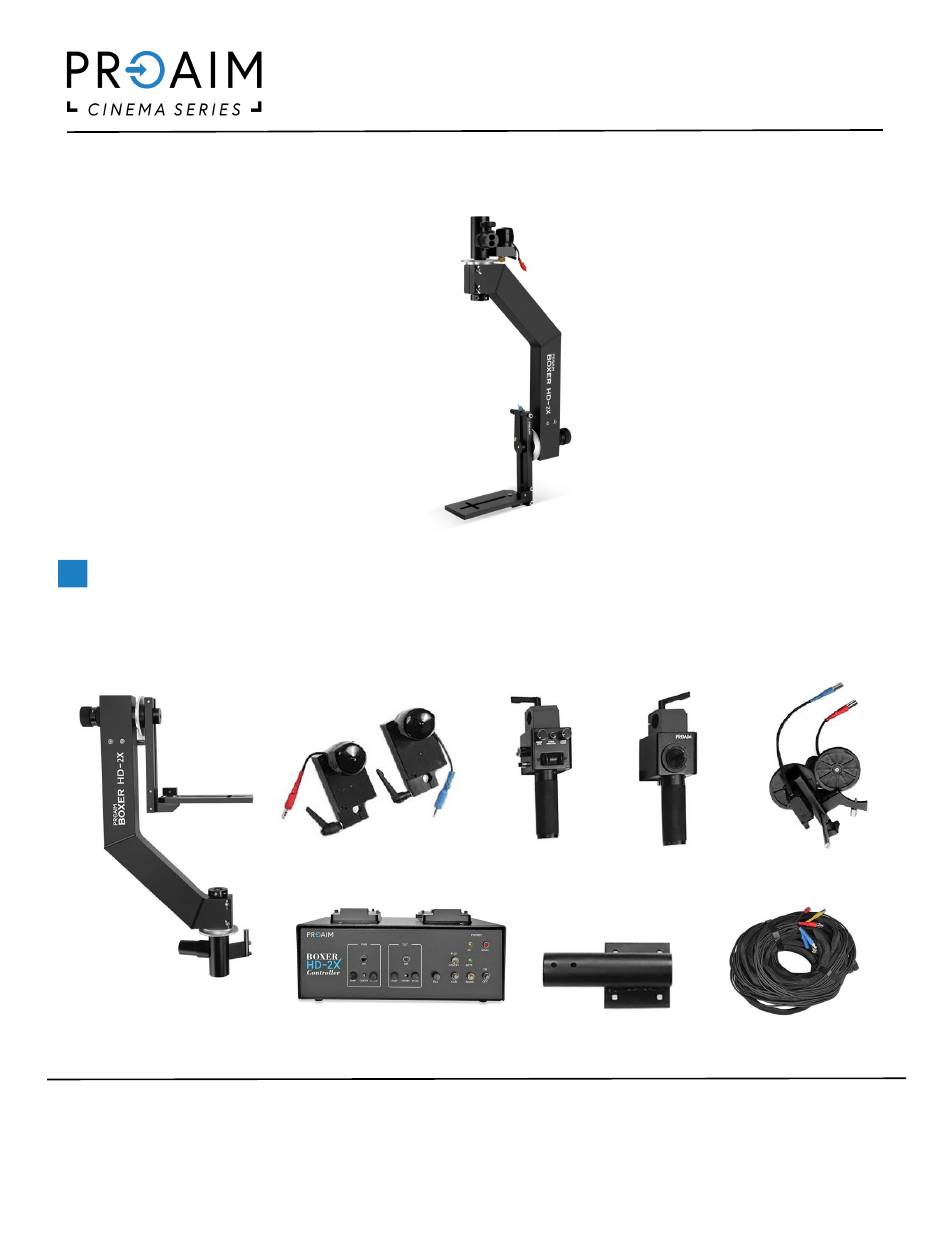

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Focus & Zoom
Joystick
Pan and Tilt Motor
Focus and Iris Motor
Controller
Controller
Boxer HD-2X Motorized
Controller with Battery Box
Pan Tilt Head
Head Connector
43ft Long Cable
