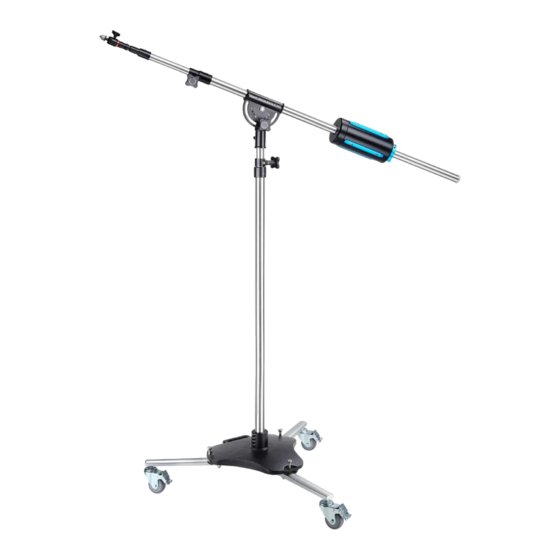

PROAIM P-TSBS-01 Assembly Manual

Tristar telescopic studio stand
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

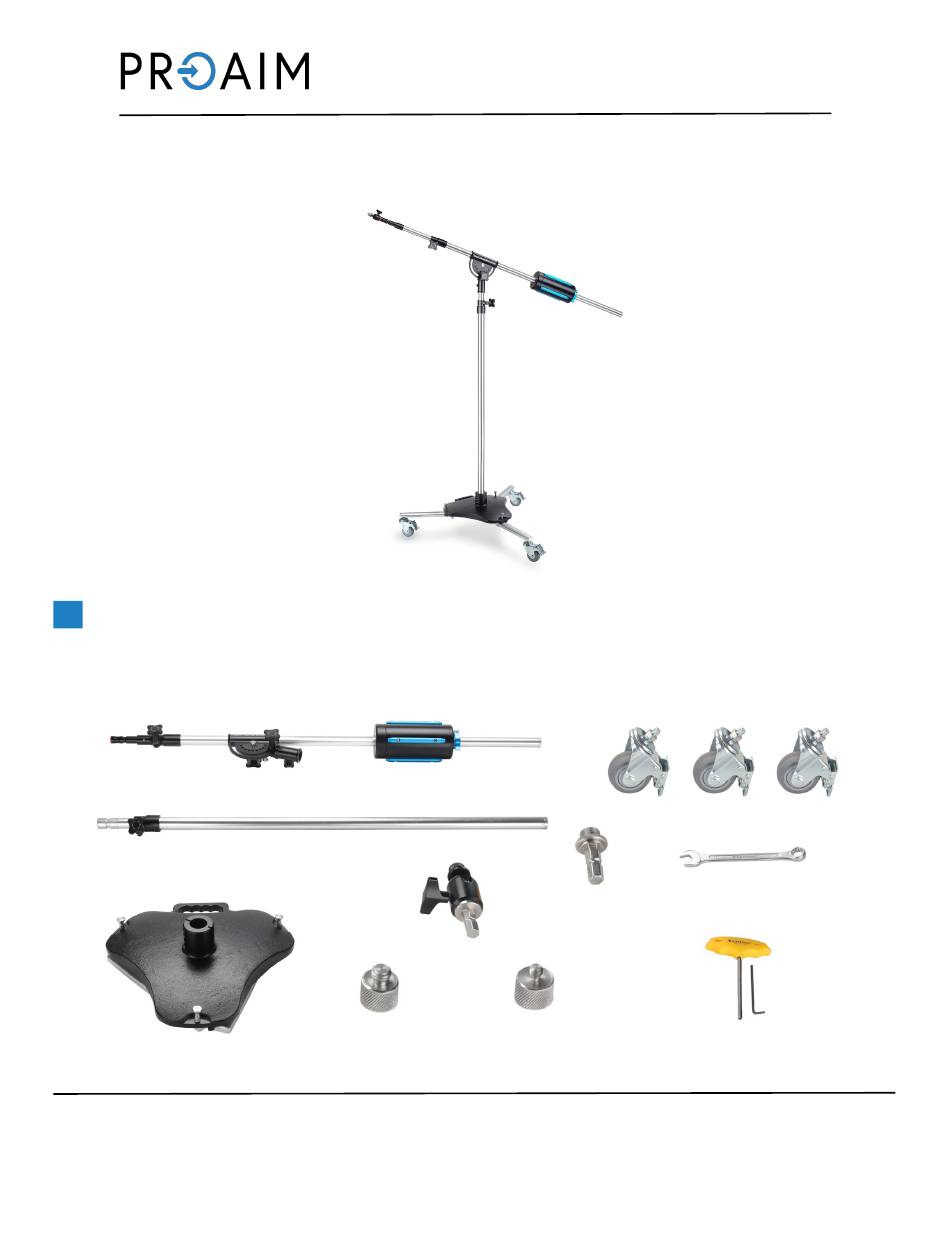

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Telescopic Boom Arm with Counter Weight
Heavy Cast Iron Base
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
Tristar Telescopic Studio Stand
A s s e m b l y M a n u a l
Vertical Telescopic Pole
Ball Head
5/8"-27 to 3/8"-16
Converter
All rights reserved.
statutes or in writing by the Publisher.
3 x 3" Caster Wheels
5/8"-27
Mounting Head
5/8"-27 to 1/4"-20
1 x 6mm T-Type Allen Key
Converter
1 x 3mm L-Type Allen Key
(P-TSBS-01)
1 x 19mm
Spanner
1

Advertisement

Table of Contents
loading

Related Manuals for PROAIM P-TSBS-01

Summary of Contents for PROAIM P-TSBS-01

  • Page 1 Tristar Telescopic Studio Stand (P-TSBS-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

  • Page 2: Table Of Contents

    INDEX Sr. No Particulars Page No. Tristar Telescopic Studio Stand Setup Caster Wheel Assembly Vertical Telescopic Pole Assembly Telescopic Boom Arm Assembly Adjustment of Telescopic Boom Arm Height Adjustment of Telescopic Boom Arm Ball Head Mounting Blimp Setup Counter Weight Adjustment Mic Setup Final Setup...

  • Page 3: Tristar Telescopic Studio Stand Setup

    Tristar Telescopic Studio Stand Setup • Open a leg of the Heavy Cast Iron Base and secure it using the locking pin. • Repeat the same step for the other two legs. Caster Wheel Assembly • Insert the Caster wheel into the leg of the Heavy Cast Iron Base.

  • Page 4: Vertical Telescopic Pole Assembly

    • Push the lock downward to lock the movement of the Caster wheel. • Repeat the same step for locking the other wheels. Feature: The Push pin can be pulled up to fold in the legs when not in use. Vertical Telescopic Pole Assembly •...

  • Page 5: Adjustment Of Telescopic Boom Arm

    • Tighten the knob after mounting the Telescopic Boom Arm. Adjustment of Telescopic Boom Arm • Pull the push pin and set the Telescopic Boom Arm at the desired position. Feature: The Push Pin enables you to set the Telescopic Boom arm at a desired position. •...

  • Page 6: Height Adjustment Of Telescopic Boom Arm

    • Loosen the knob and extend the Telescopic Boom Arm to the desired length. • Once the Boom Arm is at the desired length, tighten the knob to secure it. Height Adjustment of Vertical Telescopic Pole • Loosen the knob of the Telescopic pole and set it at the desired height.

  • Page 7: Blimp Setup

    • Now, mount the 5/8”- 27 to 3/8”-16 converter onto the Ball Head. Blimp Setup • Mount the converter onto the Blimp (Not Included) securely. • Loosen the knob and set the Blimp at the desired position. NOTE: Use Knob to set the position of the Blimp.

  • Page 8: Mic Setup

    The Mic is securely mounted on the Boom Arm. Feature: The Tristar supports a generous payload capacity of 10kg / 22lb, accommodating your high-end recording equipment with ease. YOUR PROAIM TRISTAR TELESCOPIC STUDIO STAND ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
  • Page 9 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
