PROAIM P-MLMT-01 Assembly Manual

Multi-monitor vesa mount system
Hide thumbs Also See for P-MLMT-01:
1
2
3
4
5
6
7

Advertisement

Table of Contents

1

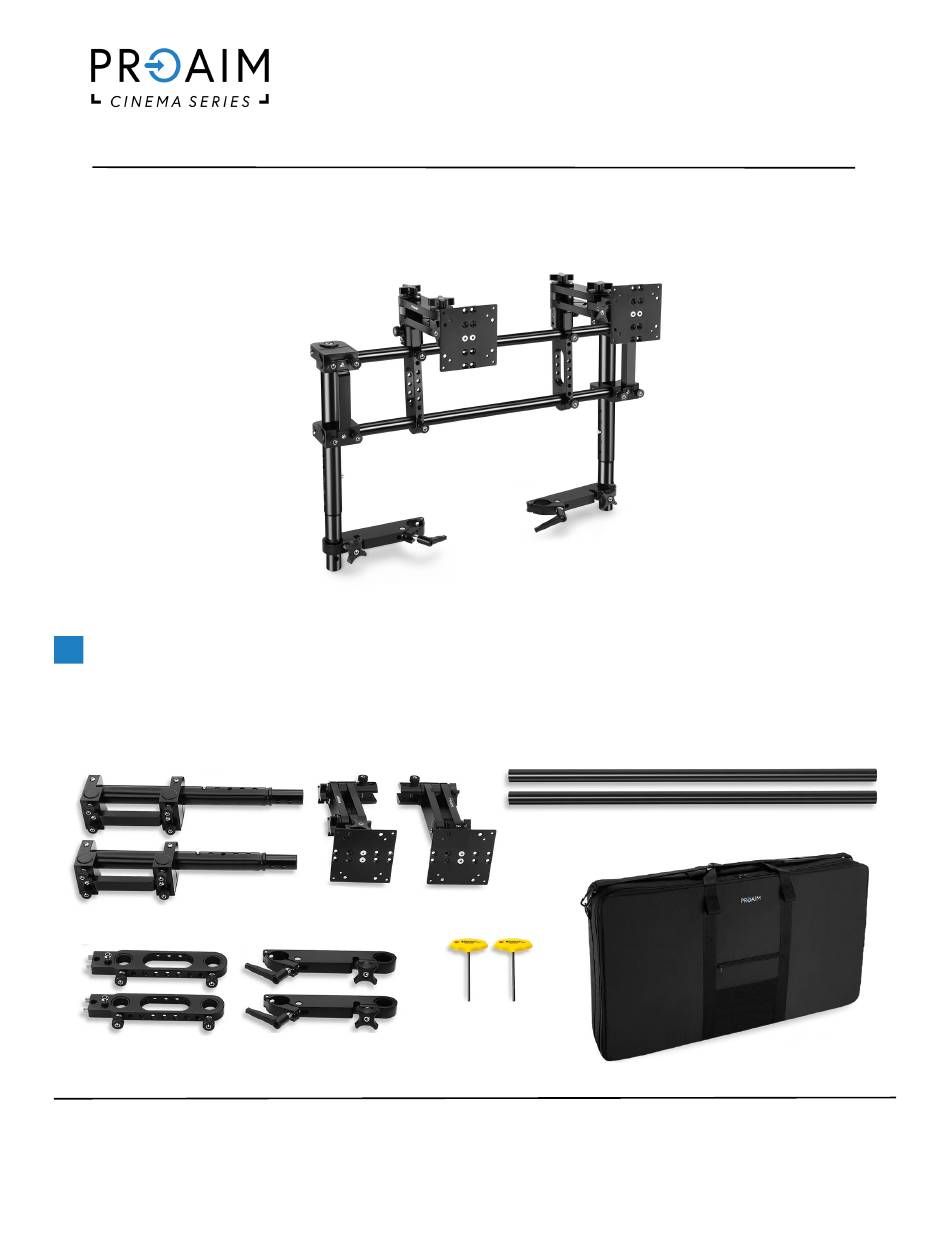

Multi-Monitor VESA Mount System
(P-MLMT-01)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
2 x Cross Tubes
2 x Vesa Mount
2 x Pole
2 x T-Type Allen Key
(Sizes: 3x16",4mm)
2 x Cross Bars
2 x Clamps
Bag
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-MLMT-01 and is the answer not in the manual?

Questions and answers

Related Manuals for PROAIM P-MLMT-01

Summary of Contents for PROAIM P-MLMT-01

  • Page 1 Multi-Monitor VESA Mount System (P-MLMT-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
  • Page 2 Multi-Monitor VESA Mount Setup Assembly of clamps  Loosen and open the ratchet knob of the clamp.  Align and attach the clamp with the rod and then tighten it using the ratchet knob.  Similarly, attach the other clamp with the rod as shown in the image.
  • Page 3  Five positions are provided to adjust the height in the pole, so that height can be adjusted according your setup requirement. NOTE: It adjusts height in five positions for seated/standing monitor viewing angles. as you can see in images. ...
  • Page 4  Loosen both the knobs of the cross bar, as shown in the image.  Now align the holes of the cross bar to cross tubes, and then insert the crass bar by simply sliding.  After inserting the cross bar, securely re-tighten the knobs, and similarly insert the second cross bar.
  • Page 5  Then insert the rod end cap to secure the cross tube, as shown in the image.  Now, secure it with the help of the provided knob of the pole. Assembly of Vesa Mount  Loosen the knob of the Vesa Mount, as shown in the image.
  • Page 6  Re-tighten the knob of the Vesa Mount and properly secure it with the cross bar.  Follow the same procedure to attach the second Vesa Mount.  Remove the Vesa Mount by loosening the knob attached to it.  Place and attach the Vesa Mount by matching it with the thread hole at the back of the LCD monitor...
  • Page 7 Vesa mount system setup is ready to use. YOUR PROAIM MULTI-MONITOR VESA MOUNT SYSTEM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
