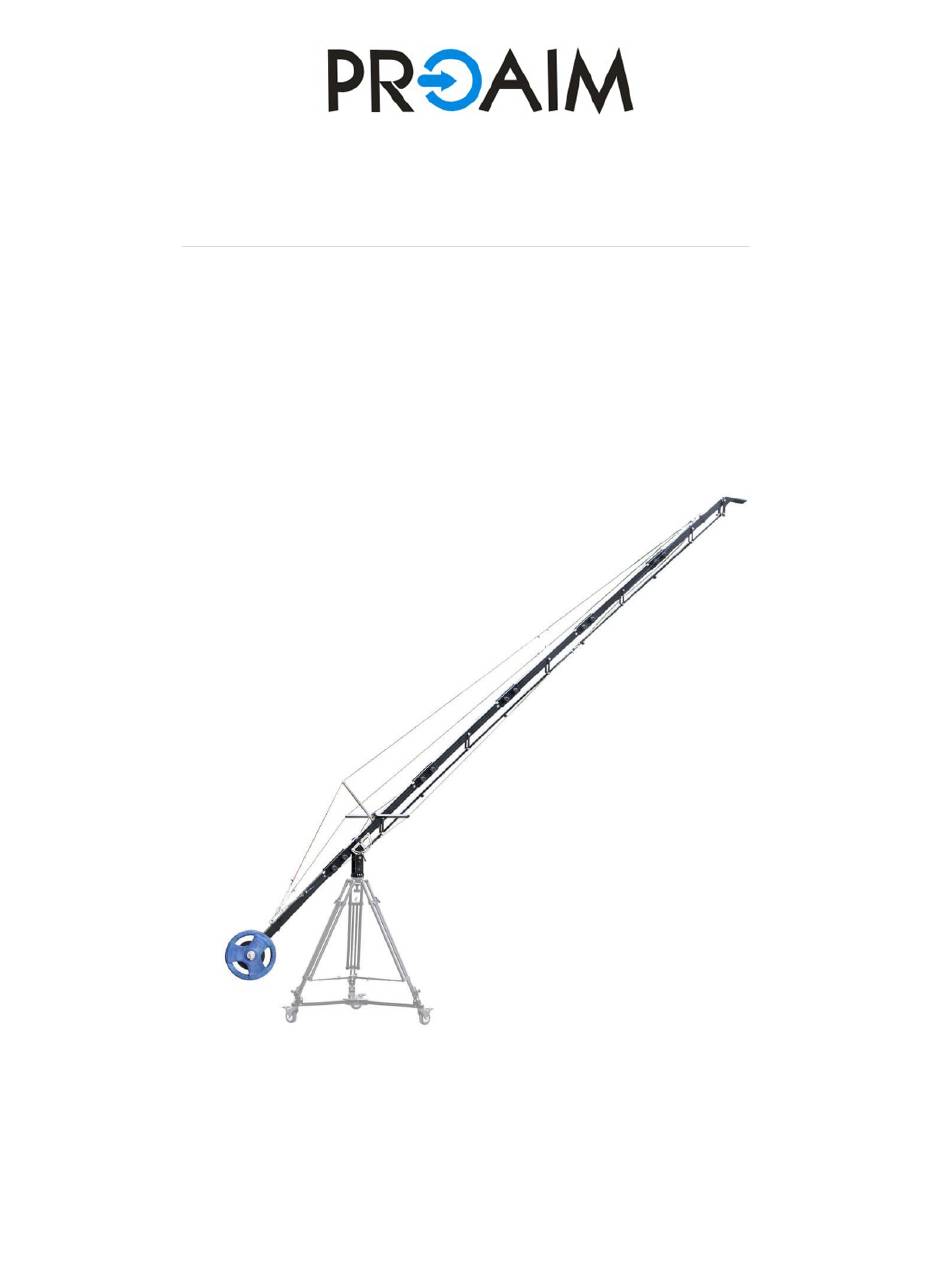

Proaim Alphabet 21ft Jib Crane
(P-A21-J)
I N S T R U C T I O N M A N U A L
For Demonstration only
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by
the applicable copyright statutes or in writing by the Publisher.
Advertisement
Related Manuals for PROAIM P-A21-J
Summary of Contents for PROAIM P-A21-J
- Page 1 Proaim Alphabet 21ft Jib Crane (P-A21-J) I N S T R U C T I O N M A N U A L For Demonstration only All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
- Page 2 Camera Cranes are quite important tools in the world of filmmaking especially when you want to add visual interest to your shots. To achieve this, Proaim introduced Alphabet 21ft Jib Crane Package that is highly stable and gets easily integrated into your shooting style. Along with this, we also kept it lightweight, compact and quick to assemble so that you can use it in various shooting scenarios.
- Page 3 Proaim Alphabet 21ft Jib Crane ASSEMBLING JIB SECTIONS • Install the Hub (Section 2 of Jib) into bowl of your 100 mm tripod stand and tighten the hub with center locking knob.
- Page 4 Proaim Alphabet 21ft Jib Crane ASSEMBLING JIB SECTIONS • Loosen the provided knob at the end of section 2 to slide the bars of section 3 into the end of section 2 • Then tighten both the sections together using the provided knobs.
- Page 5 Proaim Alphabet 21ft Jib Crane A S S E M B L I N G C A B L E S • Now attach one end of 14.5ft blue cable to blue hook on back side of jib (section 3 ) and the other end of blue cable to blue hook on front section of jib (section 1).
- Page 6 Proaim Alphabet 21ft Jib Crane A S S E M B L I N G C A B L E S • Now attach one end of 14.5ft blue cable to blue hook on back side of jib (section 3 ) and the other end of blue cable to blue hook on front section of jib (section 1).
- Page 7 Proaim Alphabet 21ft Jib Crane • Then, attach the other end of red cable to red hook on front section of jib (section 1). A D J U S T I N G T H E W I R E T E N S I O N E R •...
- Page 8 Proaim Alphabet 21ft Jib Crane • Insert the weight rod & weights (not supplied) to both ends and secure with the help of closers. • The central fork has free hole to attach LCD mount bracket (not included) • The camera plate can be tilted upwards & downwards with the help of provided handle.
- Page 9 Proaim Alphabet 21ft Jib Crane M O U N T I N G C A M E R A O N H E A D P L AT F O R M • Camera can be mounted directly on the head platform with the help of provided chuknut.
- Page 10 Proaim Alphabet 21ft Jib Crane B a l a n c i n g C h a r t 1 2 f t j i b Length: 12 ft Camera Plate Length: 0.8 ft Length without Camera Plate: 10.3 ft Length with camera Plate: 11.1 ft (Complete Length)
- Page 11 Length without Camera Plate: 20.6 ft Length with camera Plate: 21.4 ft (Complete Length) Camera Weight Without Camera 15Kg Counter Weight 28Kg (28+4.2)=32.2Kg 91Kg YOUR PROAIM ALPHABET 21FT JIB CRANE ALL DRESSED UP AND GOOD TO GO (SHOWN WITH OPTIONAL ACCESSORIES)
-
Page 12: Warranty
Proaim Alphabet 21ft Jib Crane WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual. Please note that we will not cover any shipping costs for returning the product to us.
