AXIOMTEK UST500-517-FL Series Quick Installation Manual page 2

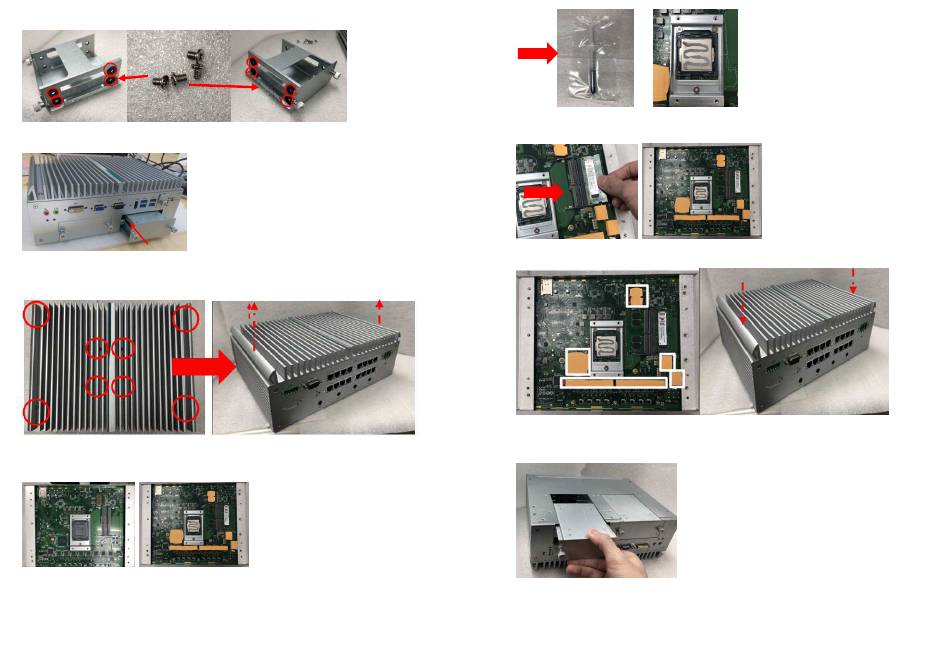

Step 3 Turn the SATA drive upside down to install storage 2 and insert 8 screws to secure the SATA
drive.
Please notice the direction of connector for HDD.
Step 4 Slide the secured SATA drive back to complete the installation.
Installation of SO-DIMM Memory
Step 1 Turn off the system and unplug the power adaptor.
Step 2 Loosen all screws of the heatsink and remove the heatsink from the system.
Step 3 Located the dual SO-DIMM sockets on main board.
Note: Please install the CPU first and use thermal grease evenly on the CPU top face.
2
Step 4
Step 5
Step 6
Note: Please refer to the user's manual to get more detail information.
Installation of mPCIe card
Step 1 Turn off the system and turn it upside down as below shown. Extract the SATA drive as shown.
94174500000E 94174500000E
©
©Copyright 2018 Axiomtek Co., Ltd. Copyright 2018 Axiomtek Co., Ltd.
Version A1 Aug. 2018 Version A1 Aug. 2018
Printed in Taiwan Printed in Taiwan
Locate the memory module, insert a gold-colored contact into the socket and push the module
two end latches till locked.
Make sure all thermal pads are in the correct position.
Put the heatsink back to the system, and fasten screws tight close the chassis.
3
