Power Cable Entry Under The Station

Avoid installing the EVSE in bad weather
conditions.
IMPORTANT:
the protection plate should always remain
over the keyhole.

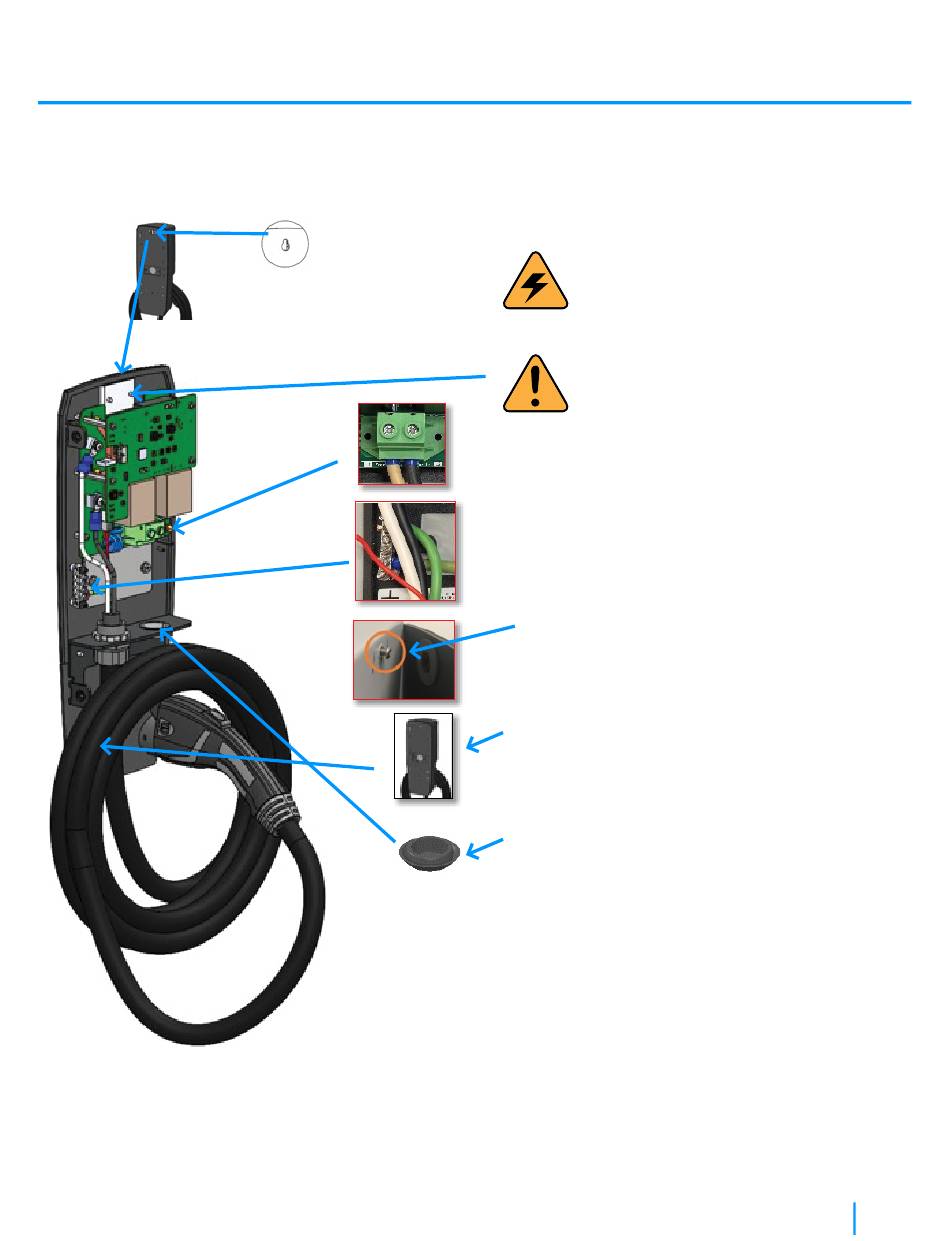

1. Attach the head base to the wall or the post with
an anchoring apparatus that can withstand at least
56.7 Kg. (125 pound) per anchor point (2), in the
vertical and horizontal direction.
2. Hang the head base to the upper anchor
(previously fixed to the wall or post) via the keyhole
at the top. When doing so, ensure that there is a
'tight-fit"' such that there is not gap between the
gasket and the mounting wall.
3. Complete the mounting of the head base by
screwing a mounting bolt through the bottom
hole behind the illustrated cable, in the bottom
anchor point.
4. Remove the hole cover and attach the cable
connector to the hole from the bottom, then insert
the power cable. Make sure the conductors are
long enough to reach the terminal block.
5. Connect two power conductors (L1 and L2) and
the ground conductor (GND).
6. The grounding conductor shall be connected to
the terminal ground.
