Preliminary Tests and Commissioning

Instructions

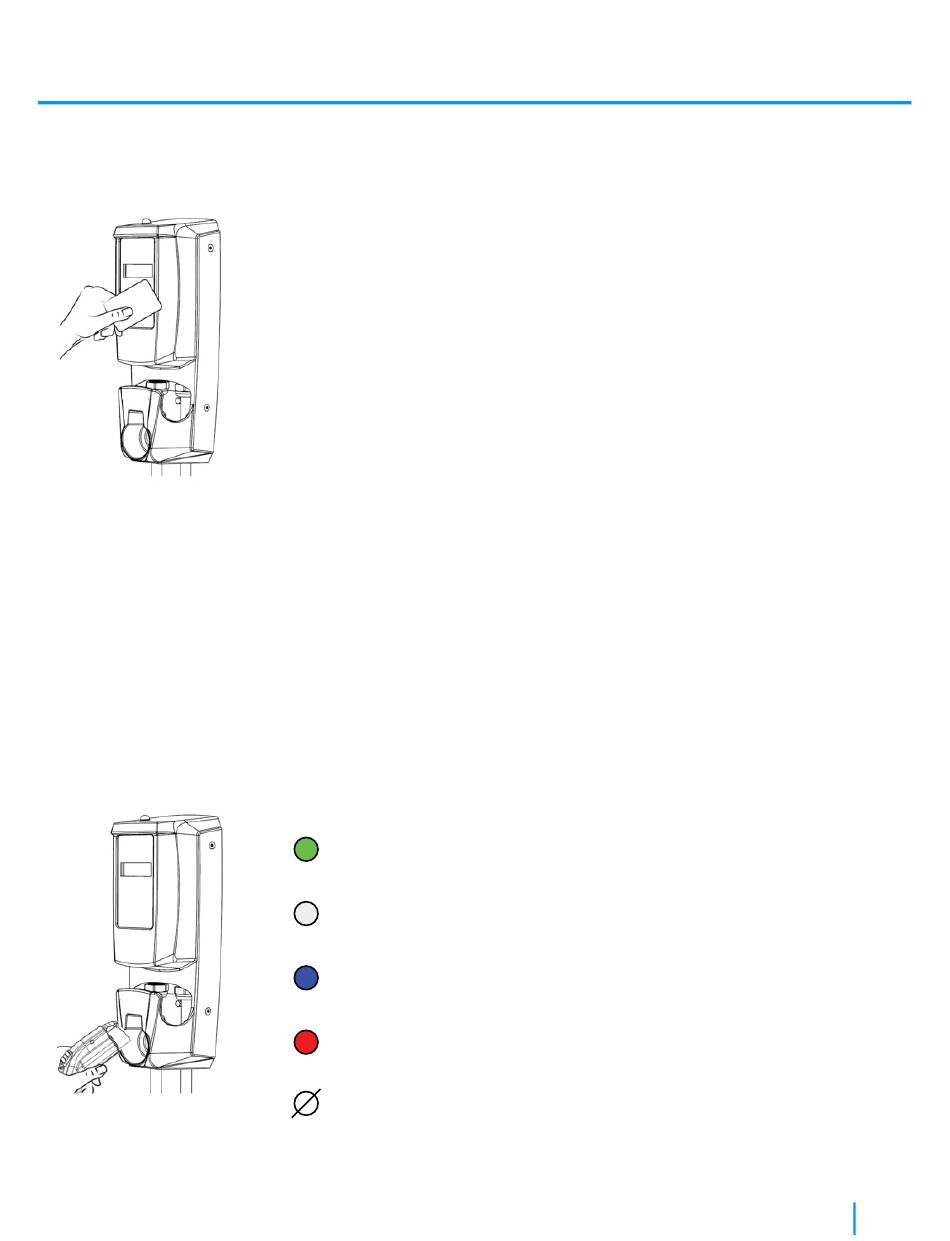

• Apply power to the charging station, the following should be observed
immediately after power is turned on:
1: The status light is on continuously; its color will be green.
2: The display shows the greeting message.
• Scan the access card provided with the charging head, these results should
be observed:
1: Once the reader detects the card, it will emit an audible beep.
2: Immediately after the beep, the access card will be authenticated by
the charging station.
3: If the authentication of the card is successful, the automated test of the
protection circuit will be performed.
4: Once the test is successfully completed, the overhead status light will
start flashing (white).
5: If the connector is inserted into an Electrical Vehicle, it will begin
charging, if not, after 1 minute, the station will be in wait mode.
• Once the preliminary test is successfully passed, the charging station can then
be used as a private charging station (using the provided access card(s)), or to
be connected to AddEnergie's management system by turning on the
communication Gateway provided by AddEnergie.

Station Status Light Indicator

Green
Solid color: Ready for session activation
White
Blinking: Session authenticated, ready to plug into EV
Blue
Solid color: Plugged in and energy being delivered
Red
Solid color: Critical fault
Off
Out of Service
CoRe+ Max TM Installation Manual
14
