Home Styles 88 5662 89 Quick Start Manual

88 5662 89

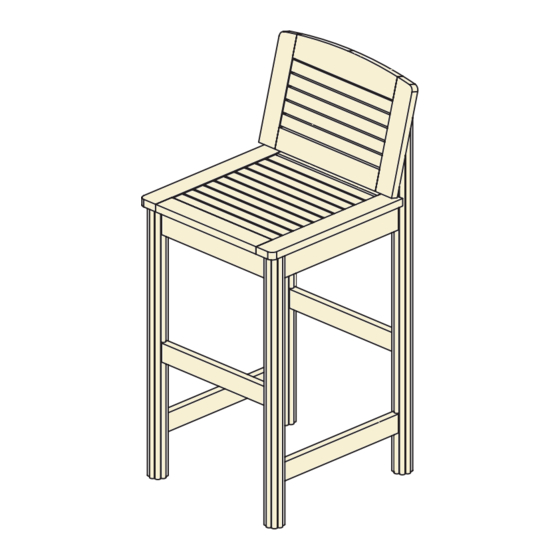

Bar Stool
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

Part List

C.
Leg
1 Pc.
D.
Leg
1 Pc.

Hardware List

M8x32
Wood Screw
6 Pcs. (+1 extra)
Spring Washer
10 Pcs. (+1 extra)
Tools required for assembly : Phillips screwdriver
A.
Back Rest
1 Pc.
M6x45
Head Cap Bolt (short)
2 Pcs. (+1 extra)
Flat Washer
10 Pcs. (+1 extra)
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
E.
Stretcher
1 Pc.
M6x55
Head Cap Bolt (middle)
4 Pcs. (+1 extra)
M4
Small Hex Wrench
1 Pc
B.
Seat
1 Pc.
F.
Stretcher
2 Pcs.
M6x95
Head Cap Bolt (long)
4 Pcs. (+1 extra)
M4
Hex Wrench
1 Pc.
