88 5661 25L
Montego Bay

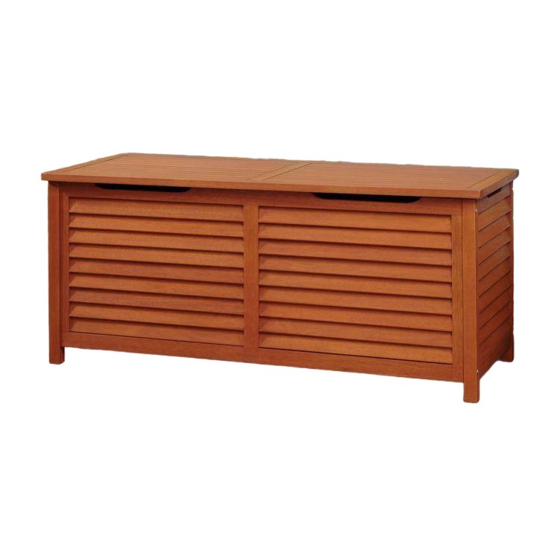

Large Deck Box
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
PART LIST
A.
Seat
1 pc.
B.
Front Panel
1 Pc.
C.
Back Panel
1 Pc.
HARDWARE LIST
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
Tools Required For Assembly : Phillips screwdriver
D.
Side Panel
1 pc.
Head Cap Bolt (short)
Wood Screw
4 pcs. (+1 extra)
19 pcs. (+1 extra)
Head Cap Bolt (long)
8 pcs. (+1 extra)
E.
Side Panel
1 pc.
F.
Bottom Panel
1 Pc.
Steel Plate B
Support
2 Pcs.
2 pcs.
Steel Plate A
2 Pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Montego Bay 88 5661 25L and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Styles Montego Bay 88 5661 25L

  • Page 1 88 5661 25L Montego Bay Large Deck Box IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
  • Page 2 Assembly Instructions IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Use a soft cloth between these parts and the floor.
