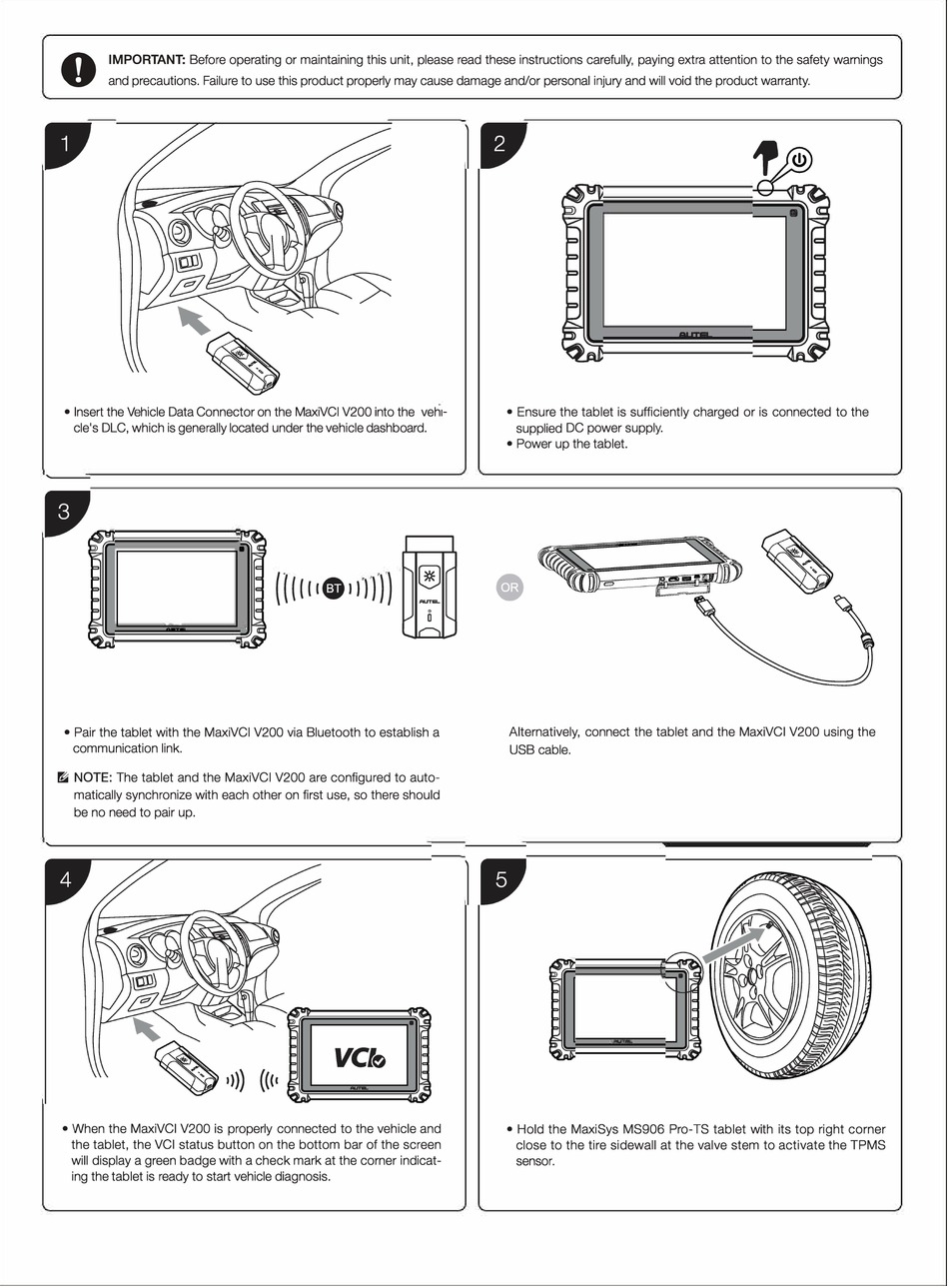

IMPORTANT: Before operating or maintaining this unit, please read these instructions carefully, paying extra attention to the safety warnings
and precautions. Failure to use this product properly may cause damage and/or personal injury and will void the product warranty.
• Insert the Vehicle Data Connector on the MaxiVCI V200 into the veh1
cle's DLC, which is generally located under the vehicle dashboard.
□-
• Pair the tablet with the MaxiVCI V200 via Bluetooth to establish a
communication link.
区NOTE: The tablet and the MaxiVCI V200 are configured to auto­
matically synchronize with each other on first use, so there should
be no need to pair up.
• When the MaxiVCI V200 is properly connected to the vehicle and
the tablet, the VCI status button on the bottom bar of the screen
will display a green badge with a check mark at the corner indicat­
ing the tablet is ready to start vehicle diagnosis.
• Ensure the tablet is sufficiently charged or is connected to the
一
supplied DC power supply.
• Power up the tablet.
。
Alternatively, connect the tablet and the MaxiVCI V200 using the
USB cable.
• Hold the MaxiSys MS906 Pro-TS tablet with its top right corner
close to the tire sidewall at the valve stem to activate the TPMS
sensor.
