ChApter 2: instAllAtion

CONNECTING YOUR CONFERENCE PHONE

Connect the Connection cable from the Link Out jack on the base unit to the Link In jack on the conferencing pod
(see figure 2.1).
Warning: do not plug a laptop or pC into the Link Out jack on the base unit or conferencing pod as
severe electrical damage could occur.
Connect the base unit to the ethernet jack using the ethernet cable.
Connect the power cord to the base unit and plug it directly into an electrical outlet.

CONNECTING ADDITIONAL MAX IP RESPONSE POINT PHONES

Connect the 12' Connection cable to the Link Out jack on the first phone and to the Link In jack on the second
phone (see figure 2.2).
25' Connection cable
Continue linking additional mAX ip response point phones in the same fashion. A total of four units may be
connected.
4 technical services: 800-283-5936
From Link Out
To Link In
To Link Out on Base Unit

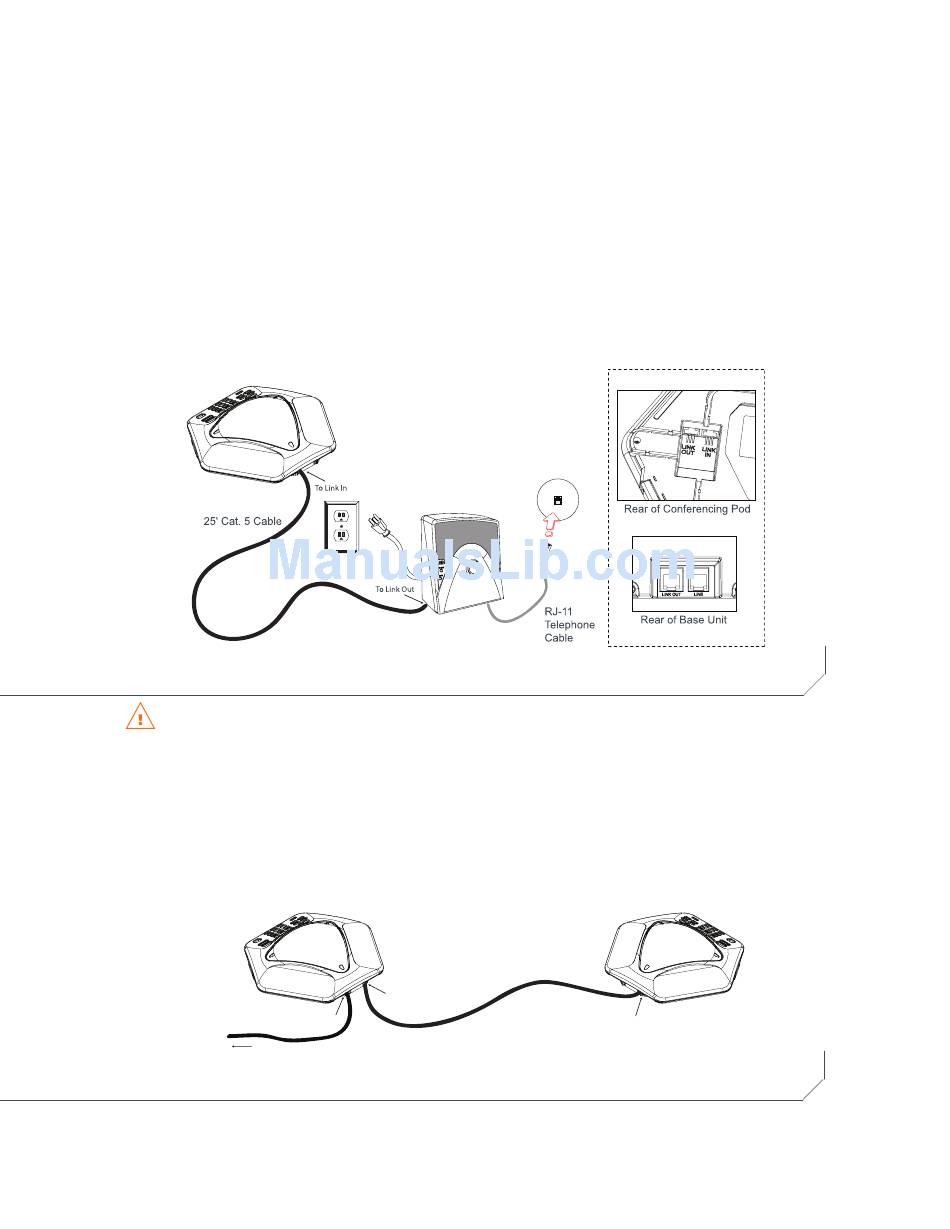

figure 2.1 Connecting the mAX ip response point
12' Connection cable
To Link In
figure 2.2 Connecting additional units
