Introduction
Feature
Line pull:
Wire rope:
Brake:
Clutch:
Control:
Unpacking
．Winch assembly.............................................................. 1 pc
．Handlebar trigger switch kit .............................................. 1 pc
．4 way roller fairlead.......................................................... 1 pc
．Wire rope with safety hook................................................. 1 pc
．Colour coded wirings and 6 gauge battery lead ..................... 1 pc
．Base plate ..................................................................... 1 pc
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Quantity for each part
Installation
Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
680 kg / 1,500 lb wire rope first layer
4 mm x 15.2 m (5/32" x 50') galvanized aircraft A7 × 19
Mechanical and dynamic brake for 100% braking
Turn the shifter for rapid wire rope payout
Handlebar trigger switch to power the winch
Model:
．Serial number
．Replacement part number

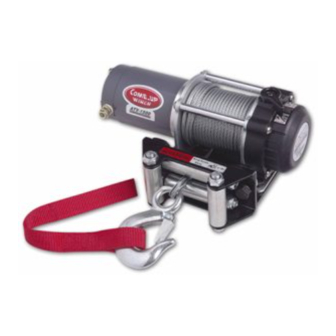

ATV Winch
ATV-1500
PN: 122391 12V DC
Advertisement
Table of Contents
Related Manuals for Comeup ATV-1500
Summary of Contents for Comeup ATV-1500
- Page 1 ATV Winch ATV-1500 Model: PN: 122391 12V DC Introduction Feature Line pull: 680 kg / 1,500 lb wire rope first layer Wire rope: 4 mm x 15.2 m (5/32" x 50') galvanized aircraft A7 × 19 Brake: Mechanical and dynamic brake for 100% braking...
- Page 2 Wire rope replacement ． It is very important that the winch will be mounted on a flat and hard surface of mounting channel in order to make sure the motor, drum and gearbox housing are aligned correctly. ． Roller fairlead does not mount to winch directly. ．...
- Page 3 Warning ． The winch is not intended to be used in any manner for the movement or lifting of personnel. ． The pulling capacity shown is based on the first layer of rope on the drum. ． The rope winding on the drum shall remain 5 wraps from the drum. Handlebar Trigger Switch Mounting Handlebar mounted trigger switch can be operated without removing your hand from the grip.
- Page 4 Winch Assembly...
