Comeup DV-15 Manual

Introduction

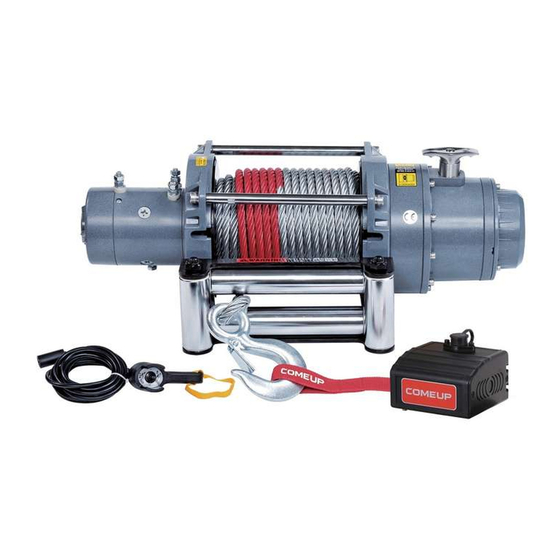

Feature

Line pull: 6,804 kg / 15,000 lb wire rope first layer
Wire rope: 11.1 mm × 27 m (7/16" × 89') galvanized aircraft
6 × 29 - IWRC
Brake: Patented cone brake holds full load
Clutch: Turn the T-handle for rapid wire rope payout
Control: Handheld pendant switch powers the winch

Unpacking

．Winch assembly............................................................... 1 pc
．Detachable control box...................................................... 1 pc
．Remote control................................................................ 1 pc
．Wire rope with hook except for PN:857329 & 857437............... 1 pc
．Roller fairlead.................................................................. 1 pc
．1.8 m ( 6' ) 2 gauge battery lead.......................................... 1 pc
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.

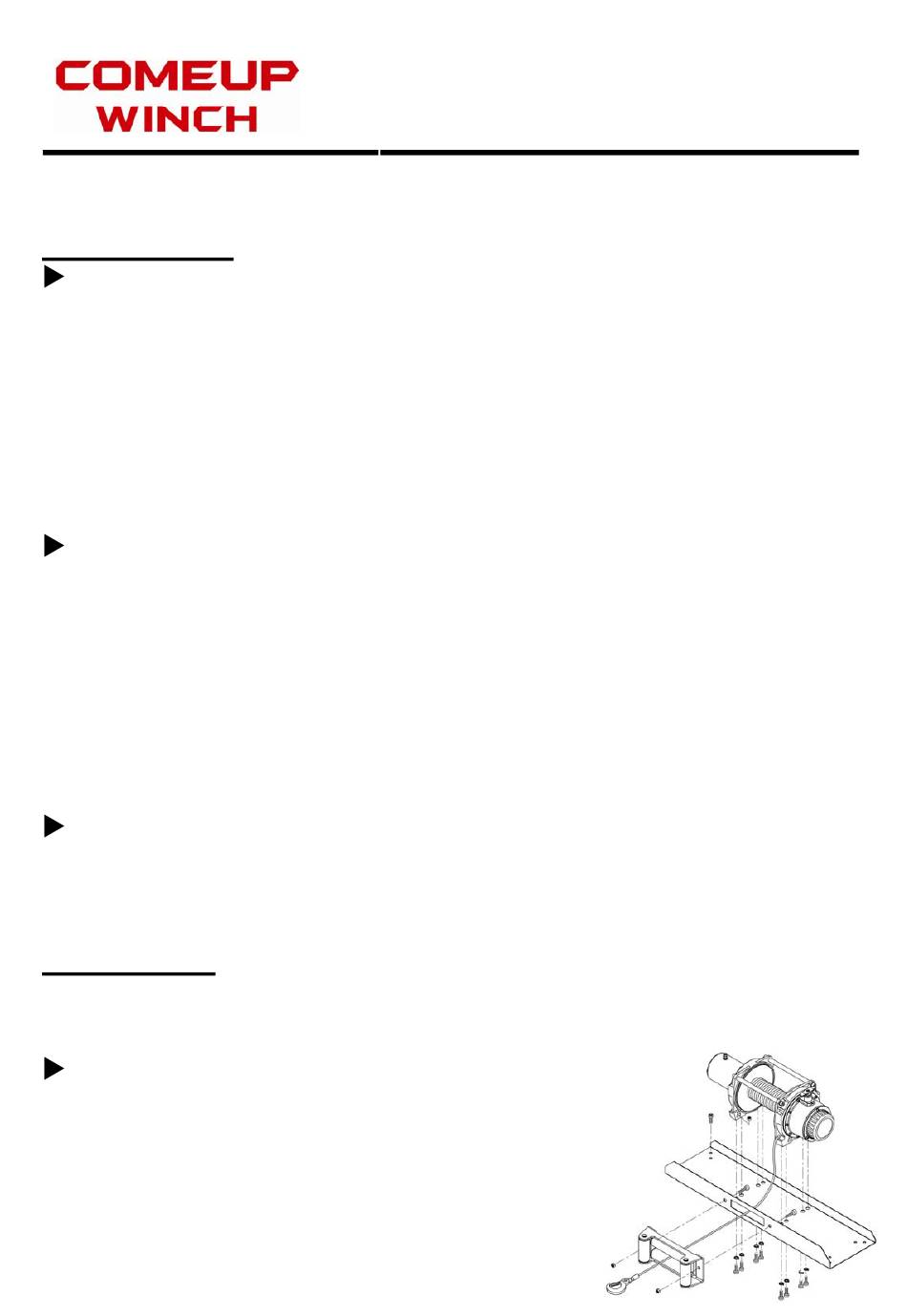

Winch and roller fairlead mountings
． It is very important that the winch will be
mounted on a flat and hard surface of
mounting channel in order to make sure the
motor, drum and gearbox housing are aligned
correctly.
． Roller fairlead does not mount to the winch
Self-Recovery Winch
Model:
PN: 857326 12V 857329 12V
857433 24V 857437 24V
DV-15
