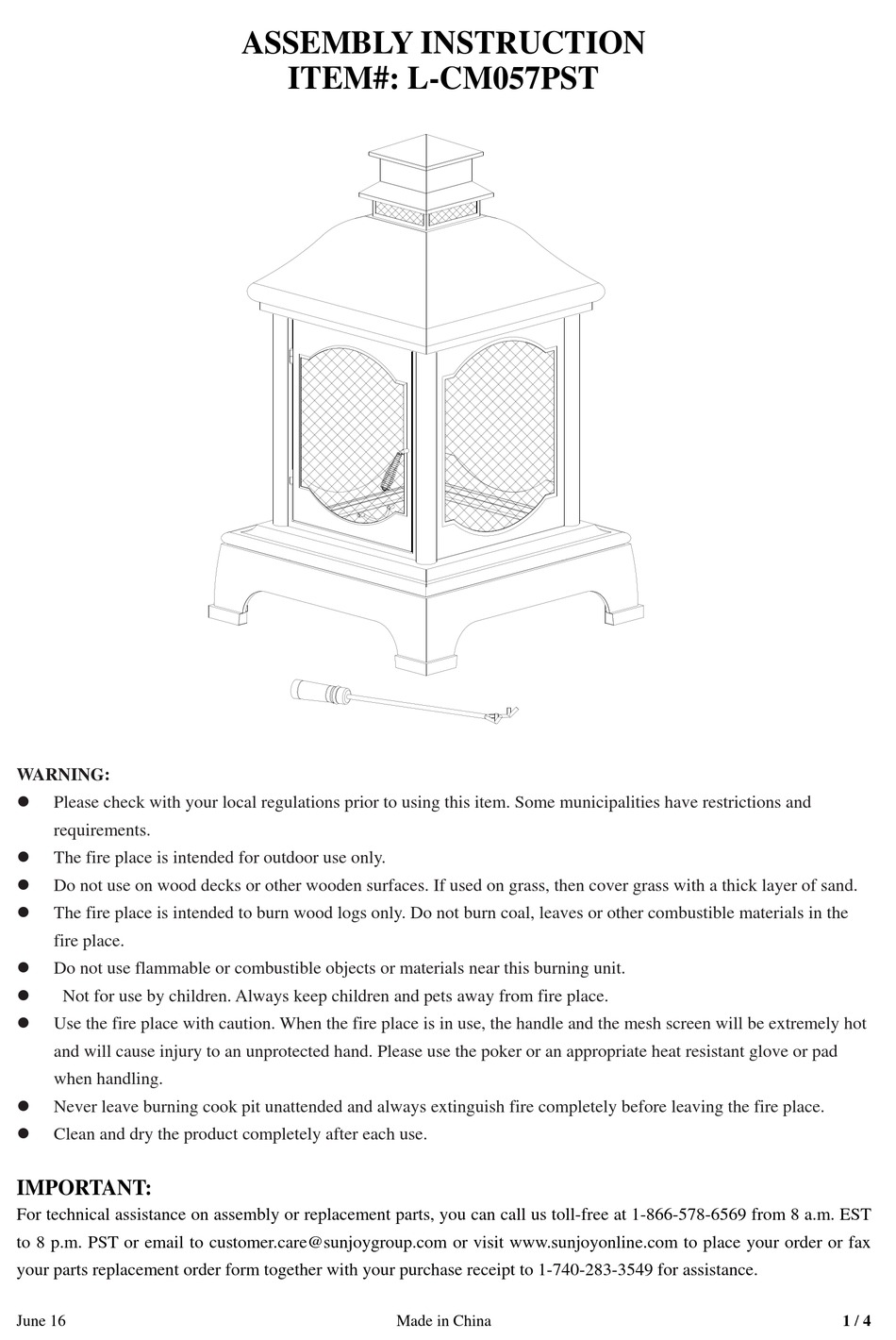

Sunjoy L-CM057PST Assembly Instruction
Hide thumbs Also See for L-CM057PST:

Advertisement

Quick Links

WARNING:
Please check with your local regulations prior to using this item. Some municipalities have restrictions and
requirements.
The fire place is intended for outdoor use only.
Do not use on wood decks or other wooden surfaces. If used on grass, then cover grass with a thick layer of sand.
The fire place is intended to burn wood logs only. Do not burn coal, leaves or other combustible materials in the
fire place.
Do not use flammable or combustible objects or materials near this burning unit.
Not for use by children. Always keep children and pets away from fire place.
Use the fire place with caution. When the fire place is in use, the handle and the mesh screen will be extremely hot
and will cause injury to an unprotected hand. Please use the poker or an appropriate heat resistant glove or pad
when handling.
Never leave burning cook pit unattended and always extinguish fire completely before leaving the fire place.
Clean and dry the product completely after each use.
IMPORTANT:
For technical assistance on assembly or replacement parts, you can call us toll-free at 1-866-578-6569 from 8 a.m. EST
to 8 p.m. PST
or email to customer.care@sunjoygroup.com or visit www.sunjoyonline.com to place your order or fax
your parts replacement order form together with your purchase receipt to 1-740-283-3549 for assistance.
June 16
ASSEMBLY INSTRUCTION
ITEM#: L-CM057PST
Made in China
1 / 4
