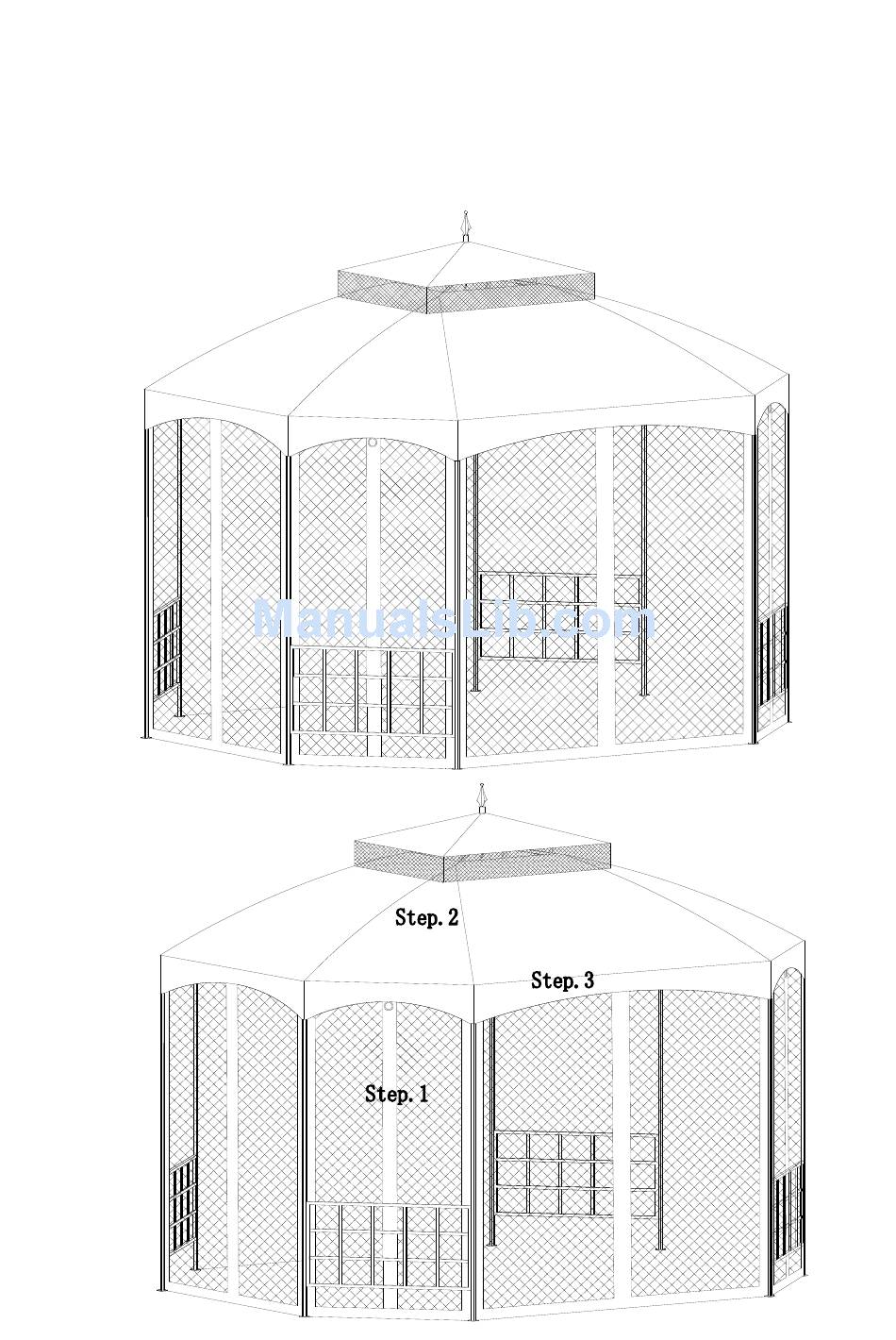

- Page 1 Sienna Gazebo instruction manual Item #: L-GZ240PST-A SKU #: 210020338...
- Page 2 IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to assemble. 1. When installing and assembling your gazebo, it is recommended that 2 or more adults are involved. 2. Do not use the unit during an electrical storm, as there is a remote chance of getting struck by lightening.
- Page 3 Parts List Small top connector Big top connector Finial Hook Side top connector 1 Side top connector 2 Side pole 1 Side pole 2 Arch bar 1 Arch bar 2 Arch bar 3 Pole 1 Pole 2 Screen Small canopy Large canopy Mosquito netting...
- Page 4 Hardware Pack 1 M5*15 Bolt 32 PCS M5 Washer 48 PCS M5*35 Bolt 16 PCS M5 Wrench 1 PCS Fig.1: Attach Arch bar 1 (F) to Pole 1 (I) & Pole 2 (J) by M5*15 Bolt (AA) and M5 Washer (BB). (Notes: The hole on the Arch bar 1(F) should face outward while attaching Arch bar 1 (F) Fig.2: Attach Screen (K) to Pole 1 (I) &...
- Page 5 Hardware Pack 2 Ф6*180 Peg 16 PCS M5 Washer 8PCS M5*35 Bolt 4 PCS M5 Nut 4 PCS Fig.5: Insert Side top connector 2 (C2) to Big top connector (A2) and attach Hook (B2) to Big top connector (A2). Fig.6: Insert Side pole 1 (D) and Side pole 2(E) into Side top connector 2(C2). Fig.7: Insert Side pole 2 (E) to the other end of Pole 1 (I) &...
- Page 6 Hardware Pack 3 Plastic tie 48 PCS Fig.11: Hang Mosquito netting (N) to Arch bar H (F, G) by Plastic tie (FF).
- Page 7 3. Warranty does not cover damage due to extreme weather conditions. CUSTOMER SERVICE Sunjoy Industries warrants to the original purchaser that this item is free from defects in workmanship and materials of your item provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
