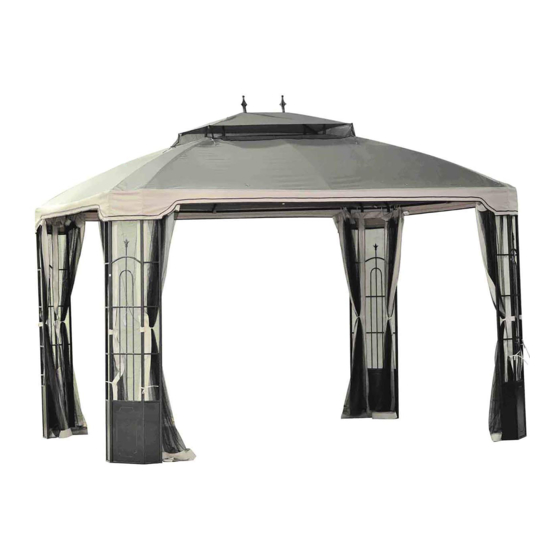

Window Bay Gazebo
ITEM#: L-GZ120PST
SKU#: 210017 8 7 6
IMPORTANT:
Please read and follow all safety statements, warnings, assembly instructions, use & care
directions before attempting to assemble.
1. When installing and assembling your gazebo,
it is recommended that two or more adults
are involved.
2. Do not use the unit during an electrical storm, as there is a remote chance of getting
struck by lightening.
3. Do not climb on top of the gazebo. Falling off the gazebo can result in serious injury,
possibly even death.
4. Do not leave the gazebo assembled when there is a risk of high wind, as possible
damage will occur to the structure.
5. Never barbecue under this gazebo or use lanterns that contain naked flames.
6. This package contains small items and plastic bags that should be kept away from
children.
7 Ensure that all connectors & poles are firmly secured in position fully. It is important to do
so before use so as to avoid collapsing or damage to the item, which could result in injury.
8. WARNING: Keep all flame and heat sources away from this tent fabric. This tent is
made with fabric that meets CPAI – 84 specifications for flame resistance. It is not fire
proof. The fabric will burn if left in continuous contact with any flame source. The
application of any foreign substance to the tent fabric may render the flame-resistant
properties ineffective.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-GZ120PST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunjoy L-GZ120PST

  • Page 1 Window Bay Gazebo ITEM#: L-GZ120PST SKU#: 210017 8 7 6 IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to assemble. 1. When installing and assembling your gazebo, it is recommended that two or more adults are involved.
  • Page 2 Checking List Panel Long beam1 Long beam2 Short beam1 Short beam 2 Second roof connector Second roof connector Second roof slat Arc tube for the second roof Second roof canopy Top roof connector Top roof brace Top roof canopy Decorative top Mosquito net Assemble assistant tool require: ladder and hammer are not included...
  • Page 3 STEP1 Hardware Pack 1 16pieces (AA) M6×15mm screw 16pieces (CC) M6 washer 12pieces (BB) M5×15mm screw 12pieces (DD) M5 washer (W2) M6/M5 Wrench 1 piece Insert B1 into Insert D1 into E1, then then tight tight those using those using Bolt Bolt BB and washer washer DD.
  • Page 4 STEP2 Hardware Pack 2 8 pcs (BB) M5 ×15mm screw 8 pcs (DD) M5 washer Insert A2 into then assembled tight those using top onto Bolt A1 , insert washer DD. E2 into A1 Fig1 Fig3 Fig2 Insert E2 into B2 Fig4 Fig5 Insert C2 into B2 (or...
  • Page 5 STEP3 Attach Decorative top D3 to the assembled Insert B3 into A3. top roof canopy(C3) Attach the top roof to the second roof, insert B3 into B2. Knot the tie and the second roof canopy...
  • Page 6 STEP4: 8 pcs (GG)stake 48 pcs (HH)Plastic ring for mosquito net 2.Button rings (HH) on S3 1. Use GG to fix the posts on the ground. Now your gazebo is ready for use.
  • Page 7 If you are within or beyond the return policy that most stores have, and need tech. assistance or replacement parts, please call Sunjoy Industries at 1(866) 578-6569 from 8:30 am to 5:30 pm eastern standard time or e-mail to Biglots@sunjoygroup.com or fax your parts replacement order form together with the purchase receipt to 1 (740) 283-3549 for assistance.
