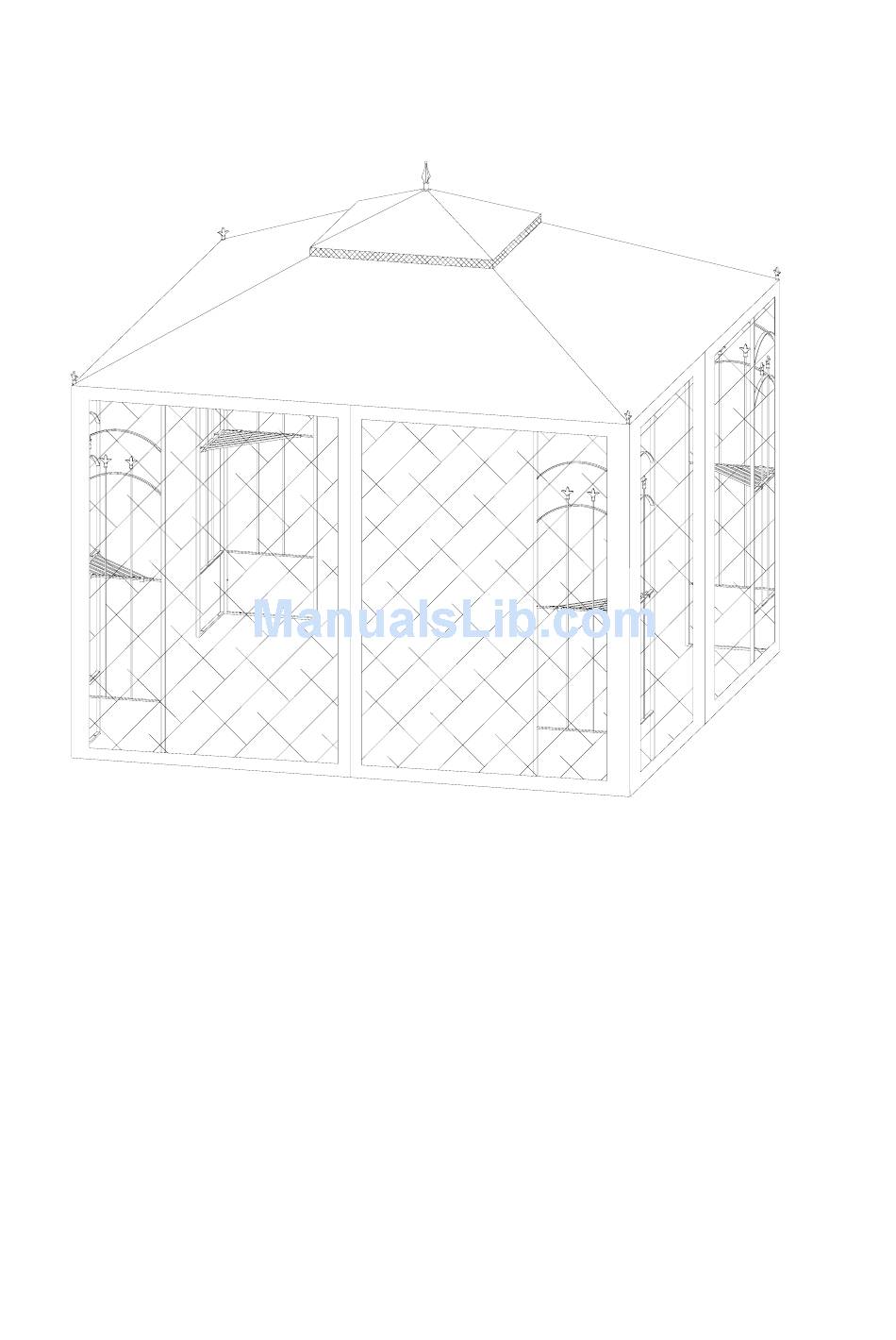

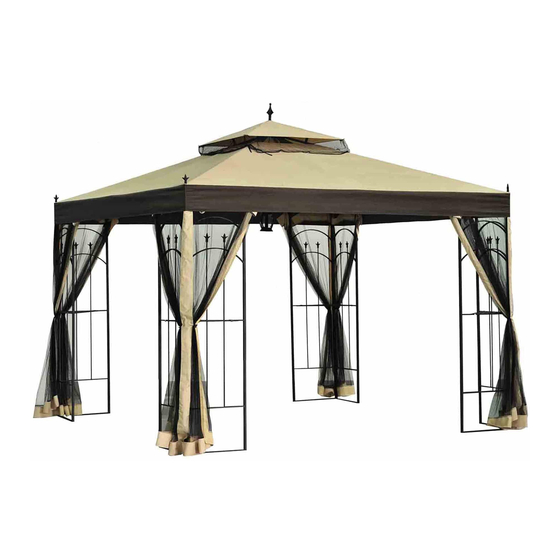

Double Arch Gazebo Instruction manual
Item #: L-GZ038PST-3
SKU #: 210018672
IMPORTANT:
Please read and follow all safety statements, warnings, assembly instructions, use & care directions before
attempting to assemble.
1. When installing and assembling your gazebo, it is recommended that 2 or more adults are involved.
2. Do not use the unit during an electrical storm, as there is a remote chance of getting struck by lightening.
3. Do not climb on top of the gazebo. Falling off the gazebo can result in serious injury, possibly even death.
4. Do not leave the gazebo assembled when there is a risk of high wind, as possible damage will occur to the
structure.
5. Never barbecue under this gazebo or use lanterns that contain naked flames.
6. This package contains small items and plastic bags that should be kept away from children.
7. Ensure that all connectors & poles are firmly secured in position fully. It is important to do so before use so
as to avoid collapsing or damage to the item, which could result in injury.
8. WARNING: Keep all flame and heat sources away from this tent fabric. This tent is made with fabric that
meets CPAI – 84 specifications for flame resistance. It is not fire proof. The fabric will burn if left in continuous
contact with any flame source. The application of any foreign substance to the tent fabric may render the
flame-resistant properties ineffective.
Advertisement
Table of Contents
Related Manuals for Sunjoy L-GZ038PST-3
Summary of Contents for Sunjoy L-GZ038PST-3
- Page 1 Double Arch Gazebo Instruction manual Item #: L-GZ038PST-3 SKU #: 210018672 IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to assemble. 1. When installing and assembling your gazebo, it is recommended that 2 or more adults are involved.
- Page 2 Parts List Screen 1 Screen 2 Pole Big Top Long Pole Connector Big Top Long Pole Big Top Short Pole Big Top Connector Small Top Pole Small Top Connector Cornor Shelf Finial Decorative Finial Hook Candle Holder Big Canopy Small Canopy Mosquito Netting...
- Page 3 Hardware Pack1 M6×20 Bolt 16 pcs M6×32 Bolt 12 pcs M6 Washer 28 pcs M6 Wrench 1 pc Step1 Fig.2 Fig.3 Fig.1 Fig.1 CC AA Fig.2 Fig.3 Fig.1: Connect Screen 1(A) and Screen 2(B) by M6 Washer (CC) and M6×32 Bolt (BB). Fig.2: Attach Pole (C) to Screen 1(A) and Screen 2(B) by M6 Washer (CC) and M6×20 Bolt (AA).
- Page 4 Hardware Pack2 M6×20 Bolt 4 pcs M6 Washer 4 pcs M6 Wrench Fig.8 Step2 Fig.9 Fig.6 Fig.5 Fig.4 Fig.7 Fig.4 Fig.5 Fig.6 Fig.4: Insert Big Top Long Pole Connector (D) into Screen 1(A) and Screen 2(B). Fig.5: Insert Big Top Long Pole (E) into Big Top Long Pole Connector (D). Fig.6: Hang up the Hook (M) to Big Top Connector (G), then insert Big Top Long Pole (E) and Big Top Short Pole (F) into Big Top Connector (G).
- Page 5 Hardware Pack3 ∮6×180mm Stake 16pcs Plastic Tie 40pcs Touch Up Paint Fig.10 Step3 Fig.12 Fig.11 Fig.13 Fig.14 Fig.13 Fig.10 C(A/B) Fig.11 Fig.10: Place the Small Canopy (P) onto the Small Top, then place Finial (K) onto Small Top Connector (I). Fig.11: Place the Big Canopy (O) onto the Big Canopy, Fig.12 then place Decorative Finial (L) onto Big Top Long...
- Page 6 If you are within or beyond the return policy that most stores have, and need tech. assistance or replacement parts, please call Sunjoy Industries at 1(866) 578-6569 from 8:30 am to 5:30 pm eastern standard time or e-mail to Biglots@sunjoygroup.com...
