Assembly INSTRUCTIONS
ITEM # L-GZ098PST-1

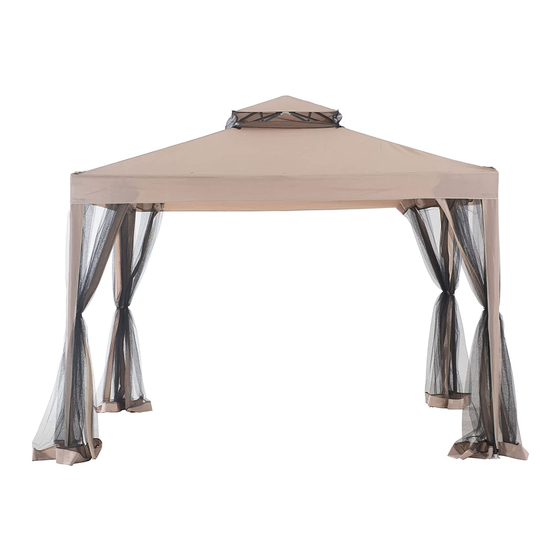

10'x10' HAMPTON GAZEBO
I
MPORTANT:
1. When installing and assembling your gazebo, it is recommended that 4 or more adults are involved.
2. Do not use the unit during an electrical storm, as there is a remote chance of getting struck by lightning.
3. Do not climb on top of the gazebo. Falling off the gazebo can result in serious injury, possibly even death.
4. Do not leave the gazebo assembled when there is a risk of high wind, as possible damage will occur to the structure.
5. Never barbecue under this gazebo or use lanterns that contain open flames.
6. This package contains small items and plastic bags that should be kept away from children.
7. Ensure that all connectors & poles are firmly and fully secured in position. It is important to do so before use so as to
avoid collapsing or damage to the item, which could result in injury.
1 of 4
