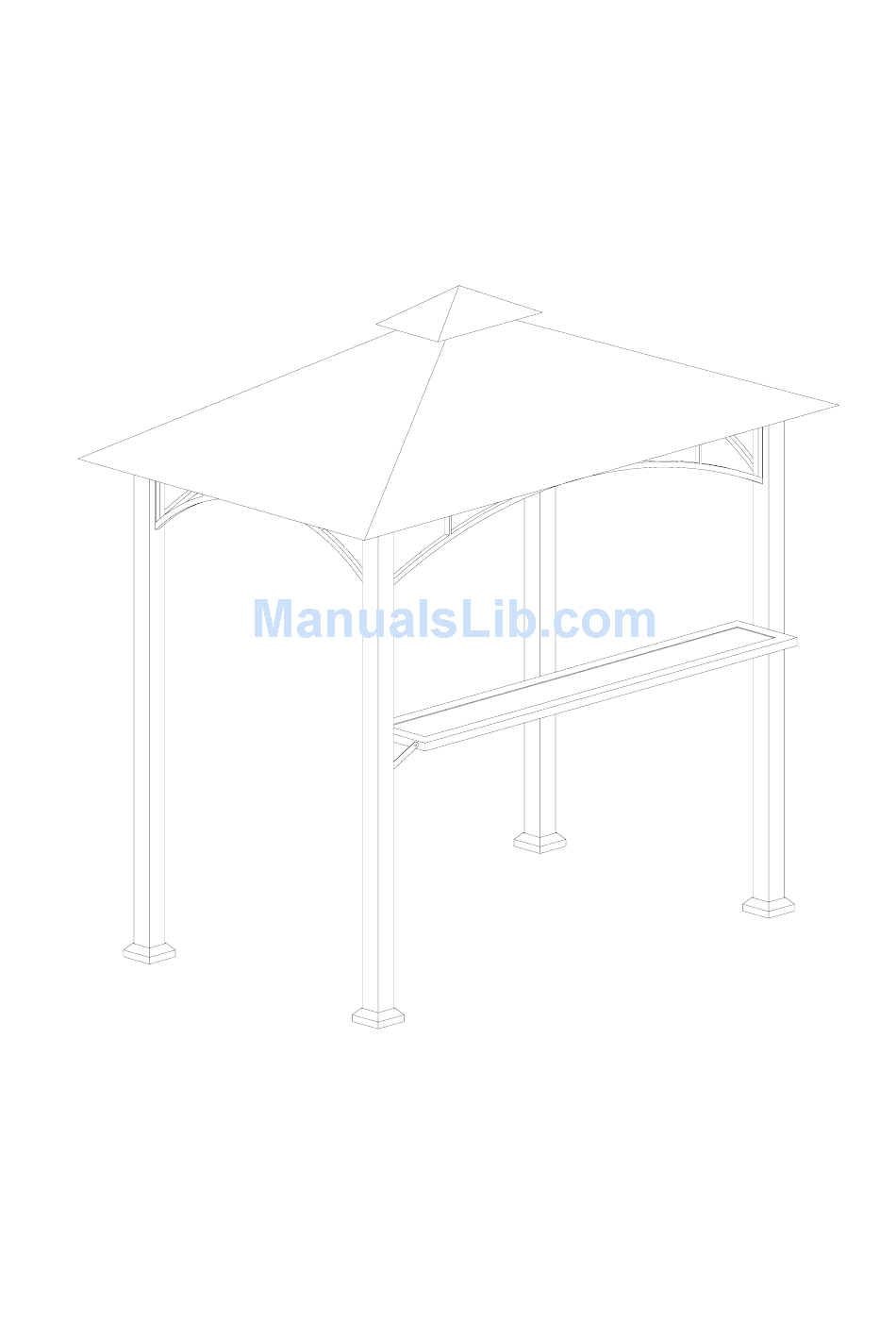

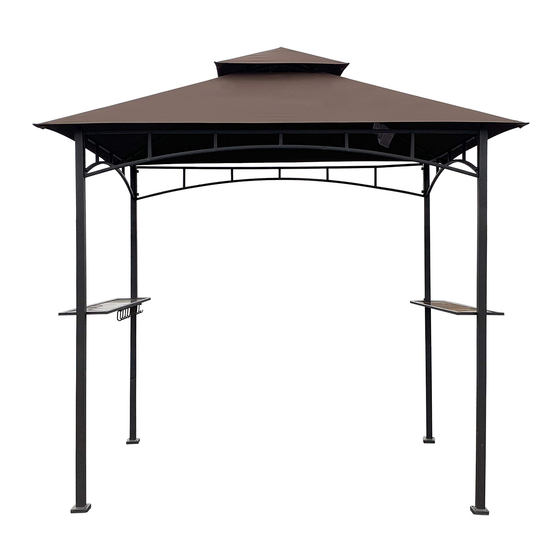

- Page 1 ASSEMBLY INSTRUCTION ITEM# L-GZ238PST BBQ SHELTER...
- Page 2 IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use& care directions, before attempting to assemble. WARNING: • THIS UNIT IS HEAVY! • Do not assemble this item alone for safety. Two persons are necessary. • Some parts may contain sharp edges – especially as noted in manual. Wear protective gloves if necessary. •...
- Page 3 Parts List Pole 1 Pole 2 Pole 3 Base Base cover Big Top Pole Big Top Connector Small Top Connector Small Top Pole Long Screen Short Screen Tabletop Support pole Hook Top Canopy Canopy...
- Page 4 Hardware Pack 1 M6X15 Bolt 8 PCS M6 Washer 56 PCS M6X15 Bolt 16 PCS M6X30 Bolt 4 PCS M6 Nut 8 PCS M6X40 Bolt 4 PCS M6 Wrench 1 PC...
- Page 5 Fig.1: Insert Pole 1 (A1)& Pole 2 (A2) & Pole 3 (A3) to Base cover (C), then use M6X15 Bolt (AA) and M6 Washer (BB) to connect Base(B) and Pole 1 (A1)& Pole 2 (A2) & Pole 3 (A3). Fig.2: Connect Long Screen(H) and Short Screen(I) to Pole 1 (A1)& Pole 2 (A2) & Pole 3 (A3）by using M6X15 Bolt (CC) and M6 Washer (BB).
- Page 6 Hardware Pack 2 M6X15 Bolt 2 PCS M6 Washer 4 PCS M6X30 Bolt 2 PCS Φ8*180MM Stake 8 PCS Fig.7: Assemble the Top Canopy (M) then wrap the Canopy(N); attach Support pole (K) to Tabletop (J) by using M6X15 Bolt (AA) and M6 Washer (BB).
- Page 7 Fig.8: Attach J to Pole 2 (A2) & Pole 3 (A3) by using M6X30 Bolt (DD) and M6 Washer (BB) Fig.9: Fix Support Pole(K) to Pole 2 (A2) & Pole 3 (A3), then insert the pin on the pole into the hole at the end of the Support Pole (K) .
- Page 8 This warranty gives you specific rights, and you may also have other rights, which vary from state to state. CUSTOMER SERVICE: Please do not return this product to the store. For technical assistance on assembly or replacement parts call Sunjoy Industries at 1(866) 578-6569 from 8:30 AM to 5:30 PM EST or Email fredmeyer@sunjoygroup.com for assistance.
