3-2
Chapter 3: Configuring the 1746sc-CTR4/CTR8
User's Manual Pub. 0300181-07 Rev. A

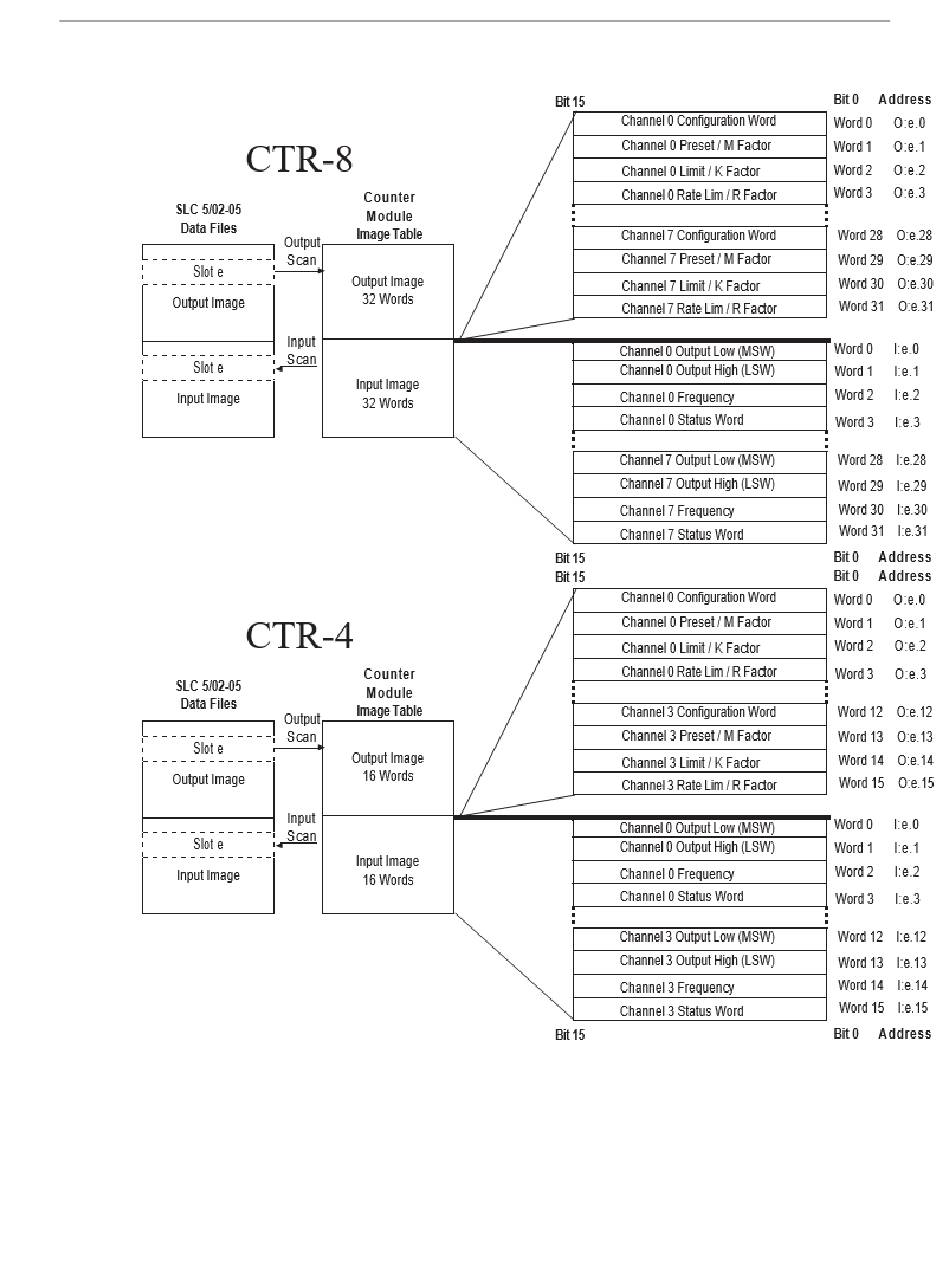

Figure 3-1. Image Table
Output Image - Configuration Words
Thirty-two (CTR-8) or sixteen (CTR-4) words of the SLC processor's output
image table are reserved for the module. For the CTR8, output image words 0-31
are used to configure input channels 0-7. For the CTR4, output image words 0-15
