Table of Contents

H-1918

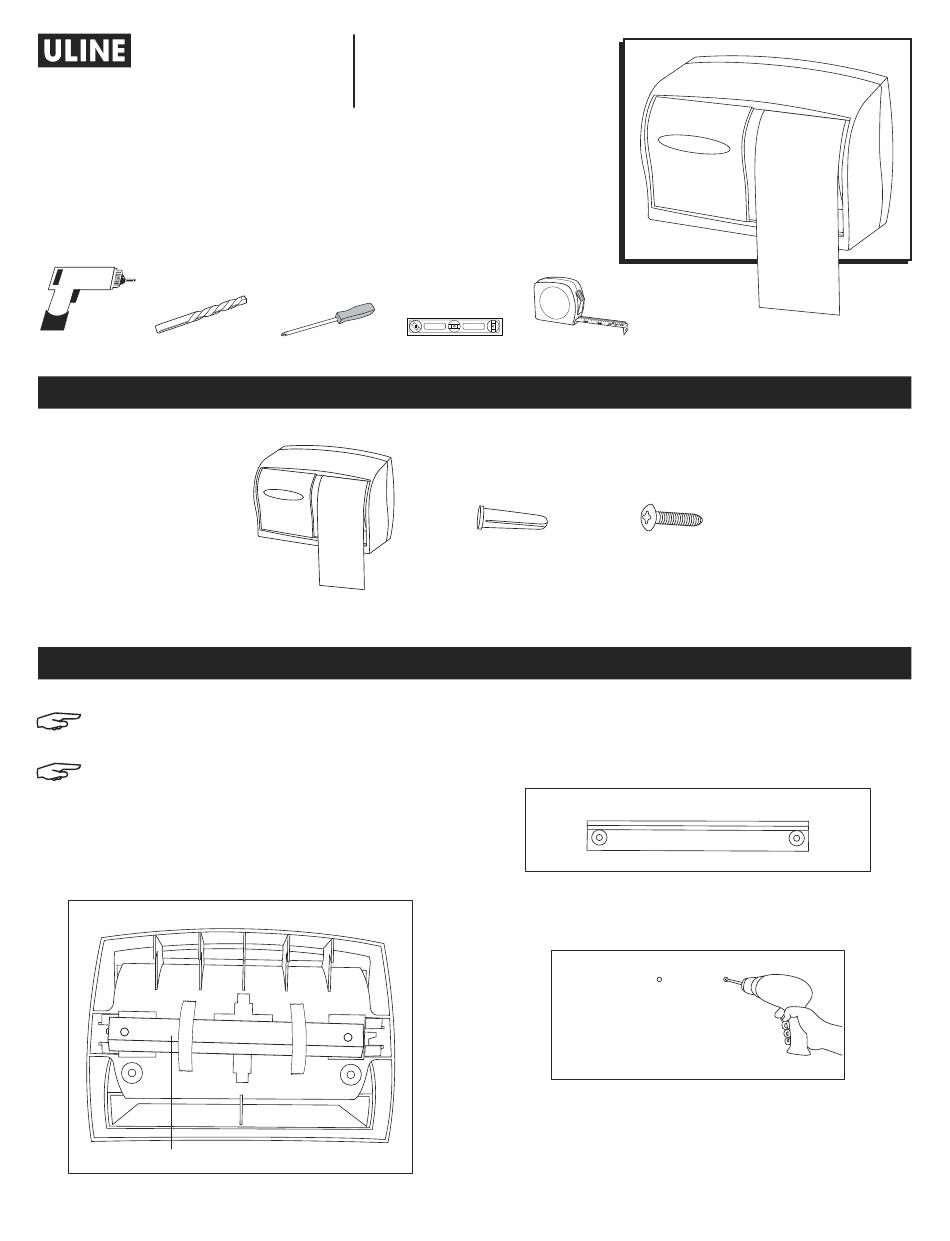

SCOTT CORELESS BATH
TISSUE DISPENSER

TOOLS NEEDED

Drill
Drill Bit
NOTE: Recommended mounting height is 36"
from the floor to bottom of dispenser.
NOTE: Ensure that proper mounting hardware
is used for appropriate wall composition as
enclosed hardware may not be compatible
with wall surface.
1.
Remove mounting bracket from back of dispenser.
(See Figure 1)
Figure 1
Mounting Bracket
PAGE 1 OF 6
1-800-295-5510
uline.com
Phillips Screwdriver
Level

PARTS

Dispenser x 1

MOUNTING INSTRUCTIONS

Tape Measure
Wall Anchor x 4
Screw x 4
2. Hold mounting bracket to ideal mounting location
and mark two holes where screws will be drilled.
(See Figure 2)
Figure 2
3. Drill into wall with appropriate-sized drill bit. Insert
wall anchors if necessary. (See Figure 3)
Figure 3
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
0721 IH-1918

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-1918 and is the answer not in the manual?

Questions and answers

Related Manuals for U-Line H-1918

Summary of Contents for U-Line H-1918

  • Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-1918 1-800-295-5510 uline.com SCOTT CORELESS BATH TISSUE DISPENSER TOOLS NEEDED Drill Drill Bit Phillips Screwdriver Level Tape Measure PARTS Wall Anchor x 4 Screw x 4 Dispenser x 1 MOUNTING INSTRUCTIONS NOTE: Recommended mounting height is 36"...
