Outdoor Fan / Fan Motor

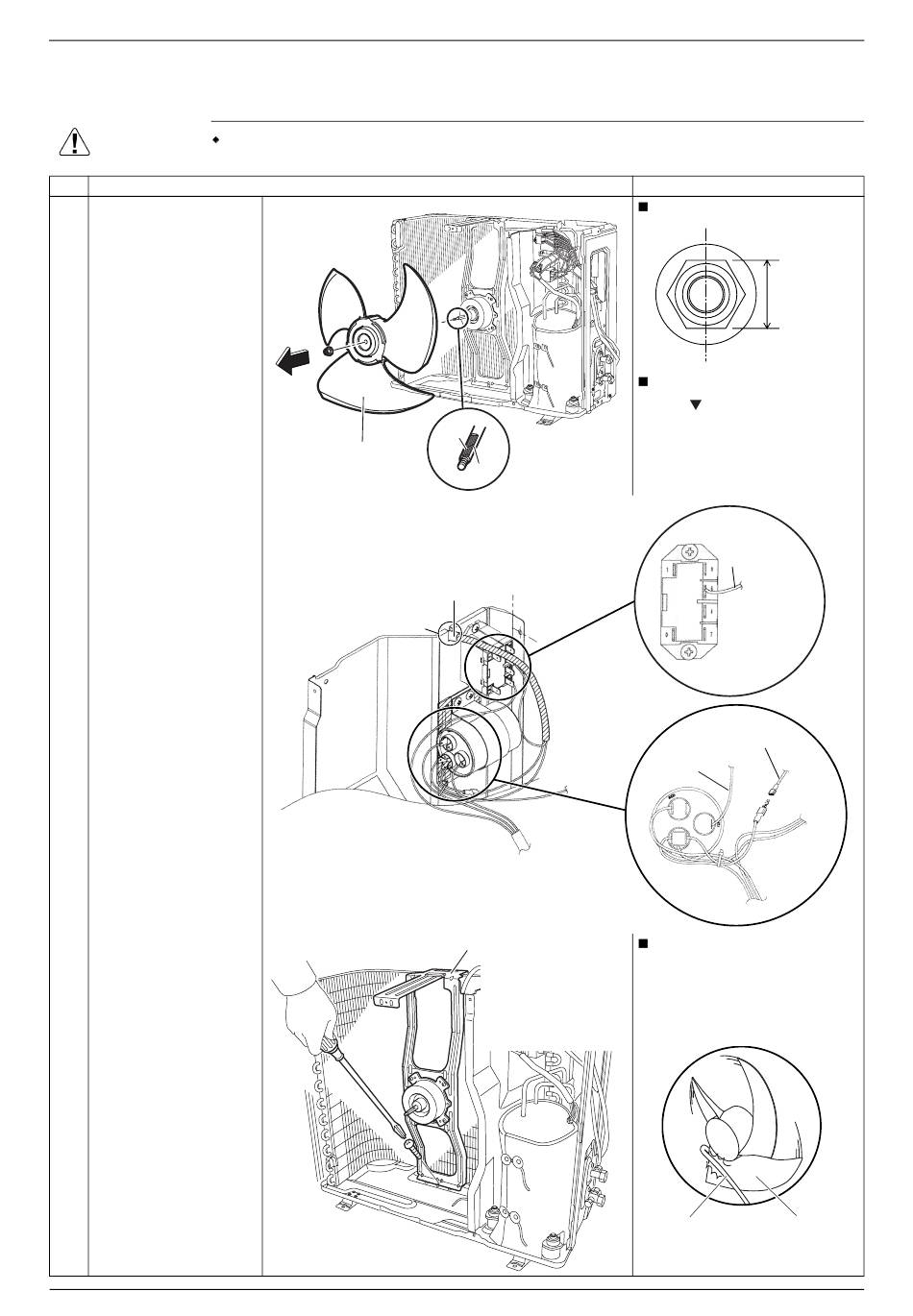

2. Outdoor Fan / Fan Motor
Warning
Step
Remove the nut of the
1
outdoor fan.
Remove the outdoor
2
fan.
3 Release the fan motor
lead wire from the
groove.
4 Pull out the terminal
(black) from the
magnetic contactor
K1M (6).
5 Pull out the terminal
(white) from the
compressor capacitor
(C1R).
Pull out the relay
6
connector (red) to the
fan motor.
7 Remove the screw to
detach the fan motor
fixing frame.
4
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Outdoor fan
Fan motor lead wire
Groove
D-cut
Shaft
(R19244)
(R19250)
Fan motor fixing frame
(R16525)
Si011356EA
Points
Nut size: M6
10 mm
(0.39 inch)
(R18954)
When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
to fan motor:
black
(R19251)
K1M
to fan motor:
red
to fan motor:
white
(R20771)
C1R
Put the lead wire through the
back of the motor when
reassembling so as not to be
entangled with the outdoor
fan.
Lead wire Outdoor fan
(R3249)
Removal Procedure
