Daikin ARM09MV2S Service Manual page 15

Si011356EA

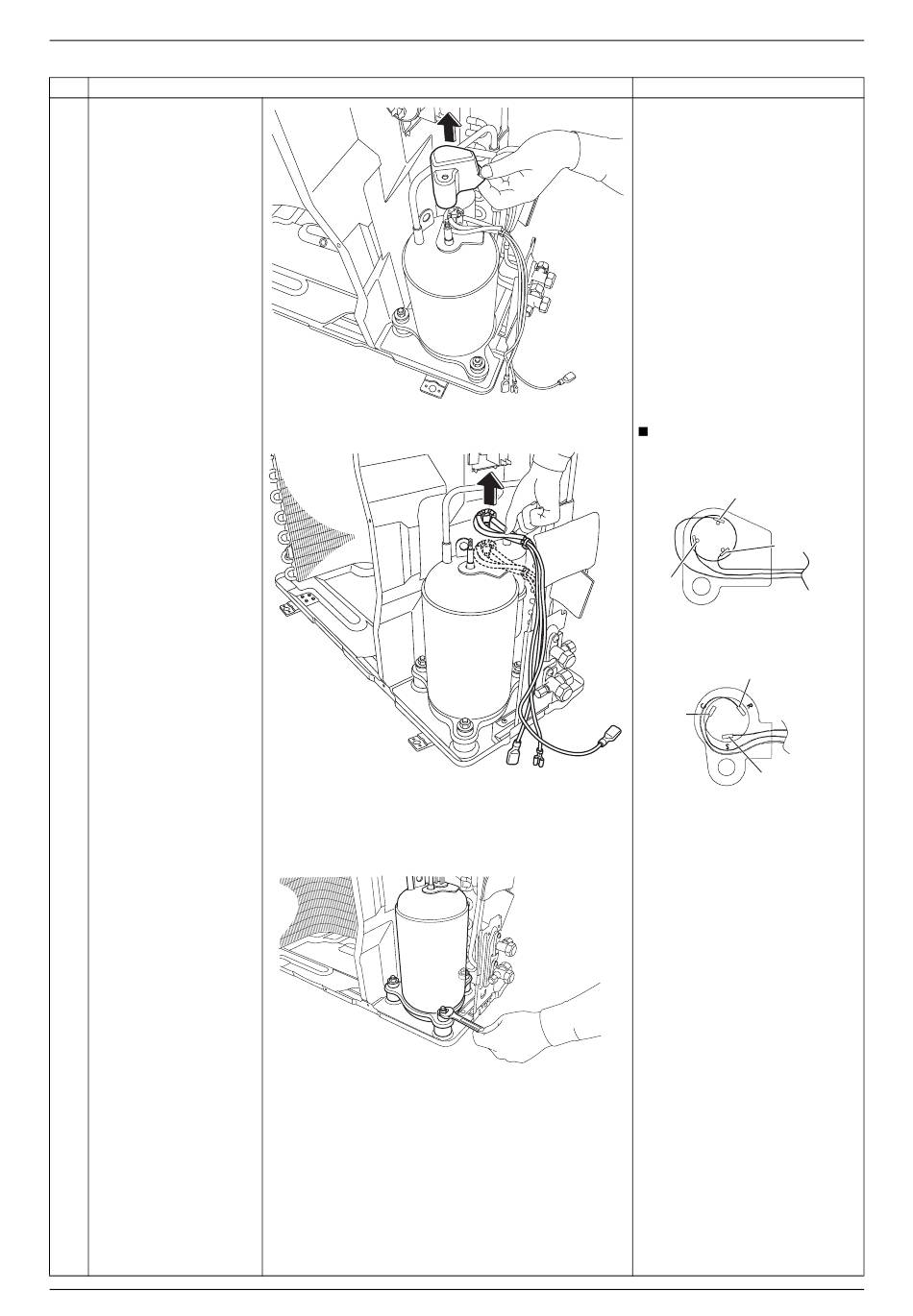

Step
Remove the terminal
2
cover.
Disconnect the
3
compressor lead wires.
4 Remove the 3 nuts of
the compressor.
Removal Procedure
Procedure
Compressor ASSY
Points
(R20749)
Compressor lead wire
For R-410A models
R (V)
C (U)
For R-32 models
R ( V )
C ( U )
(R10484)
S (W): yellow
C (U): blue
R (V): red
(R10485)
S (W)
(R15375)
S ( W )
( R20742 )
13
